| Key Features
|
Intel® Coffee lake-S CPU, 2xLAN, VGA+HDMI+DVI, 6xCOM, 4xUSB3.1?6xUSB2.0, 4xPCIe/PCI, 4xSATA Bay, 4U rackmount, ATX power

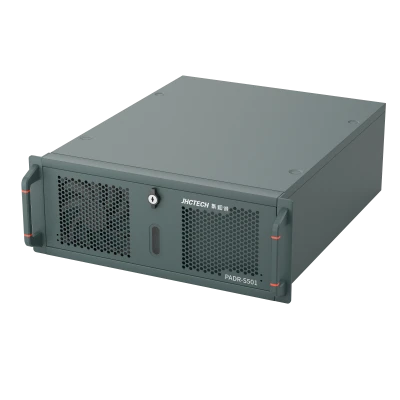

PADR-S501-964 is a standard 19”4U rackmount industrial computer with an Intel H310 chipset powered by Intel® gen 8/9th Coffee lake-S LGA1151 series CPU. Rich functional IO, 4 PCIe/PCI expansion capabilities, excellent air cooling design, power consumption ladder ATX power supply selection, suitable for machine vision, CNC machine tools and factory production line automation and other fields.
Specification
System | CPU+PCH | Intel gen 8/9th Coffee lake-S Core i9/i7/i5/i3/Pentium/Celeron LGA1151 CPU, up to 95W, H310 chipset |
| Memory | 2x288-pin Non-ECC UDIMM , dual channel DDR4 2666MHz, up to 64GB | |
| Expansion | 1xPCIeX16 Gen3.0 slot, 2xPCIeX4 Gen2.0 slot (PCIeX1 signal), 1x32-bit PCI slot 1*M.2 2242/2280 M-Key?Gen2.0 PCIe X2 signal? | |
| Graphics | Intel UHD Graphics, Supports DirectX* 12, OpenGL 4.5 HDMI max. res. 4096*2034@24Hz?VGA max. res. 1920*1200@60Hz, DVI-D max. res. 1920*1200@60Hz | |
| Audio | Realtek ALC897 controller, Support 5.1 channel | |
| LAN | 1xIntel I226V?10M/100M/1000M self-adapt?support WOL 1xIntel I219LM?10M/100M/1000M self-adapt?support WOL | |
| Storage | 4xSATA3, 6.0Gbps interface, the box is designed with 4x3.5 "and 2x2.5" 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage | |
| Rear I/O | 2xLAN(RJ45); 1xHDMI+1xVGA+1xDVI-D; 1xLine out+1xMic 2x3.5mm phone jack 4xUSB3.1 Gen2 (10Gb/s, Type A), 2xUSB2.0(Type A)?support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 1xRS232(DB9 male), optional 1xLPT (DB25 female) | |
| Front I/O | 2xUSB2.0(Type A) | |
| Internal I/O | 8bit DIO, 2xUSB2.0(one Type A, one pin header), 1*LPT pin header, 3*RS232 pin header, 1xF_AUDIO, 1xAMP, 1xLPC, PS/2 wafer, the built-in interface can be elicited through an extension window | |
| Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper | |
| Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W and 750W; TDP: 197.8W?I7-9900K CPU/16G DDR4/256G SSD? | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
OS Support
| Windows7?Windows* 10 Enterprise & IOT Enterprise (64 bit)(CFL-R); Windows* Server 2016 (Intel® Xeon® E) Ubuntu*?SuSe*; Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* ;VxWorks* 7 (CFL-R) | |
Mechanical | Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
| Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan | |
| Color | Granite grey | |
| Dimension | (W*H*D)?430x470x173mm | |
| Net weight | 14.0kg | |
Environmental | Operating Temperature | 0?50? |
| Storage Temperature | -40°C~70°C | |
| Storage Humidity | 10~95%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | |
| EMC/Certification | CE/FCC Class A, 3C |
