| Key Features - Intel gen 8/9th Coffee lake-R LGA1151 CPU+Q370 PCH
- Dual channel 4xDDR4 2666/2400MHz DIMM, up to 128GB
- Intel UHD Graphic, 2xDP+1xHDMI, three independent display
- 1xI219LM Gig. Ethernet+2xI210AT Gig. Ethernet
- 6xUSB3.1?7xUSB2.0 (two front and one built-in), Audio out and Mic
- 2xRS232/422/485, 2xRS232, 8-bit DIO
- 1xPCIeX16 or 2xPCIeX8+2xPCIeX4
- 1xMini PCIe with a SIM card slot, 1xM.2 2280 M-Key
- 4x3.5 "SATA3.0 shock-resistant and anti-vibration hard disk bay
- Standard 19”4U rackmount chassis with high-efficiency air cooling design
- Standard PS2 ATX power supply,300/500/750/1000W
Datasheet |
PADR-S501-I961 | Embedded Box Computer
Intel® Coffee lake-R CPU, 3xLAN, 2xDP+1xHDMI, 4xCOM, 6xUSB3.1?7xUSB2.0, 4xPCIe, 4xSATA Bay, 4U rackmount, ATX power

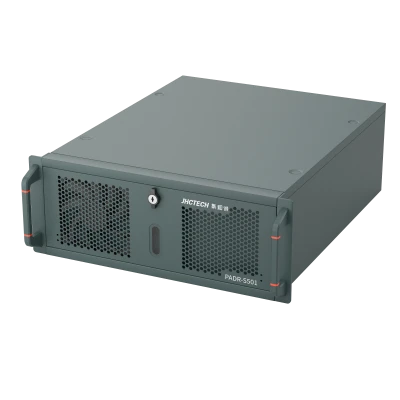

PADR-S501-961 is a standard 19”4U rackmount industrial computer with an Intel Q370 chipset powered by Intel® gen 8/9th Coffee lake-R LGA1151 series CPU. Rich functional IO, 4 PCIeexpansion capabilities, excellent air cooling design, power consumption ladder ATX power supply selection, suitable for machine vision, CNC machine tools and factory production line automation and other fields.
Specification
System | CPU+PCH | Intel® gen 8/9th Coffee-S Core i9/i7/i5/i3 LGA1151 CPU, up to 95W, Q370 chipset |
Memory | 4x288-pin Non-ECC DIMM , dual channel DDR4 2400/2666MHz, up to 128GB |
Expansion | 1xFull size Mini PCIe (PCIe X1+USB) with SIM slot; 1xM.2 2280 M-Key(Gen3, PCIeX4 signal) 2xPCIe X16 slot (PCIe Gen3, support 1xPCIeX16 device, when connecting 2 devices, it automatically switches to 2xPCIe X8) 2xPCIe X8 slot (PCIe Gen3, 2xPCIe X4 signal) |
Graphics | Intel UHD Graphics, Supports DirectX* 12, OpenGL 4.5 HDMI max. res. 4096*2304@24Hz?DP max. res. 4096*2304@60Hz, supports three independent displays |
Audio | Realtek ALC662VD controller, Support 5.1 channel |
LAN | 2xIntel I210AT?10M/100M/1000M self-adapt?support WOL 1xIntel I219LM?10M/100M/1000M self-adapt?support WOL, supports AMT12.0 and iVpro |
Storage | 4xSATA3, 6.0Gbps interface, the box is designed with 4x3.5 "and 2x2.5" 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage |
Rear I/O | 3xLAN(RJ45); 1xHDMI+2xDP; 1xLine out+1xMic 2x3.5mm phone jack 4xUSB3.1 Gen2 (10Gb/s, Type A), 4xUSB2.0(Type A); 2xRS232/422/485 (DB9 male) |
Front I/O | 2xUSB2.0(Type A) |
Internal I/O | 8bit DIO, 1xUSB2.0(Type A), 2xRS232 pin header, 2xUSB3.1 Gen2, PS/2 wafer, the built-in interface can be elicited through an extension window |
Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper |
Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W?750W and 1000W; TDP: TBD |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
Security | Support Infineon TPM2.0(Opt.) |
OS Support | Windows* 10 Enterprise & IOT Enterprise?64-bit?(CFL-R) Windows* Server 2016 (Intel® Xeon® E) Ubuntu*?SuSe*?Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* VxWorks* 7 (CFL-R) |
Mechanical | Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan |
Color | Granite grey |
Dimension | (W*H*D)?430x470x173mm |
Net weight | 14.0kg |
Environmental | Operating Temperature | 0?50? |
Storage Temperature | -40°C~70°C |
Storage Humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
EMC/Certification | CE/FCC Class A, 3C |
