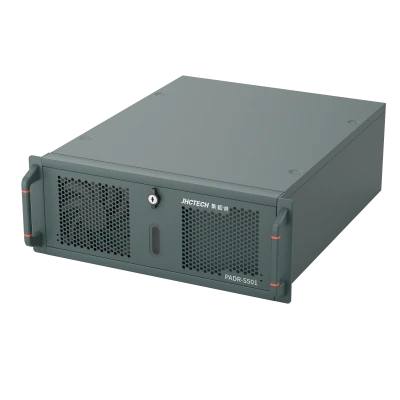

PADR-S501-I953

Key Features

Intel gen 6/7thSKL/KBL-S LGA1151 CPU+H110 PCH
Dual channel 2xDDR4 2133/2400MHz UDIMM, up to 32GB
Intel 9th HD Graphic, VGA+HDMI+DVI-D 3 display
1xI219LM Gig. Ethernet+1xI211ATGig. Ethernet
4xUSB3.0, 5xUSB2.0 (two front and one built-in), Audio out, and Mic
2xRS232/422/485, 4xRS232, optional 1xLPT or 8-bit DIO
1xPCIeX16+1xPCI+2xPCIeX4, 1xFull size Mini PCIe
4x3.5 "SATA3.0 shock-resistant and anti-vibration hard disk bay
Standard 19”4U rackmount chassis with high-efficiency air cooling design
Standard PS2 ATX power supply, 300/500/750W

Datasheet

PADR-S501-I953 | Embedded Box Computer

Intel® SKL/KBL-S CPU, 2xLAN, VGA+HDMI+DVI, 6xCOM, 4xUSB3.0?5xUSB2.0, 4xPCIe/PCI, 4xSATA Bay, 4U rackmount, ATX power

PADR-S501-953 is a standard 19”4U rackmount industrial computer with an Intel H110 chipset powered by Intel® gen 6/7th SKL/KBL-S LGA1151 series CPU. Rich functional IO, 4 PCIe/PCI expansion capabilities, excellent air cooling design, power consumption ladder ATX power supply selection, suitable for machine vision, CNC machine tools and factory production line automation and other fields.

Specification

System	CPU+PCH	Intel gen 6/7th SKL/KBL-S Core i7/i5/i3/Pentium/Celeron LGA1151 CPU, up to 91W, H110 chipset
	Memory	2x288-pin Non-ECC UDIMM , dual channel DDR4 2133/2400MHz, up to 32GB
	Expansion	1xPCIeX16 Gen3.0 slot, 2xPCIeX4 Gen2.0 slot (PCIeX1 signal), 1x32-bit PCI slot 1xFull size Mini PCIe (PCIe X1 signal)
	Graphics	Intel HD Graphics, Supports DirectX 12, OpenGL 4.5 AVC/VC1/MPEG2/HEVC/VP8/JPEG.HW HD codec HDMI max. res. 40962034@24Hz?VGA max. res. 19201200@60Hz, DVI-D max. res. 1920*1200@60Hz
	Audio	Realtek ALC897 or ALC662VD controller, Support 5.1 channel
	LAN	1xIntel I211AT?10M/100M/1000M self-adapt?support WOL 1xIntel I219LM?10M/100M/1000M self-adapt?support WOL
	Storage	4xSATA3, 6.0Gbps interface, the box is designed with 4x3.5 "and 2x2.5" 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage
	Rear I/O	2xLAN(RJ45); 1xHDMI+1xVGA+1xDVI-D; 1xLine out+1xMic 2x3.5mm phone jack 4xUSB3.0 Gen2 (5Gb/s, Type A), 2xUSB2.0(Type A)?support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 1xRS232(DB9 male), optional 1xLPT (DB25 female)
	Front I/O	2xUSB2.0(Type A)
	Internal I/O	8bit DIO, 1xUSB2.0(Type A), 1LPT pin header, 3RS232 pin header, 1xF_AUDIO, 1xAMP, 1xLPC, the built-in interface can be elicited through an extension window
	Switch & LED	Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper
	Power Supply	AC100-240V input, standard ATX power supply 300W, optional 500W and 750W; TDP: TBD
	Watchdog Timer	Watchdog timeout programmable via software 1 to 255 second
	OS Support	Windows 7(SKL-S supports 32-bit and 64-bit, KBL-S supports 64-bit), Windows 10, Linux
Mechanical	Structure and Mounting	Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set
	Cooling	Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan
	Color	Granite grey
	Dimension	(WHD)?430x470x173mm
	Net weight	14.0kg
Environmental	Operating Temperature	0?50?
	Storage Temperature	-40°C~70°C
	Storage Humidity	10~95%@40°C, Non-condensing
	Vibration	5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD)
	Shock	50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?
	EMC/Certification	CE/FCC Class A, 3C
