| Key Features
|
Intel® Tiger lake U CPU?2-CH DDR4?HDMI+DP?2*LAN?4*USB3.2?3/4*COM?1*M.2 E-key / 1*M.2 B-key?1*mSATA / 1*Mini-PCIe?DC 12V or DC 9-36V.

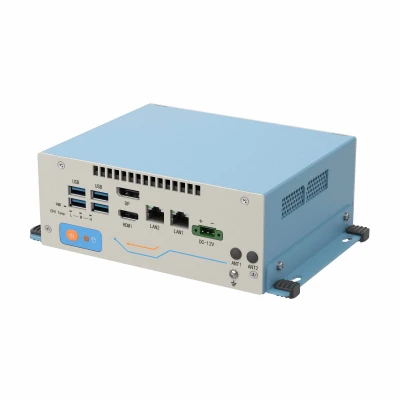

PADR-M102-913 is an embedded box computer, which adopts SGCC box structure design and has a built-in 4-wire debugging fan for silent cooling. Power by Intel® Tiger lake U architecture, adopt the 11th generation Intel® Core TM i3/i5/i7/Celeron series CPU, 4K+8K display, rich IO interface. DC 12V or wide voltage DC 9-36V, small size, beautiful appearance, easy to manufacture, suitable for mobile portable terminals, advertising machines, AGV, medical analysis equipment and other application scenarios.
Specification
| CPU | Intel® Tiger lake U Soc CPU (core i3-1115G4/i5-1135G7/i7-1165G7, Celeron 6305)?TDP 12W/15W/28W |
| Memory | 2*260pin DDR4 SO-DIMM, 3200MHz, up to 64GB |
| Expansion | 1*M.2 E-key 2230 (USB2.0 signal and PCIeX1 signal??supports Wifi5/BT5.0 or 1*M.2 B-key 3052(USB2.0 signal and PCIeX1 signal??with SIM card slot?supports 4G LTE/5G NR 1*Full-Size Mini PCIe (PCIeX1 signal), supporting the functional module of PCIe, can realize the selection with mSATA signal through BIOS |
| Graphics | Intel UHD Graphics or sharp torch® X? Graphics, supports the Intel DL boost deep learning to strengthen technology, DirectX12.1, OpenGL 4.6 and OpenCL 3.0 HDMI max res. 4096*2304@60Hz, DP max res. 7680*4320@60Hz, supports dual independent display |
| Audio | Realtek ALC897 controller, 1*Line out+1*Mic hi-fi audio, supports 5.1 channel |
| LAN | 1*Intel® I219LM Gig. Ethernet?10M/100M/1000M self-adapt, supports WOL, supports iAMT13.0 1*Intel® I226V Gig. Ethernet?10M/100M/1000M self-adapt, supports WOL |
| Storage | 1*2.5 "SATA bay, up to 15mm thick disk; 1*mSATA (optional) |
I/O Port
| 2*RS232/422/485 (DB9), 1*RS232(DB9), 1*8-bit DIO (DB9) optional supports for RS232 4*USB3.2, 2*G-LAN (RJ45) 1*HDMI?1*DP, 1*Line out &Mic(Phone jack) |
| LED | 1*Power LED, 1*HDD LED, 3*CPU temp. LED?Red is warning, Yellow is high, Green is normal) |
| Control Switch | 1*Power button |
| Power Supply | 3-pin ter. connector?DC 12V or DC 9-36V TDP: TBD |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | Windows 11*IoT enterprise, Windows 10*IoT enterprise, Android, SUSE, Ubuntu, Wind River, Red Hat*Enterprise, Wind River VxWorks*7, Yocto |
| Structure | SGCC |
| Color | Silk Grey+Pastel Blue |
| Mounting | Desktop installation |
| Dimension | (W*D*H)?204*148*70mm?Including mounting parts? |
| Height | 1.55 kg |
| Operating Temperature | 0?50?, with wide operating temp. SSD, airflow |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
| EMC/Certification | CE/FCC Class A |
