| Key Features SGCC box design, 4-line temperature-controlled fan silent heat dissipation Intel® Whiskey lake-U Core TM i3/i5/i7/Celeron series CPU 2-Ch DDR4 2400MHz SODIMM, up to 32GB 1*HDMI, 1*DP, supports dual 4K display 1*Line out&Mic?4*USB3.0 2* GbE LAN?3/4*COM?8-bit DIO 1*M.2 2230 E-Key, 1*Mini-PCIe with a SIM card slot, optional mSATA 1*2.5 "SATA bay for storage DC 12V or DC 9-36V
Datasheet |
PADR-M102-910 | Embedded Box Computer
Intel® Whiskey lake U CPU?2-CH DDR4?HDMI+DP?2*LAN?4*USB3.0?3/4*COM?1*M.2 E-key?1*Mini PCIe?DC 12Vor DC 9-36V.

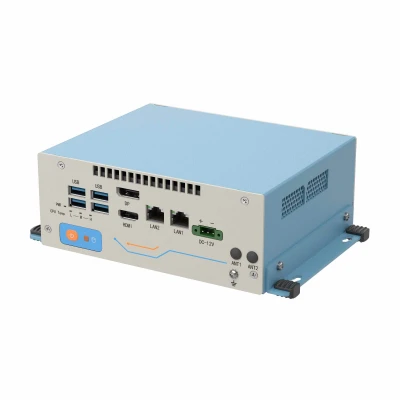

PADR-M102-910 is an embedded box computer, which adopts SGCC box structure design and has a built-in 4-wire debugging fan for silent cooling. Power by Intel® Whiskey lake U architecture, adopt 8th generation Intel® Core TM i3/i5/i7/Celeron U Series CPU, dual 4K display, rich IO interface. DC 12V or wide voltage DC 9-36V, small size, beautiful appearance, easy to manufacture, suitable for mobile portable terminals, advertising machines, AGV, medical analysis equipment and other application scenarios.
Specification
CPU | Intel® Whiskey lake-U CPU, Core I7-8565U 1.8-4.6GHz 4 core 8 threads?Core I5-8265U 1.6-3.9GHz 4 core 8 threads?Core I3-8145U 2.1-3.9GHz 2 cores and 4 threads?Celeron 4305U 2.2GHz dual-core dual-thread |
Memory | 2-Ch DDR4 SO-DIMM, 2400MHz, up to 32GB |
Expansion | 1*M.2 E-key 2230 (USB2.0 signal and PCIeX1 signal??supports Wifi/BT; 1*Full Size Mini PCIe with SIM card slot supports 4G LTE/Wifi/BT?Mini PCIe and mSATA signal selection can be realized through BIOS |
Graphics | Intel® Gen. 9 UHD Graphics?supports dual independent display 1*HDMI max res. 4096*2304@24Hz 1*DP max res. 4096*2304@60Hz |
Audio | Realtek ALC897 controller, 1*Line out+1*Mic hi-fi audio, supports 5.1 channel |
LAN | 1*Intel® I219LM Gig. Ethernet?10M/100M/1000M self-adapt?supports WOL 1*Intel® I226V Gig. Ethernet?10M/100M/1000M self-adapt?supports WOL |
Storage | 1*2.5 "SATA bay, up to 15mm thick disk |
I/O Port | 2*RS232/422/485 (DB9), 1*RS232(DB9), 1*8-bit DIO (DB9) optional supports for RS232 4*USB3.0, 2*G-LAN (RJ45) 1*HDMI?1*DP, 1*Line out &Mic(Phone jack) |
LED | 1*Power LED, 1*HDD LED, 3*CPU temp. LED?Red is warning , Yellow is high, Green is normal) |
Control Switch | 1*Power button |
Power Supply | 3-pin ter. connector?DC 12V or DC 9-36V TDP: 27.87W (I7-8565U, 16GB DDR4, 1*4T SSD) |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 11, Windows 10, SUSE, Ubuntu, Wind River, Red Hat Enterprise |
Structure | SGCC |
Color | Silk Grey+Pastel Blue |
Mounting | Desktop installation |
Dimension | (W*D*H)?204*148*70mm?Including mounting parts? |
Height | 1.55 kg |
Operating Temperature | 0?50?, with wide operating temp. SSD, airflow |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
EMC/Certification | CE/FCC Class A |
