| Key Features SGCC box design, 4-line temperature-controlled fan silent heat dissipation Intel® Elkhart lake Soc CPU 1*DDR4 3200MHz SODIMM, up to 32GB 1*HDMI?1*DP, supports dual 4K display 1*Line out&Mic?4*USB3.1 2* GbE LAN?3/4*COM?8-bit DIO 1*M.2 2230 E-Key /1*M.2 3052 B-key with a SIM card slot 1*2.5 "SATA bay + 1*mSATA for storage DC 12V or DC 9-36V
Datasheet |

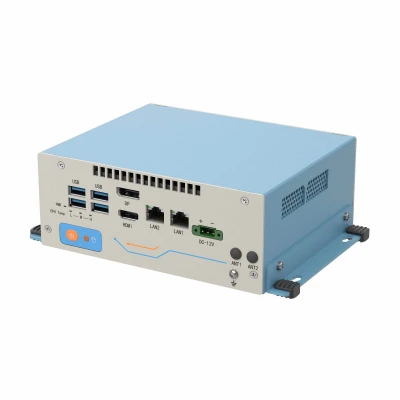

PADR-M102-718 | Embedded Box Computer
Intel® Elkhart lake CPU, 1*DDR4, HDMI+DP, 2*LAN, 4*USB3.1, 3/4*COM, 1*DIO, 1*M.2 E-key / 1*M.2 B-key, 1*mSATA, 1*SATA3.0, DC 12V or DC 9-36V.
PADR-M102-718 is an embedded box computer, which adopts SGCC box structure design and has a built-in 4-wire debugging fan for silent cooling. Power by Intel ® Elkhart lake architecture, adopt Intel® Celeron series processor, dual 4K display, rich IO interface. DC 12V or wide voltage DC 9-36V, small size, beautiful appearance, easy to manufacture, suitable for mobile portable terminals, advertising machines, AGV, medical analysis equipment and other application scenarios.
Specification
CPU | Intel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4 cores 4 threads or Celeron N6210 1.2-2.6GHz dual-core dual-thread |
Memory | 1*260pin DDR4 SO-DIMM, 3200MHz, up to 32GB |
Expansion | 1*M.2 E-key 2230 (USB2.0 signal and PCIeX1 signal??supports Wifi5/BT5.0 or 1*M.2 B-key 3052(USB2.0 signal and PCIeX1 signal??with SIM card slot?supports 4G LTE/5G NR |
Graphics | Intel Gen10 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8? HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9 HDMI2.0 max res. 4096*2304@60Hz, DP max res. 4096*2160@60Hz?support dual independent display |
Audio | Realtek ALC897 controller, 1*Line out+1*Mic hi-fi audio, supports 5.1 channel |
LAN | 2*Realtek 8111H?10M/100M/1000M self-adapt?supports WOL |
Storage | 1*2.5 "SATA bay, up to 15mm thick disk; 1*mSATA (with USB2.0 signal) |
I/O Port | 2*RS232/422/485 (DB9), 1*RS232(DB9), 1*8-bit DIO (DB9) optional supports for RS232 4*USB3.1, 2*G-LAN (RJ45) 1*HDMI?1*DP, 1*Line out &Mic(Phone jack) |
LED | 1*Power LED, 1*HDD LED, 3*CPU temp. LED?Red is warning , Yellow is high, Green is normal) |
Control Switch | 1*Power button |
Power Supply | 3-pin ter. connector?DC 12V or DC 9-36V TDP: TBD |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 10/Windows 11 64 bit, SUSE, Ubuntu, Wind River, Linux |
Structure | SGCC |
Color | Silk Grey+Pastel Blue |
Mounting | Desktop installation |
Dimension | (W*D*H)?204*148*70mm?Including mounting parts? |
Height | 1.55 kg |
Operating Temperature | 0?50?, with wide operating temp. SSD, airflow |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
EMC/Certification | CE/FCC Class A |
