| Key Features - SGCC box design, 4 - line temperature - controlled fan silent heat dissipation
- Intel® CoreTM i3/i5/i7/Celeron U CPU
- 2*DDR4 2400MHz SODIMM, Up to 32GB
- 1*HDMI?1*DP?Support dual 4K display
- 1*Line out&Mic?4*USB3.0
- 2* GbE LAN?3/4*COM ?8-bit DIO
- 1*2.5”SATA tray for storage
- 1*M.2?2230 E-Key, 1*Mini-PCIe with SIM Slot
- DC 12V Wide Power Input,Optional 9~36V
Datasheet |

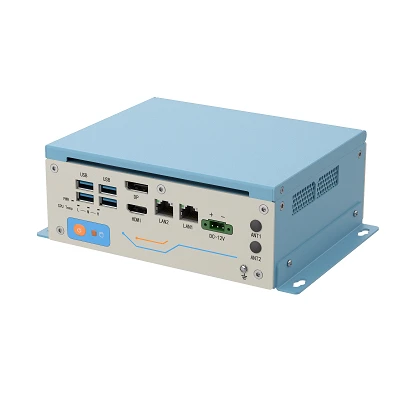

PADR-M101 | Embedded Box Computer
Intel® Whiskey lake U CPU?2-CH DDR4?1*HDMI?1*DP?2*LAN?4*USB3.0?3/4*COM?1*M.2 E-key?1*F-Mini PCIe? DC 12V
PADR-M101 is a new type of embedded box computer launched by JHCTECH.It‘sequippedwiththeIntel® WhiskeylakeUarchitecture.It powered by the 8th generation Intel® coreTMi3/i5/i7/CeleronUseries processors,2-ChDDR4,2*SO-DIMM up to 32GB.1*HDMI,1*DP,dual 4Kdisplayinterface,1*Lineout&Mic highfidelityaudiointerface. It has not only rich IO interfaces but also multiple extension interfaces, 1*M.2 support NGFF-2230, 1*Mini PCIe with 1*SIM card slot, support 3G/4G/Wifi/ BT/ GPRS wireless functions, can be selected in BIOS for mSATA, 1*SATA3.0 for storage. DC 12V power supply, optional DC 9~36V wide voltage. Small size, exquisite appearance, easy to manufacture, mobile portable terminal, advertising machine, AGV, medical analysis equipment, and other small sizes, low-cost industries.
Specification
System | CPU | | Celeron 4305U | Core I3-8145U | Core I5-8265U | Core I7-8565U |
Cores | 2 | 2 | 4 | 4 |
Threads | 2 | 4 | 8 | 8 |
Frequency(GHz) | 2.2 | 2.1-3.9 | 1.6-3.9 | 1.8-4.6 |
System Memory | Dual channel DDR4 2400MHz SO-DIMM , up to 32GB |
Expansion | 1* M.2 E-key 2230, with PCIe X1+USB2.0 signal, expansion of Wifi/BT module |
1* Full Mini PCIe with 1*SIM card slot, support 3G/4G/Wifi/ BT/ GPRS wireless functions, can be selected in BIOS for mSATA |
Display | Intel® gen.9 UHD Graphics, supports dual independent display 1*HDMI max. res. 4096* 2304@24hz |
1*DP max. res. 4096* 2304@60hz |
Aduio | Realtek ALC662VD controller, 1*Line out&Mic high fidelity audio interface, support 5.1 channel |
LAN | 2*Intel® I210AT PCIe Gig. Ethernet?10/100/1000Mbps adaptive |
Storage | 1*2.5”SATA port?can support 15mm SSD/HDD |
I/O ports | 2* RS232/422/485 (DB9), 1*RS232(DB9), 1*8-bit DIO (DB9) optional RS232 |
4*USB3.0, 2*G-LAN (RJ45)? |
1*HDMI?1*DP, 1*Line out &Mic(Phone jack?optional |
LED | 1*Power LED, 1*HDD LED, 3*CPU temp. LED?Red is warning , Yellow is high, Green is normal) |
Control SW | 1*Power button |
Power Supply | 3-pin ter. connector?DC 12V , 9~36V wide voltage power supply is optional (2.5 "SSD/HDD is not supported if wide voltage power supply is selected) |
Consumption:TDP 27.83W (I7-8565U, 16GB DDR , 1*4T SSD) |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 10, SUSE, Ubuntu, Wind River, Red Hat Enterprise |
Mechanical | Structure | SGCC |
Color | Silk grey+Pastel Blue |
Mounting | Desktop Mounting |
Dimension | (W*D*H)?200*140*65.5mm |
Net weight | 1.51KG |
Environ-mental | Operating temperature | -0?~50??with wide operating temp. SSD, airflow |
Storage Temperature | -40?~+85? |
Storage Humidity | 10~90%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working(SSD) |
1grms/5~500Hz/random/in working(HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
Certification/EMC | CE/FCC Class B |
