Open Frame Panel Computer

www.alvasta-tech.com / Industrial / Winmate / Industrial Panel PC and HMI / Industrial Panel PCs (Resistive Touch) / Open Frame Panel Computer /

Open Frame Panel Computer

OVERVIEW

Winmate open-frame panel computer incorporates a touchscreen display into the same enclosure as its internal components such as the processor, hard drive or solid-state drive, motherboard, I/O ports, and power supply. The Winmate open-frame panel computer design delivers high-end performance coupled with a compact footprint, built to withstand temperature fluctuations, extreme heat, or cold, frequent in industrial environments. It is optimized for rugged environments and possesses such qualities as resistance against water and humidity, dust, grease, shock, and vibration. Winmate Open frame panel PCs feature a wide variety of mounting options, including panel and VESA mount types. They can be mounted into an enclosure, onto a machine, or inside a control cabinet. The panel mount is the most frequent mounting style in factory automation applications.
Winmate understands the demands of these fast-paced, rugged environments and has designed a series of industrial-grade HMI that deliver on performance, functionality, and design to enable increased productivity and efficiency on the factory floor. Winmate's multi-touch series goes beyond the standard industrial panel computers with elegant, edge-to-edge design, rugged construction, powerful performance, a full line-up of I/O options, and flexible mounting options. Our advanced multi-touch panel PCs maximize performance, whether used for a control room, machine automation, assembly line monitoring, user terminals, or inside heavy machinery.

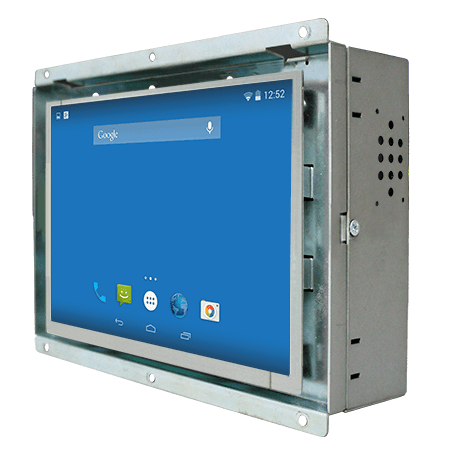

R05FA3S-OFD 15.7" NXP i.MX6 Open Frame Panel PC FEATURES 5.7'' 640 x 480 TFT LCD with resistive touch screen NXP A9 i.MX6 Dual Core 1 GHz (Optional Quad Core) Onboard LPDDR3 1 GB (Optional for 2 GB) Onboard 16 GB eMMC Flash 1 x USB 2.0, 1 x RS-232/422/485, 1 x Micro SD Slot, 1 x Mini USB, 1 x Micro HDMI (Optional) PoE function (Optional) Fanless and ultra-low power consumption	R06IE3S-OFA1 6.5" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 6.5” TFT SVGA LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0	R06IB3S-OFA 16.5" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 6.5" TFT SVGA LCD Intel® Celeron® Bay Trial-M N2930 1 x SO-DIMM, max. 8 GB DDR3L 1600 Integrated VGA, Dual-channel 24-bit LVDS, HDMI 2 x Gigabit Ethernet 1 x SATA, 1 x USB 2.0,1 x USB 3.0, 1 x HDMI, 2 x COM, 1 x Mini PCIe slot

W07IE3S-OFT1 7" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 7” TFT SVGA LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0	W07IB3S-OFT 17" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 7" TFT SVGA LCD Intel® Celeron® Bay Trial-M N2930 1 x SO-DIMM, max. 8 GB DDR3L 1600 Integrated VGA, Dual-channel 24-bit LVDS, HDMI 2 x Gigabit Ethernet 1 x SATA, 1 x USB 2.0, 1 x USB 3.0, 1 x HDMI, 2 x COM, 1 x Mini PCIe slot	W07FA3S-OFT 17" NXP i.MX6 Open Frame Panel PC FEATURES 7" 1024 x 600 TFT LCD with resistive touch screen, Open Frame Panel PC NXP A9 i.MX6 Dual Core 1 GHz (Optional for Quad Core) Onboard LPDDR3 1 GB (Optional for 2 GB) Onboard 16 GB eMMC Flash 1 x USB 2.0, 1 x RS-232/422/485,1 x Micro SD Slot, 1 x Mini USB, 1 x Micro HDMI (Optional) PoE function (Optional) Fanless and ultra-low power consumption

R08IE3S-OFU1 8.4" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 8.4” TFT SVGA LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0	R08IB3S-OFU 18.4" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 8.4" TFT SVGA LCD Intel® Celeron® N2930 Quad Core™ Processor SO-DIMM DDR3L 1600, max. 8 GB Integrated VGA, Dual-channel 24-bit LVDS, HDMI (Optional) 2 x Gigabit Ethernet 1 x SATA, 1 x USB 2.0, 1 x USB 3.0, 1 x HDMI (Optional), 2 x COM, 1 x Mini PCIe slot	W10IE3S-OFH2 10.1" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 10.1” TFT LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0

W10IB3S-OFH2 10.1" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 10.1" TFT LCD Intel® Celeron® Bay Trial-M N2930 SO-DIMM DDR3L 1600, max. 8 GB Integrated VGA, Dual-channel 24-bit LVDS, HDMI (Optional) 2 x Gigabit Ethernet 1 x SATA, 1 x USB 2.0, 1 x USB 3.0, 1x HDMI (Optional), 2 x COM, 1 x Mini PCIe slot	R10IE3S-OFT2 10.4" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 10.4” TFT XGA LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0	R10IE3S-OFP1 10.4" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 10.4” TFT SVGA LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0

R10IB3S-OFP1 10.4" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 10.4" TFT SVGA LCD Intel® Celeron® Bay Trial-M N2930 Integrated VGA, 24 bit Dual-channel LVDS, DVI 2 x Gigabit Ethernet 1 x SATA II, 3 x COM, 1 x USB 2.0, 1 x USB 3.0, 2 x Mini PCIe slot	R10IB3S-OFT2 10.4" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 10.4" TFT XGA LCD Intel® Celeron® N2930 Quad Core™ Processor SO-DIMM DDR3L 1600, max. 8 GB Integrated VGA, Dual-channel 24-bit LVDS, HDMI 2 x Gigabit Ethernet 1 x SATA, 1 x USB 2.0, 1 x USB 3.0, 1 x HDMI (Optional), 2 x COM, 1 x Mini PCIe slot	R12IE3S-OFM2 12.1" Intel® Celeron® N6210 Open Frame Panel PC FEATURES 12.1” TFT LCD Intel® Celeron® Elkhart Lake N6210 Processor 1 x SO-DIMM, max. 16GB DDR4 2 x Gigabit Ethernet Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 1, 4 x USB 2.0


R12IB3S-OFM2 12.1" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 12.1" TFT LCD Open Frame Panel PC Intel® Bay Trail-M Quad Core™ Celeron® N2930 SO-DIMM DDR3L 1600, max. 8 GB Integrated VGA, Dual-channel 24-bit LVDS, HDMI (Optional) 2 x Gigabit Ethernet 1 x SATA, 1 x USB 2.0, 1 x USB 3.0, 1 x HDMI (Optional), 2 x COM, 1 x Mini PCIe slot	R15IT7T-OFC3 15” Intel® Core™ i5 (Tiger Lake) Open Frame Panel PC FEATURES Intel® Core™ Tiger Lake UP3 i5-1135G7?Without vPro?/ Intel® Core™ Tiger Lake UP3 i5-1145G7E?With vPro? 1024x768 Resolution Multi display supports DP / HDMI / LVDS / eDP panel interface Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports 12V Single Voltage Power Input	R15IP7T-OFC3 15" Intel® Pentium® N4200 Open Frame Panel PC FEATURES Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz Flexible storage devices, one 2.5-inch HDD and one SSD socket Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports 12 V DC Power input DP Support 4096 x 2160 @ 60 Hz HDMI Support 3840 x 2160 @ 30 Hz

R15IF7T-OFC3 15" Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) Open Frame Panel PC FEATURES 15” 1024 x 768 Resolution Intel® 9th Gen. Core™ i3/i5/i7 Processor (Coffee Lake Refresh) Flexible storage devices, one 2.5-inch HDD and one SSD Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports 12 V DC Power input DP Support 4096 x 2304 @ 60 Hz HDMI Support 4096 x 2304 @ 24 Hz	R15IB7T-OFC3 15" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 15" TFT XGA LCD Intel® Bay Trail-M Quad Core™ Celeron® N2930 1 x SO-DIMM DDR3L 1600, max. 8 GB Integrated VGA, 24 bit Dual-channel LVDS, DVI Integrated Dual Broadcom I210AT GbE Controller 1 x SATA II, 3 x COM, 3 x USB 2.0,1 x USB 3.0, 2 x Mini PCIe slot	R15FA3S-OFC3 15" NXP i.MX6 Open Frame Panel PC FEATURES 15'' 1024 x 768 TFT LCD with resistive touch screen NXP i.MX6 Dual Core 1 GHz (Optional Quad Core) Onboard LPDDR3 1 GB (Optional for 2 GB) Onboard 16 GB eMMC Flash 1 x USB 2.0,1 x RS-232/422/485, 1 x Micro SD Slot, 1 x Mini USB, 1 x Micro HDMI (Optional) PoE function (Optional) Fanless and ultra-low power consumption

R15IK7T-OFC3 15" Intel® Core™ i3/i5/i7 (Kaby Lake) Open Frame Panel PC FEATURES 15” 1024 x 768 Resolution open pc frame 7th Gen. Intel® Core™ i3/i5/i7 Kaby Lake Processor Flexible storage devices, one 2.5-inch HDD and one SSD Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports 12 V DC Power input DP Support 4096 x 2304 @ 60 Hz HDMI Support 4096 x 2304 @ 24 Hz	W15IT7T-OFA2 15.6” Intel® Core™ i5 (Tiger Lake) Open Frame Panel PC FEATURES Intel® Core™ Tiger Lake UP3 i5-1135G7?Without vPro?/ Intel® Core™ Tiger Lake UP3 i5-1145G7E?With vPro? 1366X768 Resolution Multi display supports DP / HDMI / LVDS / eDP panel interface Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports 12V Single Voltage Power Input	W15IP7T-OFA2 15.6" Intel® Pentium® N4200 Open Frame Panel PC FEATURES Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz Flexible storage devices, one 2.5-inch HDD and one SSD socket Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports 12 V DC Power input DP Support 4096 x 2160 @ 60 Hz HDMI Support 3840 x 2160 @ 30 Hz

W15IK7T-OFA2 15.6” Intel® Core™ i3/i5/i7 (Kaby Lake) Open Frame Panel PC FEATURES 15.6” 1366 x 768 Resolution Intel® 7th Generation Core™ i3/i5/i7 processor (Kabylake) Flexible storage devices, one 2.5-inch HDD and one SSD Multiple I/Os, Two Serial Ports and Four USB 3.0 Ports 12V DC Power input DP Support 4096x2304@60Hz HDMI (Optional) Support 4096x2304@24Hz	W15IB7T-OFA2 15.6" Intel® Celeron® N2930 Open Frame Panel PC FEATURES 15.6" TFT XGA LCD Intel® Celeron® Bay Trial-M N2930 SO-DIMM DDR3L 1600, max. 8 GB Integrated VGA, 24 bit Dual-channel LVDS, DVI Integrated Dual Broadcom BCM57780 GbE Controller 1 x SATA II, 3 x COM, 3 x USB 2.0, 1 x USB 3.0, 2 x Mini PCIe slot	R17IT7T-OFM1 17” Intel® Core™ i5 (Tiger Lake) Open Frame Panel PC FEATURES Intel® Core™ Tiger Lake UP3 i5-1135G7?Without vPro?/ Intel® Core™ Tiger Lake UP3 i5-1145G7E?With vPro? 1280x1024 Resolution Multi display supports DP / HDMI / LVDS / eDP panel interface Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports 12V Single Voltage Power Input

R17IP7T-OFM1 17" Intel® Pentium® N4200 Open Frame Panel PC FEATURES Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz Flexible storage devices, one 2.5-inch HDD and one SSD socket Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports 12 V DC Power input DP Support 4096 x 2160 @ 60 Hz HDMI Support 3840 x 2160 @ 30 Hz	R17IF7T-OFM1 17" Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) Open Frame Panel PC FEATURES 17” 1280 x 1024 Resistive touchscreen Intel® 9th Gen. Core™ i3/i5/i7 Processor (Coffee Lake Refresh) Flexible storage devices, one 2.5-inch HDD and one SSD Multiple I/Os, 2x Serial Ports, 4x USB 3.2 Gen. 1 Ports 12V DC Power input DP Support 4096 x 2304 @ 60Hz HDMI Support 4096 x 2304 @ 24Hz	R17IK7T-OFM1 17" Intel® Core™ i3/i5/i7 (Kaby Lake) Open Frame Panel PC FEATURES 17" 1280 x 1024 Resistive touchscreen 7th Gen. Intel® Core™ i3/i5/i7 Processor (Kaby Lake) Flexible storage devices, one 2.5-inch HDD and one SSD Multiple I/Os, 2x Serial Ports, 4x USB 3.0 Ports 12V DC Power input DP Support 4096 x 2304 @ 60Hz HDMI Support 4096 x 2304 @ 24Hz
