| Key Features
|
Intel® Tiger lake U Soc CPU module, supports single-channel DDR4 3200 MHz, up to 32GB. DC IN 12V.

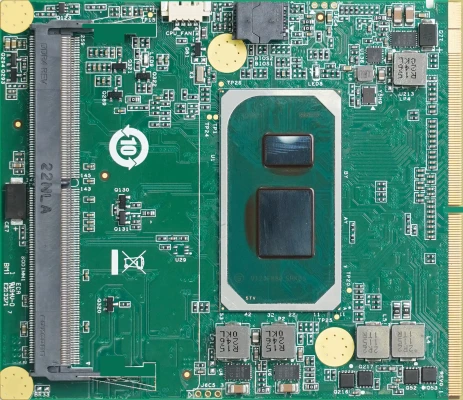

NODE-I914 powered by Intel® Tiger lake U Soc CPU, supporting single-channel DDR4 3200Mhz memory, up to 32GB. The size of the motherboard module is thin and small, which is an economical product with low power consumption and flexible expansion, suitable for industrial automation, security, environmental protection, logistics and warehousing management applications.
Specification
CPU | CPU | i7-1165G7 | i5-1135G7 | i3-1115G4 | Celeron 6305E | |
Cores | 4 | 4 | 2 | 2 | ||
Total Threads | 8 | 8 | 4 | 2 | ||
Frequency | 2.8~4.7 GHz | 2.4~4.2 GHz | 3.0~4.1 GHz | 1.8 GHz | ||
TDP-up | 28W | 28W | 28W | 15W | ||
Memory | Single channel DDR4 260-pin SO-DIMM, up to 3200MHz, 32GB | |||||
Graphics | Intel® Iris® X? Graphics, Supports DirectX12.1 OpenGL 4.6 and OpenCL 3.0 HDMI 2.0 max. res. 4096x2304@60Hz, DP 1.4 max. res. 7680x4320@60Hz, eDP max. res. 4096x2304@60Hz | |||||
MXM 3.1 Goldfinger (281-Pin) | DDI | 2 | ||||
eDP | 1 | |||||
USB3.2 | 4 | |||||
USB2.0 | 10 | |||||
PCIeX1 | 4 | |||||
PCIeX2 | 1 | |||||
PCIeX4 | 1 | |||||
eSPI | 1 | |||||
SATA(PCIeX1) | 2 | |||||
HDA | 1 | |||||
SM BUS | 1 | |||||
| Legacy IO | 1 |
RTC | 1 | |
UART | 4 | |
GPIO | 3 | |
F-Panel: Power SW/Reset/PW-LED/HDD-LED | ||
Power Supply | DC IN 12V | |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
OS Support | Windows 10 64bit, Windows 11 64bit, SUSE, Ubuntu, Wind River, Linux | |
Dimension | (W*H)?95*82mm | |
Operating temperature | 0?60? | |
Storage Temperature | -40°C~85°C | |
Storage Humidity | 10~90%@40°C, Non-condensing | |
EMC/Certification | CE/FCC Class A | |
