| Key Features
|

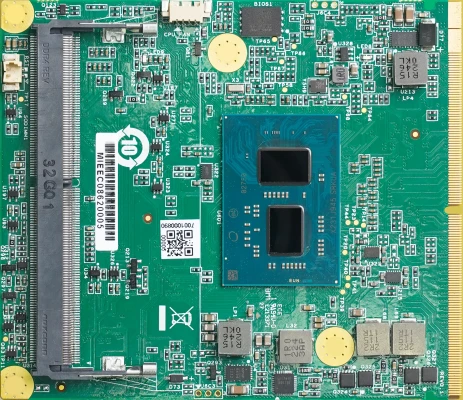

NODE-I719 powered by Intel Elkhart lake Soc CPU, supports single-channel DDR4 3200MHz memory, up to 32GB. The size of the motherboard module is thin and small, which is an economical product with low power consumption and flexible expansion, suitable for industrial automation, security, environmental protection, logistics and warehousing management applications.
Specification
CPU | CPU | Celeron J6412 | Celeron N6210 |
|
| |
Cores | 4 | 2 |
|
| ||
Total Threads | 4 | 2 |
|
| ||
Frequency | 2.0~2.6 GHz | 1.2~2.6 GHz |
|
| ||
TDP-up | 10W | 6.5W |
|
| ||
Memory | Single channel DDR4 2*260-pin SO-DIMM, up to 3200MHz, 32GB | |||||
Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors Support for DirectX12.1, OpenGL and OpenCL DP 1.4 max. res. 4096x2160@60Hz, eDP max. res. 4096x2160@60Hz | |||||
MXM 3.1 Goldfinger (281-Pin)
| DDI | 2 | ||||
eDP | 1 | |||||
PCIeX1 | 4 | |||||
PCIeX2 | 1 | |||||
USB3.1 | 4 | |||||
USB2.0 | 10 | |||||
SATA(PCIeX1) | 2 | |||||
eSPI | 1 | |||||
HDA | 1 | |||||
SM BUS | 1 | |||||
Legacy IO
| 1 | |||||
| RTC | 1 |
UART | 4 | |
GPIO | 3 | |
F-Panel: Power SW/Reset/PW-LED/HDD-LED | ||
Power Supply | DC IN 12V | |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
OS Support | Windows 10 64bit, Windows 11 64bit, SUSE, Ubuntu, Wind River, Linux | |
Dimension | (W*H)?95*82mm | |
Operating temperature | 0?60? | |
Storage Temperature | -40°C~85°C | |
Storage Humidity | 10~90%@40°C, Non-condensing | |
EMC/Certification | CE/FCC Class A | |
