Discovers and visualizes network devices and physical connections automatically
Central management of configurations and firmware for Moxa devices
Multiple options for events and notifications with self-defined threshold and duration
Comprehensive reports, including inventory, traffic, and availability reports
Provides RESTful API and web widget to embed MXview into industrial applications
Supports third-party Ethernet switches through SNMP MIB files
Generates OPC 2.0 compliant tags automatically to integrate with SCADA/HMI applications

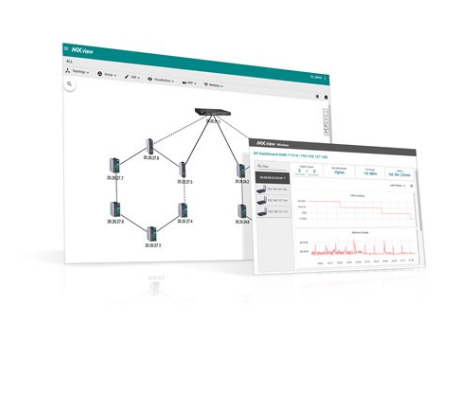

Dynamic topology view shows the status of wireless links and connection changes at a glance
Visual, interactive roaming playback function to review the roaming history of clients
Detailed device information and performance indicator charts for individual AP and client devices
Introduction
Moxa’s MXview network management software is designed for configuring, monitoring, and diagnosing networking devices in industrial networks. MXview provides an integrated management platform that can discover networking devices and SNMP/IP devices installed on subnets. All selected network components can be managed via a web browser from both local and remote sites—anytime and anywhere.
In addition, MXview supports the optional MXview Wireless add-on module . MXview Wireless provides additional advanced functions for wireless applications to monitor and troubleshoot your network, and help you minimize downtime.
Visualization
Discovers up to 2,000 Moxa devices and SNMP/ICMP devices within scan range
Visualization of redundant link status and device roles of network redundancy protocols
Visualization of graphic VLAN groups
Security view for the security status of network devices with industrial security standard
Displays third-party device icons
A network management dashboard to view the network status quickly
Visualization of network traffic loading with color-coded links
Device front panel visualization, including ports and LED indicators
Visualization of managed PoE device power consumption
Wireless device dashboard that shows dynamic AP-client relationships and performance indicator charts for wireless devices
Roaming playback to review a client's roaming status
Network Diagnostics and Event Notification
Detect problems in real-time with SNMP trap/inform, or periodic polling
Generate trend graphs to track bandwidth utilization and error packet rate statistics, accurate to four decimal places
Supports Syslog server for centralized message management
Configurable event notification alarms sent through email, Microsoft Teams, Slack, MXview ToGo. and SNMP trap, or locally through program notification, message box, and audio alerts
Multiple options for events and notifications with self-defined threshold and duration
Generate OPC 2.0 compliant tags automatically to integrate with SCADA/HMI applications
Group health OPC tag represents entire network status
Real-time device availability monitoring
Supports third-party Ethernet switches through MIB files
Collaborate with third-party NMS through SNMP traps
Provides RESTful API and web widget for integrating MXview into the existing system
Comprehensive Reports
Maintain device availability reports and record for up to 90 days
Generate an inventory report for each device on the network
Compile comprehensive device properties report
Generate network traffic trend reports
Centralized Configuration and Firmware Management
Manage device firmware from a single platform
In one click, back up the configuration of multiple devices and the entire MXview database, including topology, job scheduling, events, and device properties
Scheduling for periodic configuration backup
Save history of configuration changes
Comparison tool for checking differences between two configurations
Mobile App for Network Monitoring
MXview ToGo mobile app for remote monitoring and notification—anytime, anywhere
Smart Device Identification with QR Code enhances operational efficiency
Device Locator with mobile app reduces searching time at field sites
