Hardening device connectivity solutions

Improving energy efficiency to reduce cost remains a priority for industrial applications.
Monitoring power quality, energy consumption, and device status provides operators with the necessary information to maximize power usage. With more power devices and systems now connected to networks, developing a reliable connection between your power devices and energy management systems is crucial. To ensure that system operators receive power-related data on time, Moxa has a wide range of products, including protocol gateways, remote I/Os, and Ethernet media converters, to help you enable reliable and secure connectivity in a variety of power monitoring applications.

Easy, Reliable, and Secure Device Connectivity

EMI Immunity

It’s important to maintain stable connections in the extreme environments where power devices are placed. Featuring fiber connectivity, serial isolation, and dual power inputs, our device connectivity solutions endure EMI to minimize interruptions.

Easy Deployment

Don’t let mass connected devices wear you down. Our device connectivity solutions support Ethernet cascading, mass configuration tools, and efficient protocol troubleshooting, making deployment easy for you.

Enhanced Security

To ramp up your edge device security, our device connectivity solutions come with embedded security functions such as user authentications and HTTPS connection, helping you reduce the risk of unwanted access.

Enabling Your Power Monitoring Applications

Power Quality Moitoring

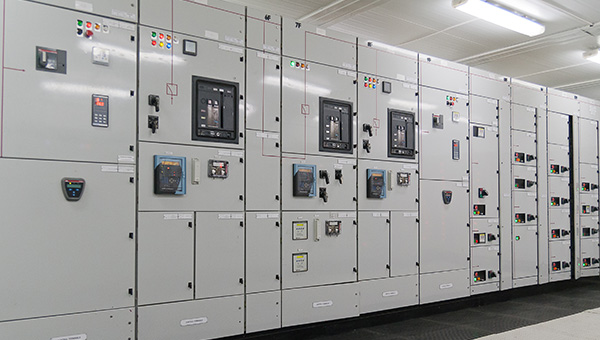

Power devices deployed nearby main power sources, such as switchgears, automated transfer switches (ATS), and uninterrupted power supply (UPS), require constant monitoring to ensure the power quality is at an acceptable level. This case study describes how Moxa’s solution enabled our client’s power quality monitoring applications in their data centers.

Download solution

Power Consumption Monitoring

Enhancing power usage efficiency and reducing energy are many business' main goals. Monitoring the operational status of your power distribution unit (PDU) gives operators more information about their daily power consumption. Moxa helped our clients to enable reliable connectivity to ensure the transmission of accurate power usage data.

Download solution

Environmental Monitoring

Environmental monitoring is not only used for maintaining stable operating environments, but also for providing insights on how to optimize efficiency. HVAC systems take up a huge chunk of your power consumption in factories and commercial buildings. An international hypermarket located in Taiwan chose Moxa’s solutions to enable their energy-efficient HVAC systems.

Download solution

Your Connectivity Solutions for Power Monitoring

Protocol Gateways

moxa-mgate-mb3170-mb3270-series-image-(1).jpg | Moxa

MGate MB3170/MB3270 Series

1 and 2-port advanced serial-to-Ethernet Modbus gateways

Supports Auto Device Routing for easy configuration
Supports route by TCP port or IP address for flexible deployment
Connects up to 32 Modbus TCP servers
Connects up to 31 or 62 Modbus RTU/ASCII slaves
Accessed by up to 32 Modbus TCP clients (retains 32 Modbus requests for each Master)
Supports Modbus serial master to Modbus serial slave communications
Built-in Ethernet cascading for easy wiring
10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector)
Emergency request tunnels ensure QoS control
Embedded Modbus traffic monitoring for easy troubleshooting
Serial port with 2 kV isolation protection (for “-I” models)
-40 to 75°C wide operating temperature models available
Supports redundant dual DC power inputs and 1 relay output

Download datasheet

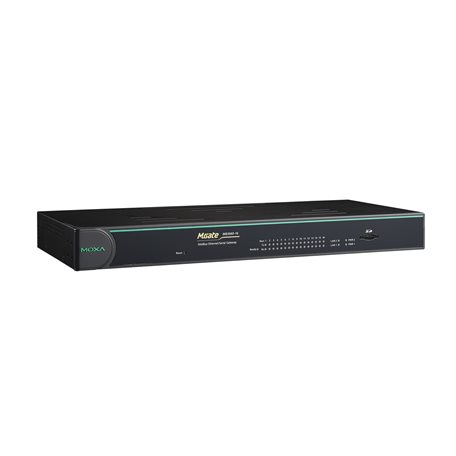

MGate MB3660 Series

8 and 16-port redundant Modbus gateways

Supports Auto Device Routing for easy configuration
Supports route by TCP port or IP address for flexible deployment
Innovative Command Learning for improving system performance
Supports agent mode for high performance through active and parallel polling of serial devices
Supports Modbus serial master to Modbus serial slave communications
2 Ethernet ports with the same IP or dual IP addresses for network redundancy
microSD card for configuration backup/duplication and event logs
Accessed by up to 256 Modbus TCP clients
Connects up to Modbus 128 TCP servers
RJ45 serial interface (for “-J” models)
Serial port with 2 kV isolation protection (for “-I” models)
Dual VDC or VAC power inputs with wide power input range
Embedded traffic monitoring/diagnostic information for easy troubleshooting

Download datasheet

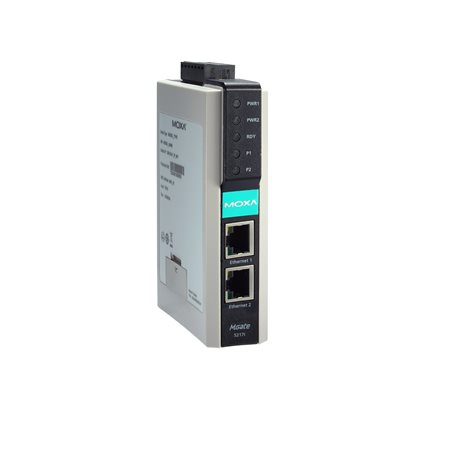

MGate 5217 Series 2-port Modbus

RTU/ASCII/TCP-to-BACnet/IP gateways

Supports Modbus RTU/ASCII/TCP master/client
Supports BACnet/IP slave/server
Supports 600 points and 1200 points models
Supports COV for fast data communication
Supports virtual nodes designed to make each Modbus device as a separate BACnet/IP device
Configures Modbus commands quickly by editing an Excel spreadsheet
Embedded traffic and diagnostic information for easy troubleshooting
Built-in Ethernet cascading for easy wiring
Industrial design with -40 to 75°C operating temperature range
Serial port with 2 kV isolation protection
Dual AC/DC power supply
5-year warranty
Security features based on IEC 62443
