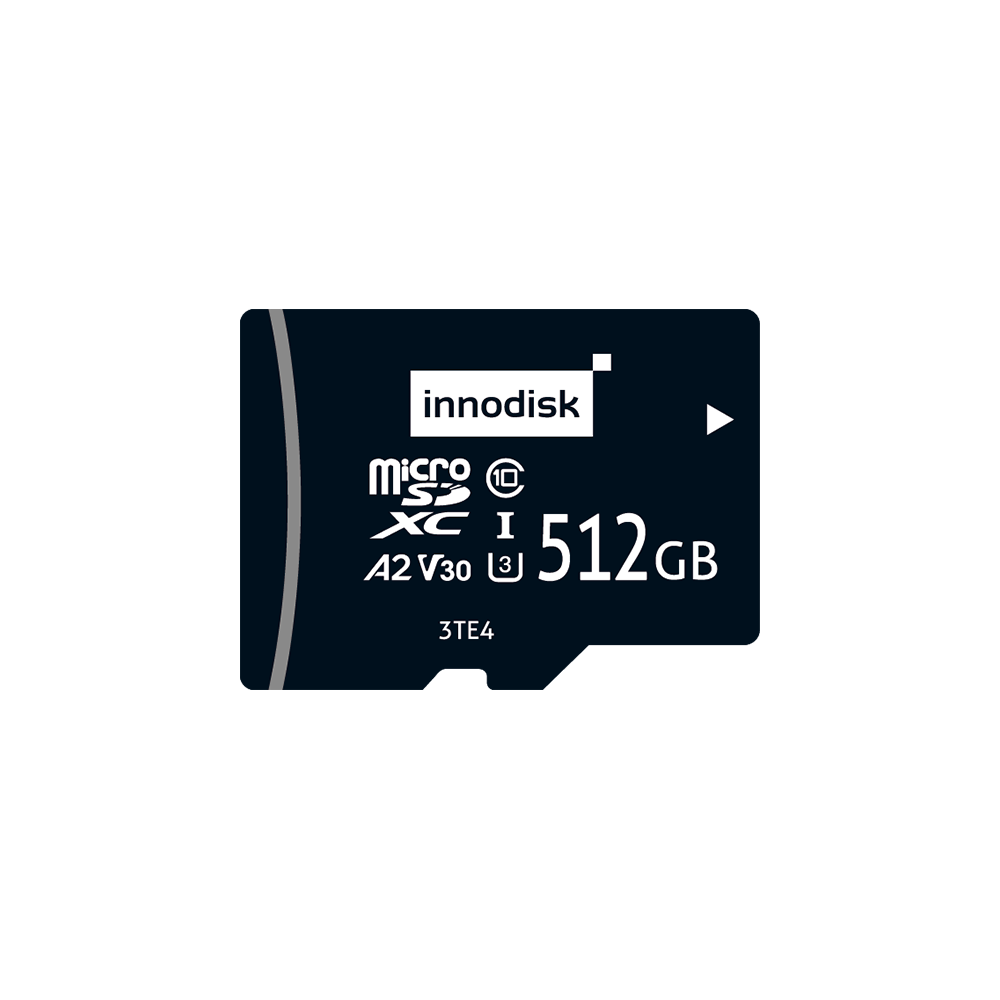

MicroSD Card 3TE4

SD Card & MicroSD Card

32GB ~ 512GB

Features

Compliant with SD 6.1 / SD 3.0 / SD 2.0 interface
Support Class 10 with UHS-III
Adopt 3D TLC NAND flash
High performance
Targeted for portable and stationary applications
S.M.A.R.T. function supported

BORN FOR SUPERIOR PERFORMANCE

Innodisk MicroSD 3TE4 series, supporting class 10 with UHS-I, are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.

Innodisk MicroSD 3TE4 series provides a wide range of capacities from 32GB to 512GB with excellent quality 3D TLC NAND Flash and is fully compliant with SD 6.1, SD 3.0, and SD 2.0 specifications.

With its low power consumption and features above, the Innodisk MicroSD 3TE4 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	MicroSD Card 3TE4
Flash Type	3D TLC
Interface	SD 3.0, SD 6.1
Form Factor	MicroSD Card
Capacity	32GB ~ 512GB
Sequential R / W (MB/sec, max.)	90 / 80
P/E Cycle	3,000
TBW (Max.)	1,363
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.7W
Max. Channels	1
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	11.0 x 15.0 x 1.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DESDM-32GS06EE1SL	DESDM-32GS06EW1SL
64GB	DESDM-64GS06%E1SL	DESDM-64GS06%W1SL
128GB	DESDM-A28S06%E1SL	DESDM-A28S06%W1SL
256GB	DESDM-B56S06%E1SL	DESDM-B56S06%W1SL
512GB	DESDM-C12S06%E1SL	DESDM-C12S06%W1SL

%. G : 96 layers 3D TLC / K : 112 layers 3D TLC
32GB is only supported by 64 layers 3D TLC

For more information, please contact our support.
