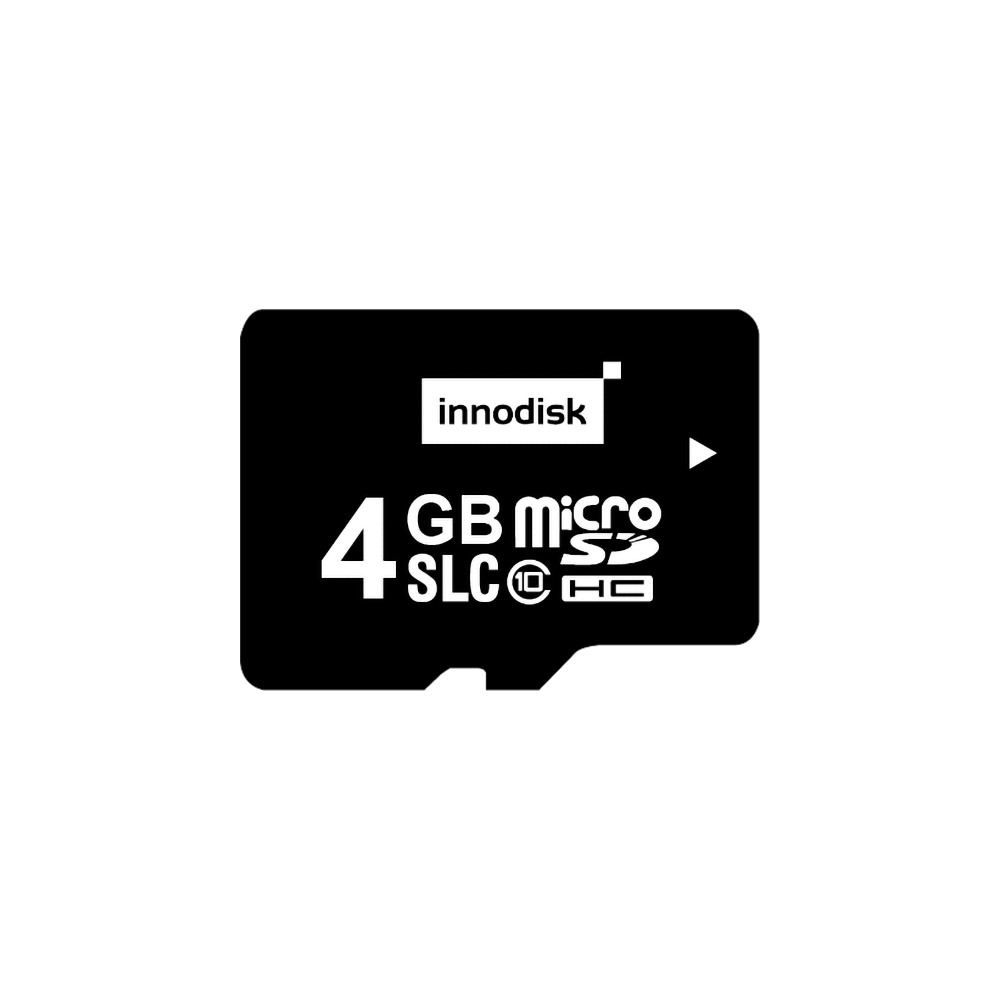

MicroSD Card 3SE3

SD Card & MicroSD Card

4GB ~ 8GB

Features

SD 3.0 interface
High performance
Power fail management
ECC algorithm implement

BORN FOR SUPERIOR PERFORMANCE

Innodisk MicroSD 3SE3 series, supporting class 10 with UHS-I (Except 8GB ), are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.

Innodisk MicroSD 3SE3 series provides a wide range of capacities from 4GB to 8GB with excellent quality SLC NAND Flash and is fully compliant with SD 3.0 and SD 2.0 specifications.

With its low power consumption and features above, the Innodisk MicroSD 3SE3 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	MicroSD 3SE3
Flash Type	SLC
Interface	SD 3.0
Form Factor	MicroSD Card
Capacity	4GB ~ 8GB
Sequential R / W (MB/sec, max.)	30 / 23
P/E Cycle	60,000
TBW (Max.)	21
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.3W
Max. Channels	1
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	11.0 x 15.0 x 1.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature

Extended Grade

(-25°C ~ 85°C)

Industrial Grade

(-40°C ~ 85°C)

4GB

DESDM-04GS02AE1ST

DESDM-04GS02AW1ST

8GB

DESDM-08GS02AE1ST

DESDM-08GS02AW1ST

For more information, please contact our support.
