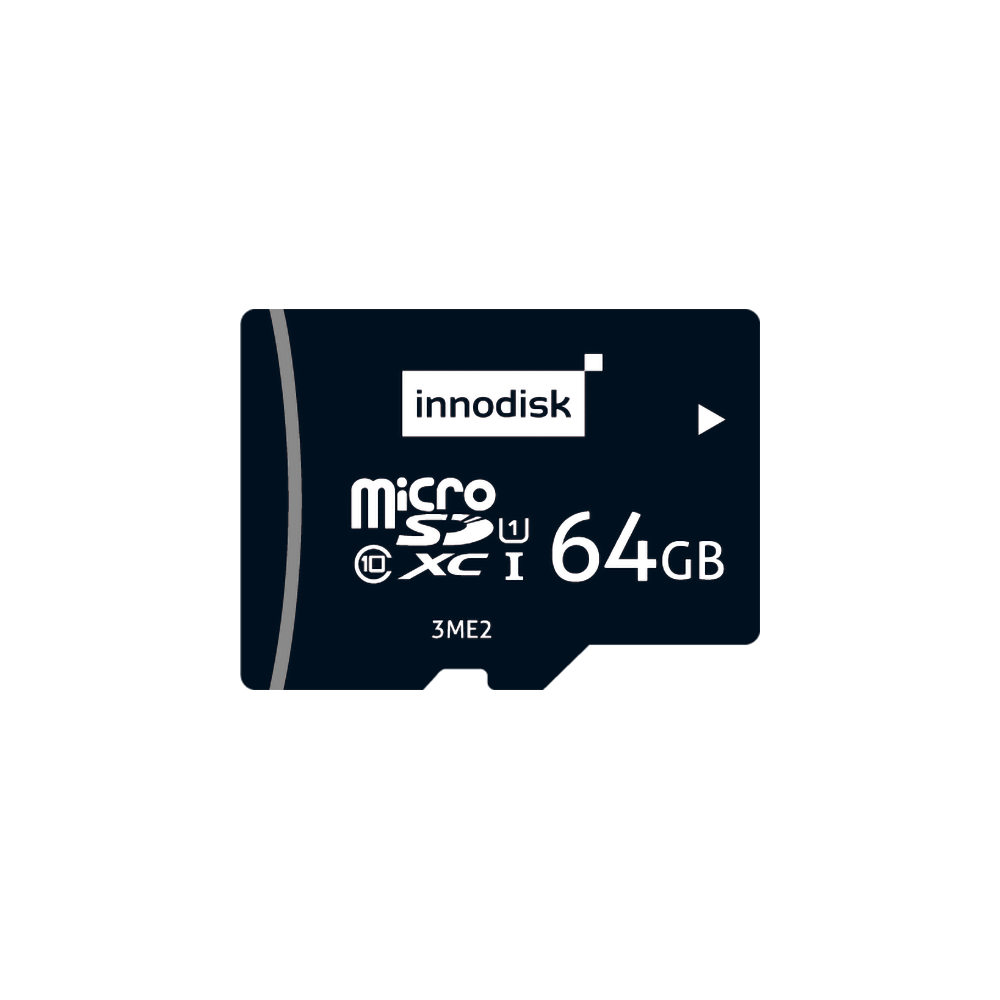

MicroSD Card 3ME2

SD Card & MicroSD Card

8GB ~ 64GB

Features

SD 3.0 interface
Support Class 10 with UHS-I
Adopt MLC NAND flash
High performance
Targeted for portable and stationary applications
S.M.A.R.T. function supported

BORN FOR SUPERIOR PERFORMANCE

Innodisk MicroSD 3ME2 series, supporting class 10 with UHS-I (Except 8GB ), are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.

Innodisk industrial MicroSD 3ME2 series provides a wide range of capacities from 8GB to 64GB with excellent quality MLC NAND Flash and is fully compliant with SD 3.0 and SD 2.0 specifications.

With its low power consumption and features above, the Innodisk MicroSD 3ME2 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	MicroSD 3ME2
Flash Type	MLC
Interface	SD 3.0
Form Factor	MicroSD Card
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	76 / 32
P/E Cycle	3,000
TBW (Max.)	174
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.7W
Max. Channels	1
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	11.0 x 15.0 x 1.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESDM-08GE21SEASK	DESDM-08GE21SWASK
16GB	DESDM-16GE21SEASK	DESDM-16GE21SWASK
32GB	DESDM-32GE21SEASK	DESDM-32GE21SWASK
64GB	DESDM-64GE21SEASK	DESDM-64GE21SWASK
