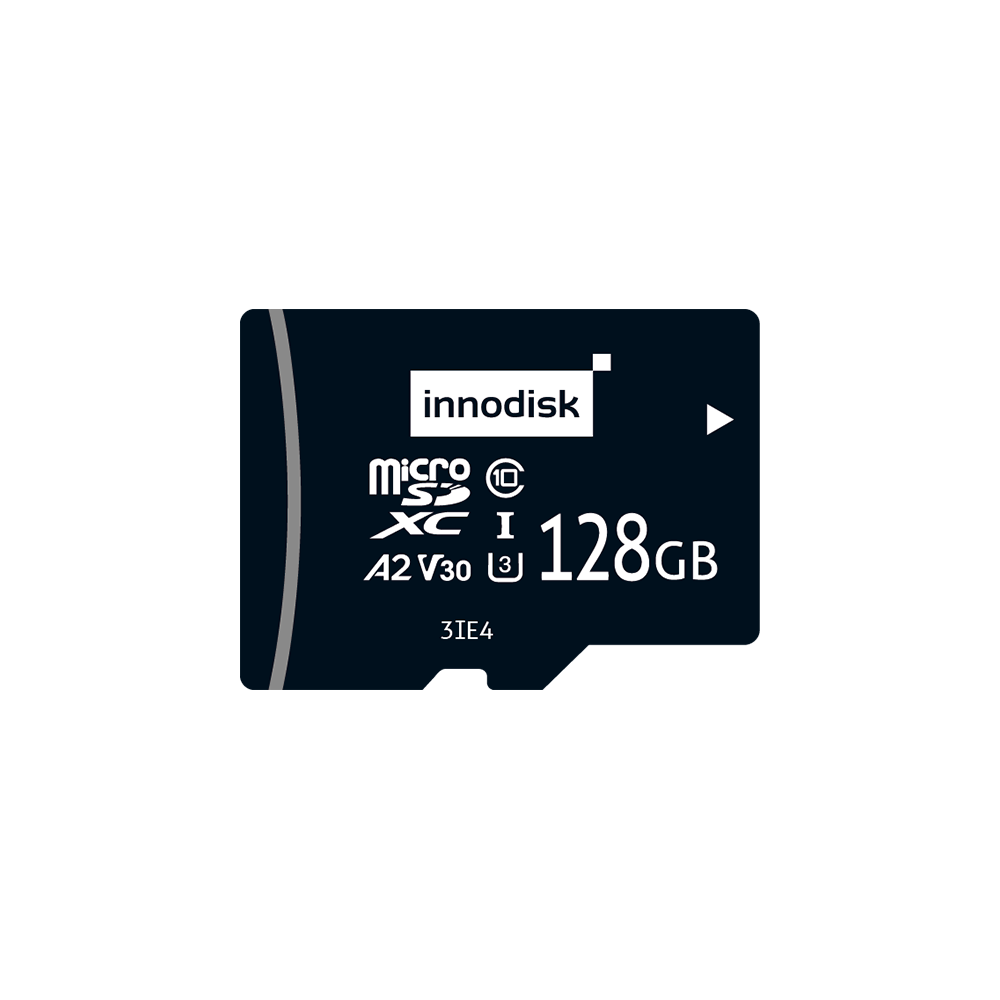

MicroSD Card 3IE4

SD Card & MicroSD Card

Ultra iSLC Solution

Features

SD 3.0 interface
Support Class 10 with UHS-I
Adopt TLC NAND flash
High performance
Targeted for portable and stationary applications
S.M.A.R.T. function supported

BORN FOR SUPERIOR PERFORMANCE

Innodisk MicroSD 3IE4 series, supporting class 10 with UHS-I, are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.

Innodisk MicroSD 3IE4 series provides a wide range of capacities from 8GB to 128GB with excellent quality 3D TLC NAND Flash and is fully compliant with SD 3.0 and SD 2.0 specifications.

With its low power consumption and features above, the Innodisk MicroSD 3IE4 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	MicroSD Card 3IE4
Flash Type	iSLC (3D TLC)
Interface	SD 3.0, SD 6.1
Form Factor	MicroSD Card
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	90 / 80
P/E Cycle	30,000 / 100,000
TBW (Max.)	11,360
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.7W
Max. Channels	1
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	11.0 x 15.0 x 1.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHSDM-08GS06EE1SL	DHSDM-08GS06EW1SL
16GB	DHSDM-16GS06%E1SL	DHSDM-16GS06%W1SL
32GB	DHSDM-32GS06%E1SL	DHSDM-32GS06%W1SL
64GB	DHSDM-64GS06%E1SL	DHSDM-64GS06%W1SL
128GB	DHSDM-A28S06%E1SL	DHSDM-A28S06%W1SL

%. G : 96 layers 3D TLC / K : 112 layers 3D TLC
8GB is only supported by 64 layers 3D TLC

For more information, please contact our support.
