 | SD Card & MicroSD Card4GB ~ 32GB Features
|

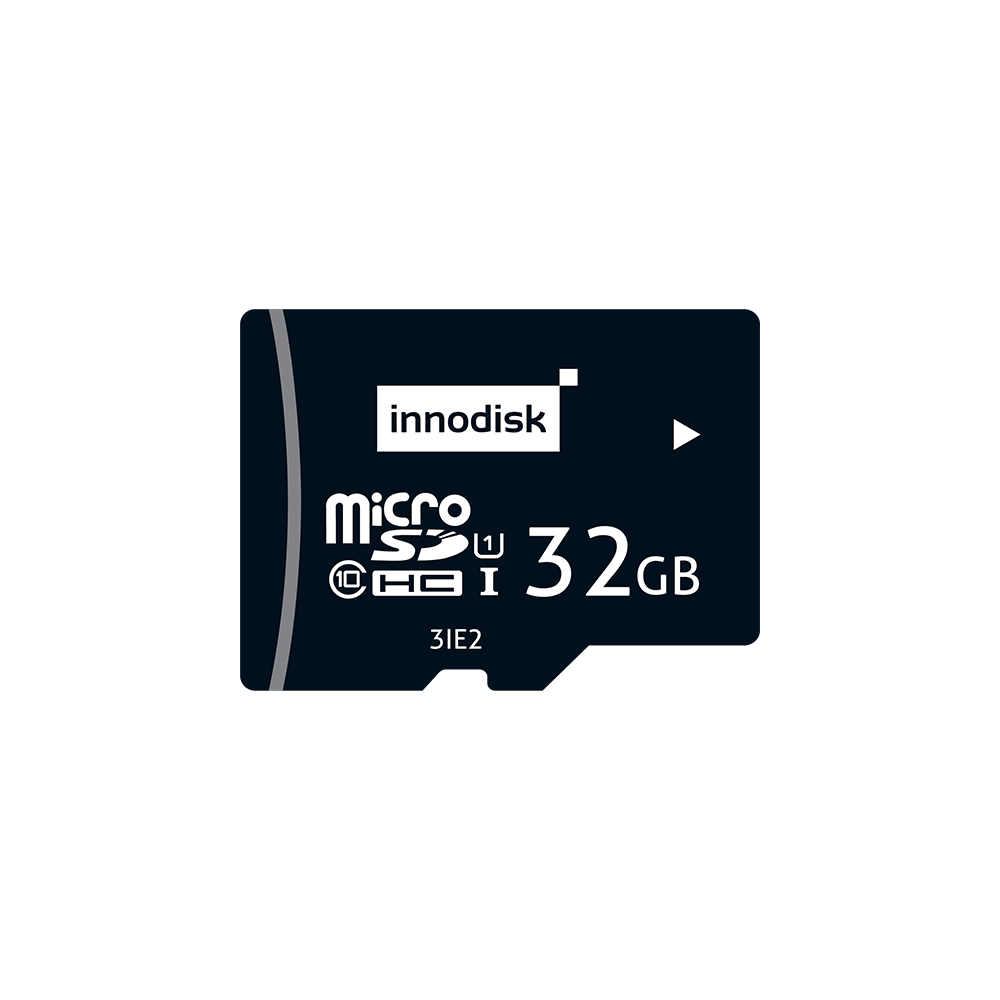

Innodisk MicroSD 3IE2, supporting class 10 with UHS-I, is specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.
With its low power consumption and features above, the Innodisk MicroSD 3IE2 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.
Model Name | MicroSD 3IE2 |
Flash Type | iSLC (MLC) |
Interface | SD 3.0 |
Form Factor | MicroSD Card |
Capacity | 4GB ~ 32GB |
Sequential R / W (MB/sec, max.) | 86 / 45 |
P/E Cycle | 20,000 |
TBW (Max.) | 522 |
Storage Temperature | -55°C ~ 95°C |
Max. Power Consumption | 0.6W |
Max. Channels | 1 |
External DRAM Buffer | N |
Features | S.M.A.R.T. |
Dimension (W x L x H/mm) | 11.0 x 15.0 x 1.0 |
Vibration | 20G@[7 ~ 2000Hz] |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Warranty | 5 Years |
| Operating Temperature | Extended Grade (-25°C ~ 85°C) |
4GB | DHSDM-04GE21SEASK |
8GB | DHSDM-08GE21SEASK |
16GB | DHSDM-16GE21SEASK |
32GB | DHSDM-32GE21SEASK |
For more information, please contact our support.
