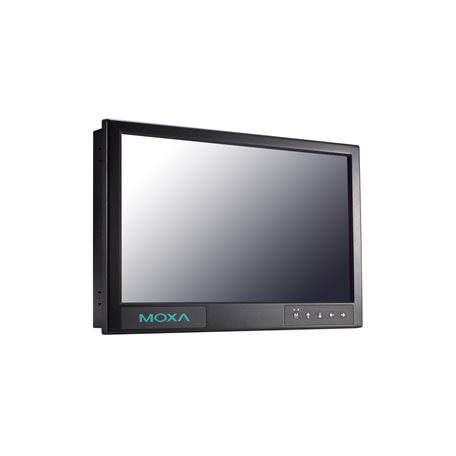

MD-124 Series

24-inch Full HD marine display


Introduction

MD-124 marine displays are designed to meet the high requirements of industrial-grade maritime service. The 24-inch screen has a 16:9 aspect ratio and 1920 x 1080 pixel resolution, and features PIP (Picture-In-Picture) and PBP (Picture-By-Picture) functions to allow a variety of display configurations. With full range dimming, wide angle views, and IEC-60945 compliance, the MD-124 is ideal not only for ECDIS displays, but for any other marine bridge application, as well. Finally, the MD-124 also comes with both AC and DC power inputs, making it ready for installation on any ship’s bridge.



Features and Benefits
  •  24-inch Full-HD display, 16:9 aspect ratio
  •  LED backlighting
  •  Dual power supplies (AC & DC)
  •  Picture-in-Picture (PIP) and Picture-by-Picture (PBP)
  •  ECDIS color calibration (by request)
  •  IP66 (front) and IP22 (rear) ratings
  •  Surface capacity touch (Z model)

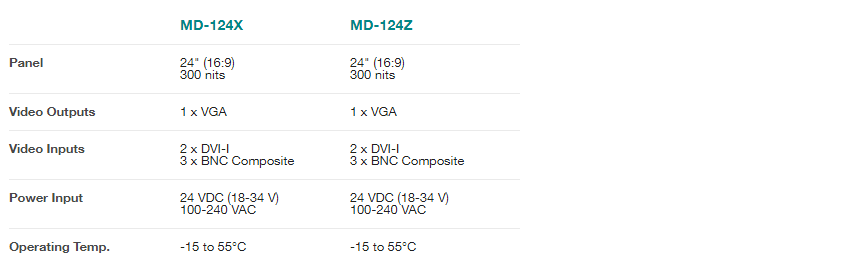

Models



Datasheet
