MATX-I964

www.alvasta-tech.com / Enterprises / JHCTECH / Single Board Computer / MATX-I964 /

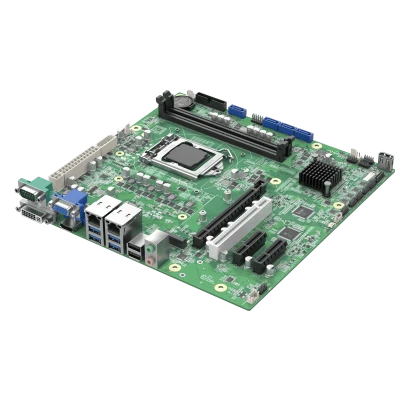

MATX-I964

Key Features

  • Intel H310 PCH?supports Intel 8/9th Gen. Coffee lake-S Core I9 / I7 / I5 / I3 /Pentium/Celeron LGA1151 CPU
  • Dual - channel DDR4 2666MHz UDIMM, up to 64GB
  • VGA+HDMI/ VGA +DVI-D/ HDMI +DVI-D dual independent displays
  • 1*I219LM and 1*I226V dual Gigabit network ports
  • 4*USB3.1, 6*USB2.0, 6*COM, 1*8bit GPIO,1*LPT
  • 1*PCIe X16, 1*PCI, 2*PCIe X4, a total of four slots;
  • 4*SATA3.0 6.0Gbps, 1*M.2 2242/2280 M-Key, Nvme
  • Realtek ALC897 HD audio chip, support 5.1 channels, optional support  amplifier
  • 24pin ATX +4pin 12V ATX power

Datasheet

MATX-I964 | Single Board Computer

Intel 8/9th LGA1151 CPU, Dual-channel DDR4, VGA/HDMI/DVI-D, Dual LAN,4*USB 3.1, 6*USB 2.0, 6*COM, 4*PCIe/PCI, ATX power

MATX-I964 is an industrial motherboard powered by Intel H310 chipset, supporting Intel 8/9th Gen Core I9 / I7 / I5 / I3 /Pentium/Celeron CPU, designed according to the standard Micro ATX motherboard specification.  It is suitable for all 4U rack and wall-mounted rack on the market, very suitable for machine vision, data acquisition and other fields.


Specification

CPUIntel 8/9th Gen. Core I9 / I7 / I5 / I3 /Pentium/Celeron CPU, LGA 1151 Socket, maximum power consumption 95W
ChipsetIntel H310 PCH
Memory2*288-pin Non-ECC UDIMM , dual channel DDR4 2666MHz, up to 64GB
Expansion1*PCIe X16 (Gen3.0 X16 signal), 2*PCIe X4 (Gen2.0 X1 signal), 1*32-bit PCI, 1* M.2 2242/2280 M-Key(Gen2.0 PCIe X2 signal)
GraphicsIntel 9th HD Graphic, AVC/ VC1 / MPEG2 / HEVC/VP8 / JPEG. HW HD codec, support Direct3D 11.2, OpenGL 5.0, OpenCL 2.1, VGA+HDMI/ VGA +DVI-D/ HDMI+ DVI-D dual independent displays?the highest resolution: HDMI is 4096*2304@24Hz, VGA is 1920*1200@60Hz, DVI-D is 1920*1200@60Hz
AudioRealtek ALC897 HD audio chip, support 5.1 channels, optional support 2*3W amplifier
LAN1*Intel® I226V, 10M/100M/1000M adaptive, support WOL
1*Intel® I219LM, 10/100/1000Mbps adaptive, support WOL
Storage4*SATA3, 6.0Gbps HDD/SSD (with a 5V independent power supply interface and supports SATA DOM); M.2 2242/2280 M-Key?PCIeX2 signal, Nvme?
Rear I/O2*LAN (RJ45 w/LED)?1*COM (RS232/422/485, DB9 male needle, colay 2*5pin dupont pin)?4*USB3.1 Gen2 (Type A, 5.0 Gbps), 2*USB2.0(Type A), both support USB Power jumper switching Power supply mode 5V System or 5VSB?1*HDMI+1*VGA+1*DVI-D?1*Line out+1*Mic, 3.5mm phone Jack

Internal I/O



4*USB2.0(one Type A, three 2*5pin dupont pins), 6*COM(1*colay DB9?1*RS232/422/485 2*5pin dupont pin, 4*RS232 2*5pin dupont pin), 1*LPT(2*13pin simple horn?, 1*8bit GPIO(2*5pin dupont pin?, 4*SATA3, 1*F_AUDIO?2*5pin dupont pin?, 1*PS2(1*6pin 2.0mm wafer)?1*Amplifier?1*4pin 2.0mm wafer) , 1*LPC(2*7pin header?, 2*CPU_FAN, 1*GPU_FAN,1*SM bus(1*4pin wafer), 1*ATX_PWR, 1*CPU_PWR, 1*SATA_PWR
Switch & LEDF_PANEL (Power SW, Reset, Power LED, HDD LED), Clear CMOS jumper, AT/ATX jumper, USB Power jumper
Power Supply24-pin ATX +4-pin 12V ?TDP: 224W (I9-9900K CPU/16G DDR4/128G SSD?without accelerator card or function card?
Watchdog TimerProgrammable timeout interrupt or system reset, 1 to 255 seconds
OS SupportWindows7?Windows* 10 Enterprise & IOT Enterprise (64 bit)(CFL-R); Windows* Server 2016 (Intel® Xeon® E) Ubuntu*?SuSe*; Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* ;VxWorks* 7 (CFL-R)
Dimension(W*H) : 244*244mm, Micro ATX form
HeightTop Side?33.2mm?PCB?1.6mm
Operating Temperature0?60?
Storage Temperature-40°C~85°C
Storage Humidity10~95%@40°C, Non-condensing
EMC/CertificationCE/FCC Class A
