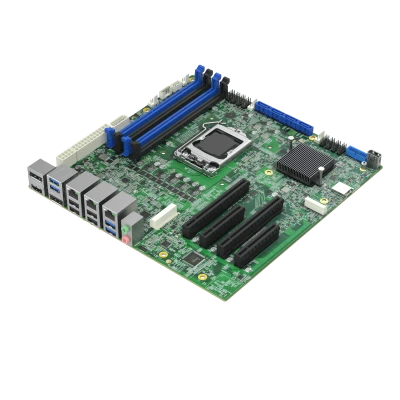

MATX-I961

Key Features

  • Intel® Xeon® E or 9th/8th-Gen Core™ i7/i5/i3 processor
  • Intel®  Q370/C246 Chipset
  • 4*DDR4 2666/2400MHz DIMM, Up to 128GB
  • 2*DP,1*HDMI, support 3 displays
  • 3*LAN, 6*USB3.1 Gen2, 7*USB2.0, 4*COM
  • 1*PCIeX16 or 2*PCIe X8+2*PCIe X 4 slot
  • 1*Mini PCIe, with SIM Card slot, support 4G/WiFi/GPS/GSM/BT
  • 4*SATA3, 1*M.2 2280 M-Key(PCIe X4)
  • Support TPM2.0, Support AMT12.0, Intel® iVpro
  • ATX Power(12V/5V/3.3V)

Datasheet

MATX-I961 | Embedded Single Board Computer

Intel® Coffee Lake-R LGA1151 CPU, MicroATX, HDMI, 2*DP, 3*LAN,4*COM 6*USB3.1, 7*USB2.0, 4*SATA3.0, ATX Power, Workstation grade performance.


Specification

System
CPUIntel® Xeon® E or 9th/8th-Gen Core™ i9/i7/i5/i3 LGA1151 processor?up to 8C/16T
ChipsetIntel® Q370 / Intel® C246
System Memory4*288-Pin SODIMM, dual channel DDR4 2666/2400MHz, up to 128GB
Expansion
1*Full size Mini PCIe(PCIe x1+USB) with SIM slot
2*PCIe X16 slot (PCIe Gen3, support 1 PCIex16 device, When connecting 2 devices, it automatically switches to 2*PCIe X8)
2*PCIe X8 slot (PCIe Gen3, 2*PCIe X4 signal)
1*M.2 2280 M-Key(Gen3, PCIeX4signal)
GraphicsIntel® UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1
DP max. res.4096*2304@60Hz, HDMI max. res. 3840*2160@30Hz, support 3 independed display
AudioRealtek ALC662VD controller, Support 5.1 channel
LAN2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps;
1*Intel I219LM PCIe Gig. Ethernet, 10/100/1000Mbps, support AMT12.0, support iVpro technology
Keyboard & MousePS/2 & USB Keyboard and mouse
Storage4*SATA3, 6.0Gbps HDD/SSD support Raid 0/1/5/10
1*M.2 2280 M-key, Support NVMe storage
DIO8 bit TTL signal, programmable input and output
Internal I/O2*USB3.1 Gen2, 1*USB2.0 type A, 2*USB2.0 header, 4*COM header, PS/2 wafer
1*F_PANEL header (Power SW, Reset, LED, HDD LED), 8-bit DIO, 1*SM bus
Rear I/O3*RJ45 Gig-LAN
4*USB3.1 Gen2 Type A, 4*USB2.0 Type A
Audio out, Mic
1*HDMI +2*DP
Switch&LEDPin header inside(Power SW, Reset, LED, HDD LED)
SecuritySupport Infineon TPM2.0
Power Supply
24-pin ATX/8-pin ATX 12V; TDP: 374W(I7-8700, 16GB DDR , 2*4TB SATA HDD, GTX-1660 Graphics)
Watchdog TimerWatchdog timeout programmable via software 1 to 255 second
OS SupportWindows* 10 Enterprise & IOT Enterprise?64-bit?(CFL-R)
Windows* Server 2016 (Intel® Xeon® E)
Ubuntu*?SuSe*?Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R)
Wind River* VxWorks* 7 (CFL-R)
Mechanical &
Environmental

Dimension(W*H): 244*244mm
HeightTop Side: 30.80mm; PCB: 1.6mm
Operating Temperature0°C~60°C
Storage Temperature-40°C~85°C
Storage Humidity10~90%@40°C, Non-condensing
Certification/EMCCE/FCC Class B


Need support, click here
