MATX-I953

www.alvasta-tech.com / Enterprises / JHCTECH / Single Board Computer / MATX-I953 /

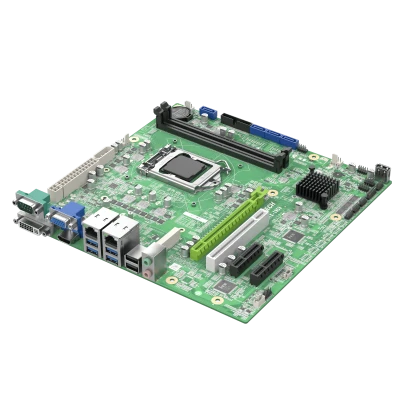

MATX-I953

Key Features

  • Intel H110 PCH?supports Intel 6/7th Gen. SKL/KBL-S Core I7 / I5 / I3 /Pentium/Celeron LGA1151 CPU
  • Dual - channel 2*DDR4 2133/2400MHz UDIMM, up to 32GB
  • Intel 9th HD Graphic , VGA+HDMI+DVI-D three displays
  • 1*I219LM and 1*I211AT dual Gigabit network ports
  • 4/8*USB3.0, 6*USB2.0, 6/12*COM, 8bit DIO,1*LPT
  • 1*PCIeX16, 1*PCI, 2*PCIeX4(X1 signal), a total of four slots, 1* full-size Mini PCIe
  • 4*SATA3.0 6.0Gbps, optional audio, optional amplifier
  • 24pin ATX +4pin 12V ATX power

Datasheet

MATX-I953 | Single Board Computer

Intel® Core™ i7/i5/i3/ Pentium/Celeron  CPU, VGA/HDMI/DVI-D, Dual LAN,8*USB 3.0, 6*USB 2.0, 12*COM, 4*PCIe/PCI, ATX power

MATX-I953 is an industrial motherboard powered by Intel H110 chipset supporting Intel 6/7th Gen Core I7 / I5 / I3 /Pentium/Celeron CPU, designed according to the standard Micro ATX motherboard specification.  It is suitable for all 4U rack and wall-mounted rack on the market, very suitable for machine vision and data acquisition and other fields.


Specification

CPUIntel 6/7th Gen. Core I7 / I5 / I3 /Pentium/Celeron CPU, LGA 1151 Socket, maximum power consumption 91W
ChipsetIntel H110 PCH
Memory2*288-pin Non-ECC UDIMM , dual channel DDR4 2133/2400MHz, up to 32GB
Expansion1*PCIe X16 (Gen3.0 X16 signal), 2*PCIe X 4 (Gen2.0 X1 signal), 1*32-bit PCI, 1* full-size Mini PCIe(PCIe X1 signal)
GraphicsIntel 9th HD Graphic, AVC/ VC1 / MPEG2 / HEVC/VP8 / JPEG. HW HD codec, support Direct3D 11.2,OpenGL 5.0,OpenCL 2.1, the highest resolution: HDMI is 3840*2160@30Hz,VGA is 1920*1200@60Hz, and DVI-D is 1920*1200@60Hz
AudioRealtek ALC662VD or ALC897 HD audio chip, support 5.1 channels, optional support 2*3W amplifier
LAN1*Intel® I211AT, 10M/100M/1000M adaptive, supports WOL
1*Intel® I219LM, 10/100/1000Mbps adaptive, supports WOL
Storage4*SATA3, 6.0Gbps HDD/SSD (1*SATA jumper with 5V power supply, optional support SATA DOM)

Rear I/O



2*LAN (RJ45 w/LED), 4*USB3.0 Gen2 (Type A), 4*USB2.0(Type A), both support USB Power jumper switching Power supply mode 5V System or 5VSB, 1*COM (RS232/422/485, DB9 male needle), 1*HDMI+1*VGA+1*DVI-D, 1*Line out+1*Mic, 3.5mm phone Jack
Internal I/O4*USB3.0 Gen 2.0(S002 with, S001 without), 2*USB2.0(one of them is Type A), 5/12*COM (S001:1 * RS232/422/485 and 4*RS232, S002: 1*RS232/422/485 and 8*RS232), 1*8bit DIO,1* LPT, 4*SATA3, 1*F_AUDIO,1*AMP,1*LPC, 2*SYS_FAN, 1*CPU_FAN,1*SM bus
Switch & LEDF_PANEL (Power SW, Reset, Power LED, HDD LED), Clear CMOS jumper, AT/ATX jumper, USB Power jumper
Power Supply24-pin ATX + 4-pin 12V?TDP?TBD
Watchdog TimerProgrammable timeout interrupt or system reset, 1 to 255 seconds
OS SupportWindows 7(SKL-S supports 32-bit and 64-bit, KBL-S supports 64-bit), Windows 10, Linux
Dimension(W*H) : 244*244mm, Micro ATX form
HeightTop Side?34.9mm?PCB?1.6mm
Operating Temperature0?60?
Storage Temperature-40°C~85°C
Storage Humidity10~95%@40°C, Non-condensing
EMC/CertificationCE/FCC Class A
