M116PT

www.alvasta-tech.com / Industrial / Winmate / Enterprise Mobility / Windows Rugged Tablets / M116 Series Rugged Tablet / M116PT / M116Pt

M116Pt

M116PT

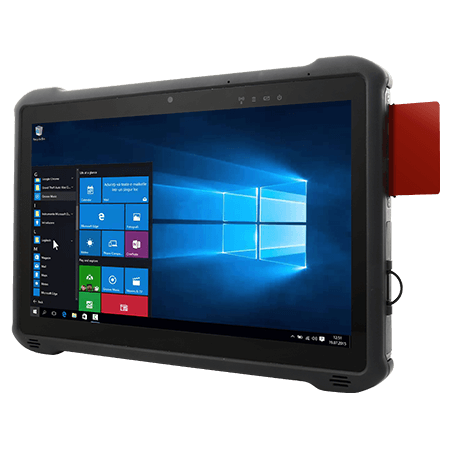

11.6" Intel® Pentium® N4200 Rugged Tablet with Smart Card Reader

KEY FEATURES

Intel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz),Rugged Tablet with Smart Card Reader
11.6” 1920 x 1080 LED panel with direct optical bonding
IP65 water and dust proof with MIL-STD-810G rugged housing
Integrated Smart Card Reader
Optional Integrated 1D/2D Barcode Reader ( Integrated CAC Reader) and HF RFID for data collection
Removable battery with hot-swap function for all day productivity
military grade MIL-STD 810G

Download Datasheet

	The M116PT is designed for military grade mobile rugged use, withstanding shock, vibration, and drop (satisfies 4 feet drop certification), and can be operated in wide temperature of -20°C to 60°C, allowing the tablet to be used in harsh environments such as industrial and military use. With an IP65 rating, the device is dust-tight and can withstand water jet against the device enclosure. So, it can also be easily wiped cleaned to reduce the spread of infection for medical use.
Multi-touch Projected Capacitive Touch The minimum 10-point Multi-touch PCAP Touch technology allows users to switch windows, take snapshots, zoom in and rotate easily to take full advance of the Windows 10 IoT touch interface.
	Sunlight Readable Wide-Angle Panel M116PT panel offers wider viewing angles, better image contrast, and faster response times. With an 11.6”1920x1200 LED high resolution, high brightness display, perfect for viewing under different conditions.
CPU Designed for Tablets M116PT is offered with Intel’s Pentium N4200 processor to provide high performance and low power consumption, providingextended battery life. It supports with Windows® 10 IoT Enterprise operating system to fulfill the increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged applications. The Rugged Tablet with integrated Smart Card Reader is a powerful Windows 10 device that offers the security organizations are looking for when users are accessing sensitive information. The rugged design ensures the device can be used in any environment.
	Multiple Data Collection Methods, Real-time Data Connectivity Real-time data access to the right information is critical to mobile users. M116PT supports 4G/LTE, GPS, WiFi, BT to allow users to connect in the way that best suits their needs. Apart from the 2MP front camera and 8MP rare camera, the M116P is 1D/2D Barcode Reader, HF RFID Reader, and the add-on module for UHF RFID Reader and Smart Card Reader configurable. The M116PT contains a built-in Smart Card Reader, with all the other data collection methods available to be added on. Features with Integrated CAC Reader, compliant smart card reader supports class A, B, and C for secure access to the device and your network.
