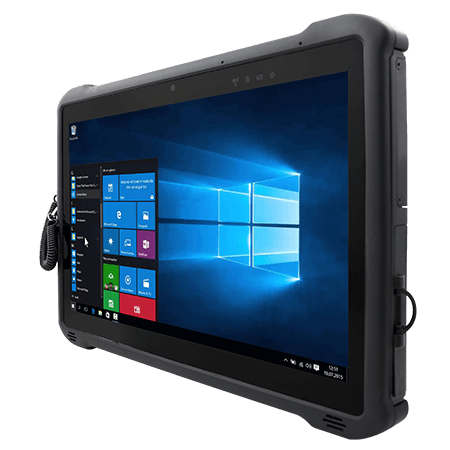

M116P11.6" Rugged Tablet with Intel® Pentium® N4200

KEY FEATURES

• Intel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz)
• 11.6” 1920 x 1080 LED panel with direct optical bonding Rugged Tablet
• IP65 water and dust proof with MIL-STD-810G rugged housing
• Optional Integrated 1D/2D Barcode Reader and HF RFID for data collection
• Removable battery with hot-swap function for all day productivity
• 802.11ac WiFi, BT 5.0, 4G LTE, GPS Wireless Connectivity

Download Datasheet

Mobile Rugged Design

The M116P is designed for mobile rugged use, withstanding shock,
vibration, and drop (satisfies 4 feet drop certification), and can be
operated in a wide temperature of -20°C to 60°C, allowing the
tablet to be used in harsh environments such as industrial and military use. With an IP65 rating, the device is dust-tight and can withstand water jet against the device enclosure. So, it can also be easily wiped cleaned to reduce the spread of infection for medical use.

Multi-touch Projected Capacitive Touch

The minimum 10-point Multi-touch PCAP Touch technology allows
users to switch windows, take snapshots, zoom in and rotate easily to take full advance of the Windows 10 IoT touch interface.

Sunlight Readable Wide-Angle Panel

M116P offers an 11.6” 1920x1200 LED high resolution, high brightness display, perfect for viewing under different conditions.

CPU Designed for Tablets

M116P is offered with Intel’s Pentium N4200 processor to provide high performance
and low power consumption, providing extended battery life. It supports with
Windows® 10 IoT Enterprise operating system to fulfill the increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged applications.

Multiple Data Collection Methods, Real-time Data Connectivity

Real-time data access to the right information is critical to mobile users.
M116P supports 4G/LTE, GPS, WiFi, BT to allow users to connect in the
way that best suits their needs. Apart from the 2MP front camera and
8MP rare camera, the M116P is 1D/2D Barcode Reader, HF RFID Reader, and the add-on module for UHF RFID Reader and Smart Card Reader configurable.
