M101EKB

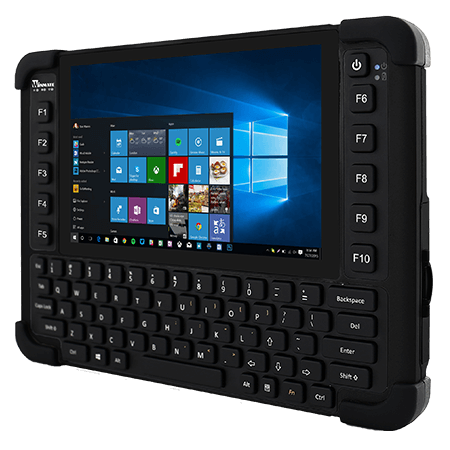

8inch Windows Rugged Tablet PC with Intel® Celeron® N6211

KEY FEATURES

• Intel® Elkhart Lake Celeron® N6211 Processor
• 8” 1280x800 wide viewing angle with PCAP touch
• ISO/IEC 9995­3 QWERTY Keypad
• USB Type­-C port supports power delivery 20V In
• IP65 water and dust proof with MIL-STD-810H rugged housing
• Low power consumption with fanless design
• Removable battery with hot­swap function for all day productivity
• Integrated 4G/5G Wireless WWAN (Optional)

Download Datasheet

Stable Performance with Intel’s CPU

The M101EKB uses Intel® Celeron® N6211 processor with a fanless cooling system to provide stable performance and low power consumption. The M101EKB supports the latest Windows® operating system to fulfill increasing industrial application requirements and provides an alternative solution for those between general consumer and extremely rugged applications.

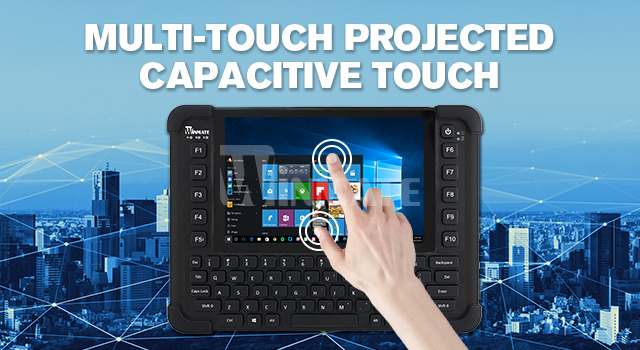

Multi-touch Projected Capacitive Touch

Designed for versatile use in applications such as warehouse logistics, direct store delivery, and law enforcement vehicles, the M101EKB is perfect for those that require vehicle-mount computer capabilities with the portability of a tablet. The minimum 10-point Multi-touch Projected Capacitive Touch technology allows users to switch windows, take snapshots, zoom in, and rotate easily to take full advance of the tablet’s interface.

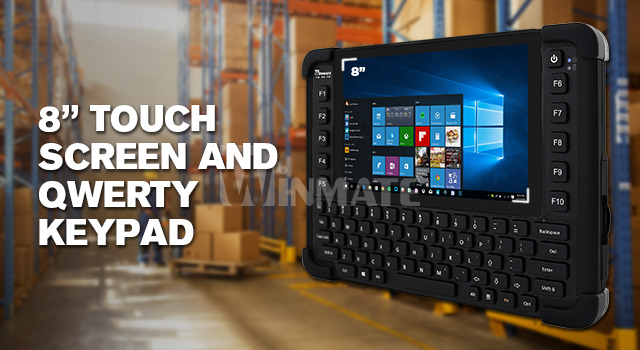

8” Touch Screen and QWERTY Keypad

Along with the 8” projected capacitive (PCAP) multi-touch screen, the M101EKB Rugged Tablet features a waterproof ISO/IEC 9995-3 QWERTY keypad with LED backlight and 10 programmable function keys for easy data input in the field when touch is not convenient to use. The keypad adds a lot of practicality, particularly to those who have to type a lot. Add extra convenience for workers wearing thick gloves.

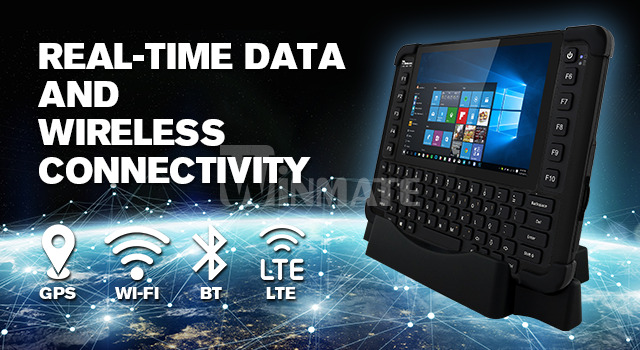

Real-Time Data and Wireless Connectivity

Real-time data access to the right information is crucial for mobile workers. The M101EKB offers GPS, Wi-Fi 802.11 a/b/g/n/ac, BT 4.0, and optional LTE to enable robust communications anytime and anywhere. With a built-in 5.0 MP camera on the rear side, users can instantly capture photos, videos, and documents.

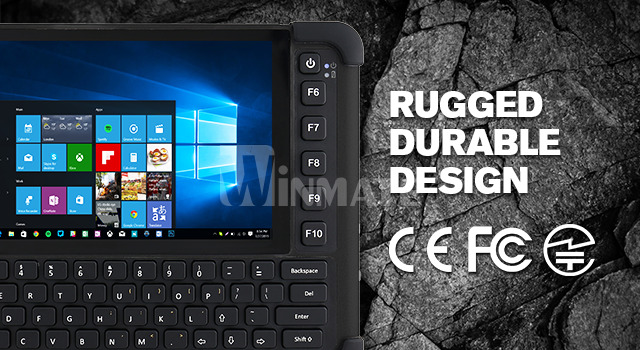

Rugged Durable Design

The M101EKB is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. to concrete according to Defence standard MIL-STD-810H for operations in some of the harshest environments. With all-around rubber edges and covered I/O ports, the M101EKB rugged tablet features a dust-tight and waterproof enclosure that makes the M101EKB ideal for use in wet and dusty conditions.
