OVERVIEW

Winmate's M Series HMI offers a versatile and easy-to-service high-end solution for all your industrial needs. With a flexible system design, it provides easy access to components, making the service process faster and more efficient.

HMI (Human-Machine Interface) is an essential component of modern industrial systems. It provides operators with the ability to interact with the machine or process and helps them to monitor, control, and diagnose issues. Winmate's M Series HMI is designed with the latest technology to meet the requirements of a wide range of applications.

The M Series HMI features a range of display sizes and resolutions to suit different requirements. It has a rugged and durable construction with an IP65 rating for protection against dust and water. The panels are made with industrial-grade materials to ensure they can withstand harsh environments and frequent use.

One of the most notable features of the M Series HMI is its flexible system design, which makes it easy to service and upgrade. This feature helps to reduce downtime and maintenance costs, making it a cost-effective solution for industrial applications. Additionally, the HMI has a fanless design that eliminates the need for regular maintenance and reduces the risk of system failure due to fan failure.

Winmate's M Series HMI is a reliable and high-performance solution that can be customized to meet specific requirements. It offers a range of connectivity options, including Ethernet, USB, and serial ports. The HMI is also compatible with various operating systems, including Windows and Linux, making it suitable for a wide range of applications.

With a flexible system design, rugged construction, and a range of connectivity options, it provides operators with a reliable and efficient interface to interact with industrial systems. Whether it's for process monitoring, control, or diagnostics, the M Series HMI is an excellent choice for any industrial application.

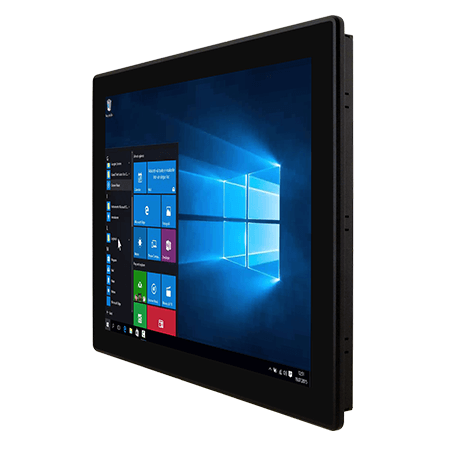

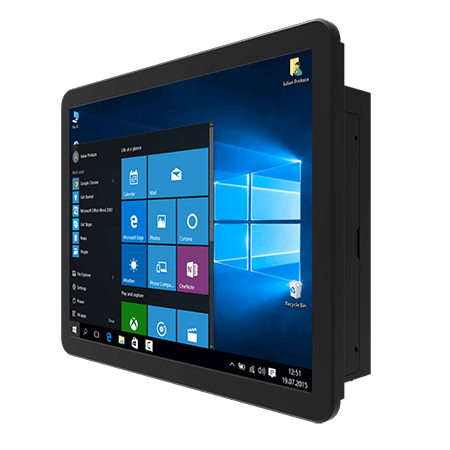

R12ITWS-MHM2 12.1" Intel® Core™ i5-1135G7 M Series HMI Panel PC FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...	R12IBWS-MHM2 12.1" Intel® Atom® E3845 M Series HMI Panel PC FEATURES Projected Capacitive Multi Touch Screen Fanless Design Modular design for easy service in the field Support wide range 12-24V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...	R15ITWS-MHC3 15" Intel® Core™ i5-1135G7 M Series HMI Panel PC FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...
R15IBWS-MHC3 15" Intel® Atom® E3845 HMI Panel PC FEATURES Projected Capacitive Multi Touch Screen Fanless Design HMI Panel PC Modular design for easy service in the field Support wide range 12-24V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...	R17ITWS-MHM1 17" Intel® Core™ i5-1135G7 M Series HMI Panel PC FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...	R17IBWS-MHM1 17" Intel® Atom® E3845 M Series HMI Panel PC FEATURES Projected Capacitive Multi Touch Screen Fanless Design touch screen monitor Modular design for easy service in the field Support wide range 12-24V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...

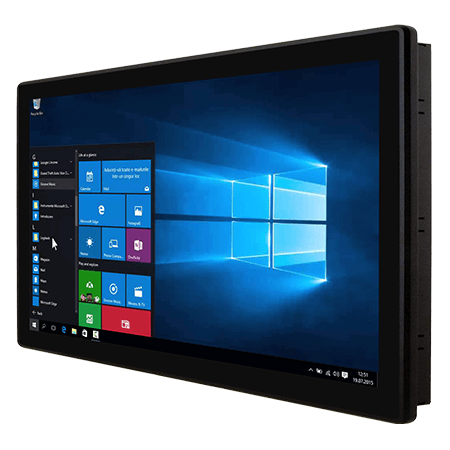

R19ITWS-MHA1 19" Intel® Core™ i5-1135G7 M Series HMI Panel PC FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...	W22ITWS-MHA3 21.5" Intel® Core™ i5-1135G7 M Series HMI Panel PC FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...	W22IBWS-MHA3 21.5" Intel® Atom® E3845 M Series HMI Panel PC FEATURES Projected Capacitive Multi Touch Screen Fanless Design Modular design for easy service in the field Support wide range 12-24 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...
W24ITWS-MHA2 23.8" Intel® Core™ i5-1135G7 M Series HMI Panel PC FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input One Quick & Easy Removable 2.5” SSD Bay Slot Learn more...
