 | Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps FiberConnect copper and fiber network segments easily and inexpensively. Features :
Download Datasheet |
Overview

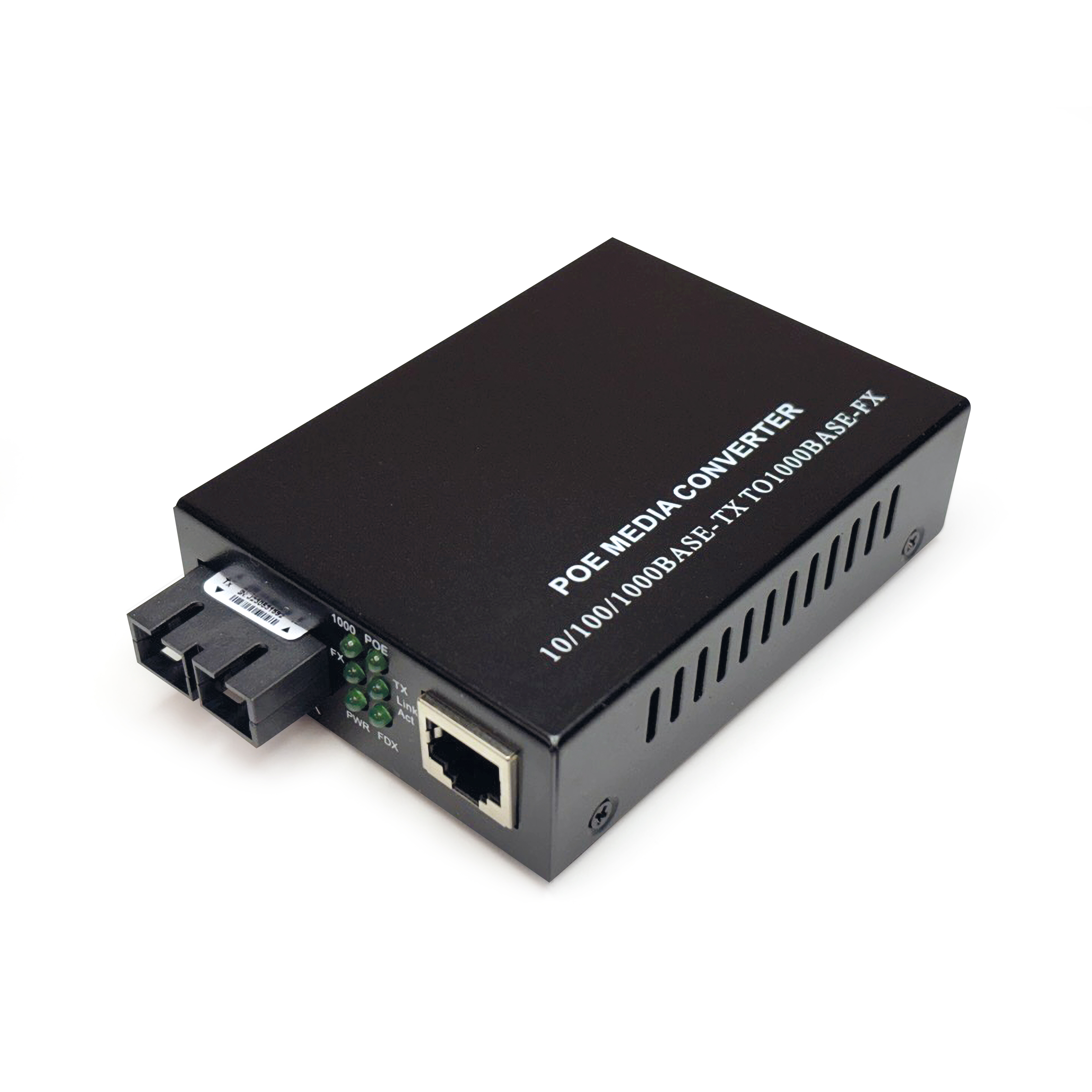

Use the PoE PSE Media Converter 10/100/1000BASE-T to 1000BASE-SX/LX to connect two types of network segments easily and inexpensively. It features a UTP RJ-45 port and a fiber port. Depending on the model, the fiber port can be an SFP slot, or a singlemode or multimode duplex fiber SC connector. The SFP model is customizable using swappable SFPs for singlemode or multimode applications.
The media converter automatically detects 10-/100-/1000-Mbps bandwidth on the copper side and supplies power to PoE+ powered devices. The converter includes an AC power supply to power the unit.
Spesifikasi
| General | |
| RJ-45 Interface | The transmission media adopts CAT5 twisted-pair with maximum length of 100 meters (330 ft.). |
| Fiber Interface | SC fiber interface is a duplex mode type which includes two sets of optical transceivers: TX and RX. |
| Cable Requirements | UTP Cable: Cat5 UTP Cable; Singlemode: 8.3/125, 8.7/125, 9/125, 10/125?m; Multimode: 50/125, 62.5/125?m, 100/140?m |
| Humidity | 5-90% non-condensing |
| MTBF | 114,000 hours |
| Operating temperature | 32 °F to 122°F (0°C to 50°C) |
| Operation | Full/Half duplex mode |
| Power | Power Supply Interface: The AC power supply is connected to AC input jack of media converter through the attached AC power cable.; Max Power: 25.5W |
| Standards | IEEE 802.1q/IEEE 802.3z 1000Base-TX/FX standard IEEE 802.3af Interface |
| Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Item Specifications | |
| Connectors | (1) RJ45 PoE+; (1) Singlemode SC |
| Country of Origin | Philippines |
| Dimensions | 1-in. H x 2.81-in. W x 3.74-in. D (25.4 x 71.5 x 95-mm) |
| Weight | 1.14-lb. (0.52-kg) |
