LCD Scaler Boards

OVERVIEW

Winmate provides a series of cost-effective LCD scaler board solutions with various video interfaces of your choice for industrial LCD panels. Various connectors and resolutions are available for different vertical market needs.

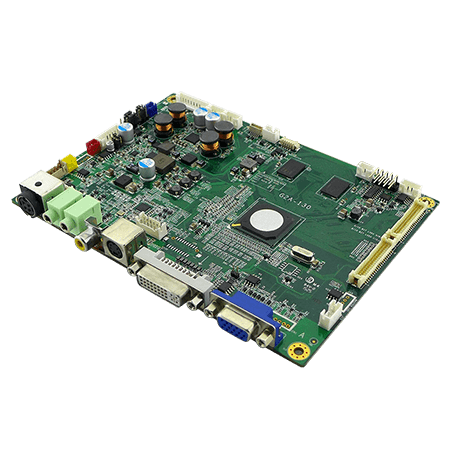

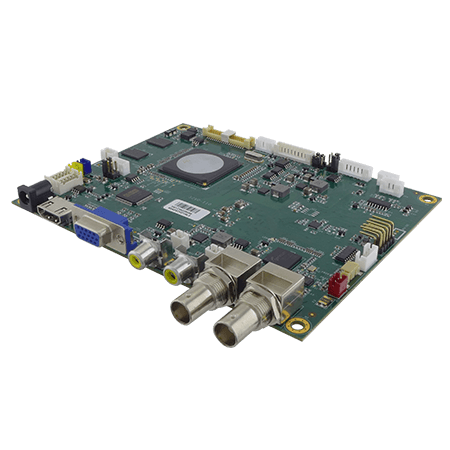

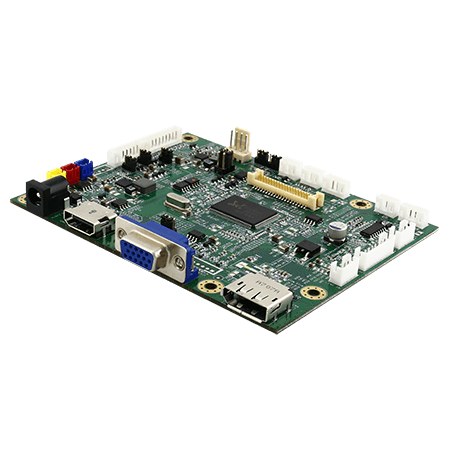

R6HD-100 LCD Scaler Board (1920 x 1200) FEATURES Support panel interface: LVDS (8-bit) Signal Input: HDMI, VGA, Display Port 12 V DC input Operating Temperature 0°C~+50°C Storage Temperature -20°C~+60°C Learn more...	S2VD-110 LCD Scaler Board, 1920 x 1200, SDI Solution FEATURES Support LVDS (8-bit) Signal Input: HDMI, VGA, CVBS, 3G-SDI input, 3G-SDI out 12 V DC input Operating Temperature 0~+50°C Storage Temperature -20~+60°C Learn more...	G2A-130A LCD Scaler Board (2560 × 1600) FEATURES Support panel interface: LVDS (10-bit) Signal Input: VGA, DVI-D (Single link), Composite Video, S-Video, Audio in 12 V DC input Operating Temperature 0~+50°C Storage Temperature -20~+60°C Learn more...

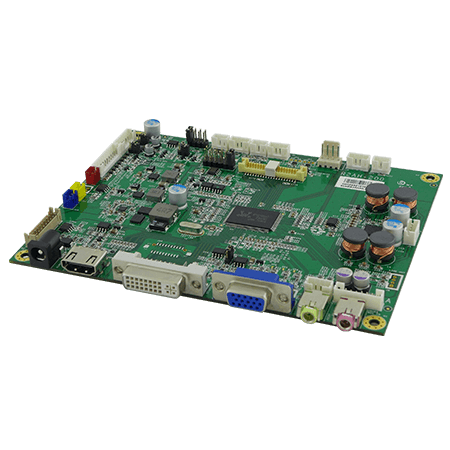

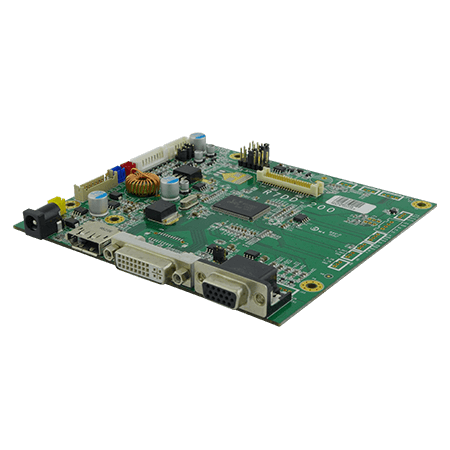

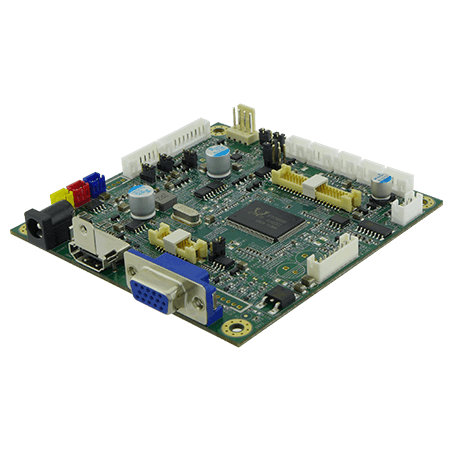

R2AH-200 LCD Scaler Board with 1920 x 1200, HDMI FEATURES Support resolution 1920 x 1200 @ 60 Hz LCD Scaler Board 12 V DC Input VGA support Sync-On-Green (SOG) Content protection HDCP 1.2 is supported with HDMI IR remote control (Optional) RS232 remote control (Optional) Operating Temperature 0~+50°C Storage Temperature -20~+60°C Learn more...	R6H-300A LCD Scaler Board (1920 x 1200, VGA + HDMI) FEATURES Supports resolution 1920 x 1200 @ 60 Hz 12 V DC Input VGA support Sync-On-Green (SOG) HDCP 1.2 Enhanced protection of HDCP secret key Built-in stereo audio device (Optional) IR remote control (Optional) Operating Temperature 0°C~+50°C Storage Temperature -20°C~+60°C Learn more...	R7DD-200 LCD Scaler Board (1920 x 1200, DP Solution) FEATURES Support resolution 1920 x 1200 @ 60 Hz VGA support Sync-On-Green (SOG) IR remote control (Optional) RS232 remote control (Optional) 12 V DC Input Operating Temperature 0°C~+50°C Storage Temperature -20°C~+60°C Learn more...

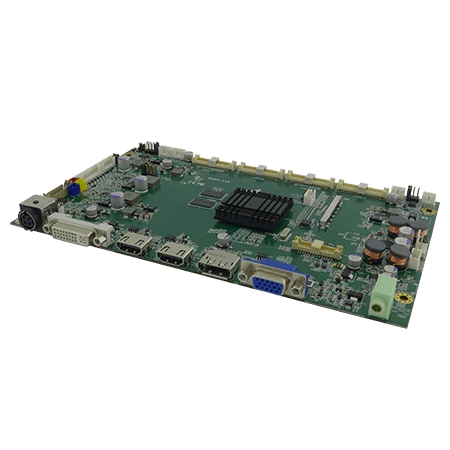

R2AP LCD Scaler Board (4096 x 2160, 4K UHD) FEATURES Support panel interface: LVDS (10-bit), V-By-One, eDP Signal Input: DVI-D, HDMI 1.4, HDMI 2.0, Display Port 1.2, VGA, Audio in HDCP 1.4 protect support with DVI, HDMI, Display Port 12/ 24 V input (with jumper settings) Operating Temperature 0~+50°C Storage Temperature -20~+60°C Learn more...
