| Key Features - Intel® gen.8th/9th Coffee lake series CPU LGA1151
- Intel® H310 PCH
- 2*DDR4 2400/2666MHz SODIMM, up to 64GB
- 1*DP, 1*HDMI, 1*VGA, 2+1 display port, 2*LAN, 4*USB3.1, 2*USB2.0,
- 4*COM, 16-bit Iso.DIO
- 1*M.2 E-key 2230, support WiFi6/BT5.0
- 1*PCIe X16, 1*PCIe X4, 2*32-bit PCI, Support a variety of highspeed expansion function cards
- 2*SATA3.0, 1*full size Msata, with SIM slot
- Wide power input DC 9-36V, With short circuit, over voltage and over current protection
Datasheet |

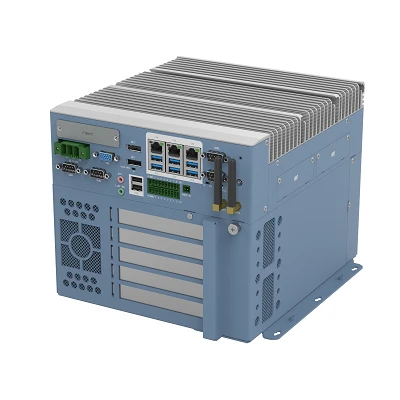

KMDA-5921/S002 | Fanless Box Computer
Intel® Gen 8th /9th Coffee Lake LGA1151 series CPU, 2*LAN, 4*USB3.1, 1*VGA, 1*DP,1*HDMI, 2*4K Displays,2*SATA3.0,1*PCIe X16, 1*PCIe X4, 2*32-bit PCI , DC 9-36V.
KMDA-5921/S002 is a new fan-less and high-performance box computer by JHC. It is powered by Intel® Gen 8th /9th Coffee Lake series processor, Q370 PCH, 4*DDR4 2400/2666MHz, dual channel, up to128 GB.1*VGA+2*DP,3independentdisplays, 3*LAN, 6*USB3.1, 2*USB2.0, 1*full size Mini PCIe with SIM slot, support 4G&Wifi/BT, 1*M.23052B-Key with sim slot, support5G, 1*M.2 E-Key support WiFi 6. Multi-channel PCIe standard slot supports a variety of high-speed expansion interface modules. 1*M.2 2280 M- Key support NVME?2*2.5“SATA3.0, support RAID0,1. Rich expansion flexibility, industrial level product design which is very suitable for industrial automation, AI edge computing, small intelligent workstations, multi-media service systems, high-precision machine vision and so on.
Specification
System | CPU | Intel® Coffee lake 9th/8th-Gen Core™ i7/i5/i3/Pentium/Celeron LGA1151 processor, up to 8C/16T |
Chipset | Intel® Q370 PCH |
System Memory | 4*260-Pin SODIMM, DDR4 2666/2400MHz, dual channel, up to 128GB |
Expansion | 1*full size Mini PCIe(PCIe+USB signal?can set as mSATA via BIOS? with SIM slot?support 4G&Wifi/BT |
1*M.2 E-Key 2230, support WiFi6/BT5.0?1* M.2 3052 B-Key with SIMslot?support 5G |
2*PCIe X16?x8 signal)+2*PCIe X4 or 1*PCIex16+1*PCIex4+2*32-bit PCI |
support max1*150W GPU (the length of the GPU must be less than 210mm)+ |
2*75W AI Module (the length of the module must be less than 230mm) |
Intel Graphics | Intel UHD Graphics, Supports DirectX12, OpenGL 4.5 and OpenCL 2.1 or PCIe X16 GPU |
DP1.2 max. res. 4096*2304@60Hz, VGA max. res. 1920*1200@60Hz, 3 independent displays |
Audio | Optional support Realtek ALC662VD controller, Audio out and MIC, support 5.1 channel |
LAN | 2*Intel I210AT PCIe Gig. Ethernet; 10/100/1000Mbps? |
1*Intel I219LM PCIe Gig. Ethernet, support iAMT12.0 |
Storage | 2*2.5”SATA3 easy to plug and remove the hard disk tray, support Raid 0/1, support max 6G bit/s transmission rate?1*M.2 2280 M-Key?PCIex4 Gen3.0, support NVME |
DIO | 16-bit iso DIO, 8-bit Iso. DI(High:5-24V,Low:0-1.5V) and 8-bit Iso. DO(200mA) |
I-Port | Optional support USB2.0? 16 bit DIO, or Mini PCIe and M.2, ect serial |
I/O ports | 3*RJ45 Gig-LAN; 6*USB3.1 gen2.0 TYPE A?support max 10G bit/s transmission rate; 2*USB2.0 |
16-bit iso DIO |
2*RS232/422/485 set via BIOS?2*RS232 |
1*Audio-out and 1*MIC |
1*VGA+2*DP |
LED | 1*Power LED, 1*HDD LED,3*CPU LED |
Control SW | 1*Power SW?1*Remote SW?1*AT/ATX SW, 1*Clear CMOS SW |
Power Supply | DC IN 9-36V 3-pin Term. 7.62mm?With short circuit, over voltage and over current protection |
Power Consumption: 48.5W(I7-9700 CPU/16G DDR4/128G SSD) |
TCM/TPM | Optional support |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows* 10 Enterprise & IOT Enterprise?64 ??(CFL-R) Ubuntu*?SuSe*?Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* VxWorks* 7 (CFL-R) |
Mechanical | Structure | Aluminum-magnesium alloy, SGCC frame |
Color | White+blue |
Mounting | Desktop Mounting |
Dimension | (W*H*D)?230*273*203mm |
Net weight | 7.25kg |
Environmental | Operating temperature | -20?60?, SSD, air flow |
-10?55°C,HDD, air flow |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~90%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz /random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
Certification/EMC | CE/FCC Class B |
