| Key Features
|
Intel® Gen 8th /9th Coffee Lake LGA1151 series CPU, 2*LAN, 4*USB3.1, 1*VGA, 1*DP, 1*HDMI, 2*4K Displays, 2*SATA3.0, 1*PCIe X16, 1*PCIeX4, wide power input DC 9-36V

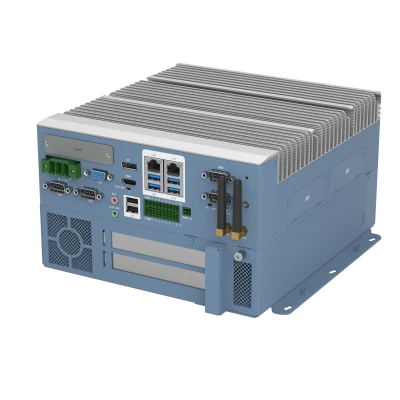

KMDA-5920 is a new fan-less and high-performance box computer by JHC. It is powered by Intel® Gen 8th /9th Coffee Lake series processor, H310 PCH, 2*DDR4 2400/2666MHz, up to 64GB. 1*VGA+1*DP+1*HDMI, 3 display ports, 2*LAN, 4*USB3.1, 2*USB2.0, 1*full size mSATA with SIM slot, support 4G, 1*M.2 E-Key support WiFi6, 2*2.5“SATA3 easy to plug and remove the hard disk tray. Support multiple PCIe expansion, flexible to meet application requirements. Rich expansion flexibility, industrial level product design which is very suitable for industrial automation, AI edge computing, small intelligent workstations, multimedia service systems, high-precision machine vision and so on.
Specification
System | CPU | Intel® Coffee lake 9th/8th-Gen Core™ i7/i5/i3/Pentium/Celeron LGA1151 processor, up to 8C/16T |
| Chipset | Intel® H310 PCH | |
| System Memory | 2*260-Pin SODIMM, DDR4 2666/2400MHz, up to 64GB | |
Expansion | 1*M.2 E-Key 2230, support WiFi 6/BT 5.0 | |
| 1*PCIe X16, from CPU, gen3.0, support max150W GPU (the length of the GPU must be less than 210mm) | ||
1*PCIe X4 (in X16 slot), from PCH gen 2..0 support max 75W AI Module (the length of the module must be less than 230mm) | ||
Intel Graphics | Intel UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1 or PCIe GPU | |
| DP1.2 max. res. 4096*2304@60Hz, VGA max. res. 1920*1200@60Hz, HDMI max. res. 4096*2160@24Hz | ||
| 2 independent displays, 1 Copy Display | ||
| Audio | Optional support Realtek ALC662VD controller, Audio out and MIC, support 5.1 channel | |
LAN | 1*Intel I210AT PCIe Gig. Ethernet; 10/100/1000Mbps? | |
| 1*Intel I219LM PCIe Gig. Ethernet | ||
Storage | 2*2.5”SATA3 easy to plug and remove the hard disk tray, support max 6G bit/s transmission rate? | |
| 1*full size Msata ( support SATA+USB signal ? with SIM slot?support 4G | ||
| DIO | 16-bit iso DIO, 8-bit Iso. DI(High:5-24V,Low:0-1.5V) and 8-bit Iso. DO(200mA) | |
| I-Port | Optional support USB2.0? 16-bit DIO, or serials | |
I/O ports | 2*RJ45 Gig-LAN; 4*USB3.1 gen1.0 TYPE A?support max 5G bit/s transmission rate; 2*USB2.0 | |
| 16-bit iso DIO | ||
| 2*RS232/422/485 set via BIOS ?2*RS232 | ||
| 1*Audio-out and 1*MIC, | ||
| 1*VGA+1*DP+1*HDMI | ||
| LED | 1*power LED, 1*HDD LED,3*CPU LED | |
| Control SW | 1*Power SW?1*Remote SW?1*AT/ATX SW, 1*Clear CMOS SW | |
Power Supply | DC IN 9-36V 3-pin Term. 7.62mm?With short circuit, over voltage and over current protection | |
| Power Consumption: TBD | ||
| TCM/TPM | Optional support | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows 10 Enterprise & IOT Enterprise?64 ??(CFL-R) Ubuntu?SuSe?Redhat Enterprise 1,2 (Kernel 4.14) (CFL-R) Wind River VxWorks 7 (CFL-R) | |
Mechanical | Structure | Aluminum-magnesium alloy, SGCC frame |
| Color | White+blue | |
| Mounting | Desktop Mounting | |
| Dimension | (W*H*D)?230*273*143mm | |
| Net weight | TBD | |
Environmental | Operating temperature | -20?60?, SSD, air flow |
| -10?55°C,HDD, air flow | ||
| Storage Temperature | -40°C~85°C | |
| Storage Humidity | 10~90%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | |
Certification/EMC | CE/FCC Class B |
