| Key Features - Aluminum chassis, fanless design
- Intel® Kabylake-S/Skylake-S CPU
- 2*DDR4 2400/2133MHz SODIMM, Up to 32GB
- DP+HDMI+VGA, Optional 3 independent displays
- 2*LAN, 4*USB3.0, 3*USB2.0, 4*COM,(8+16)bit DIO
- 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
- 1*mSATA, 2*2.5" SATA, suppprtRaid0,1(Q170)
- Support Intel® iVpro andTPM2.0
- DC 12~24V Wide Power Input
Datasheet |

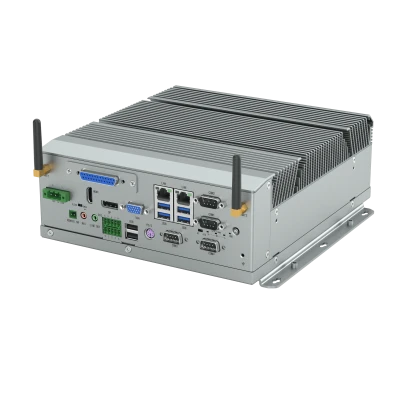

KMDA-3610 | Fanless Box Computer
Intel® Skylake-S/Kabylake-S CPU, 2*LAN, 4*USB3.0, HDMI, DP, VGA, 3 displays, 2*SATA3, DC-IN 12~24V.
KMDA-3610 is a high-performance, fanless Box Computer. It is powered by Intel® Skylake-S/Kabylake-S CPU, 2*DDR4 2133/2400MHz dual channel memory, up to 32GB. DP1.2+HDMI1.4b +VGA. 2*GbE LAN, 4*USB3.0, 1*Mini PCIe supports 4G and Wifi/BT. 2*2.5" SATA HDD/SSD, 1*mSATA, 1*M.2, used for storage. With DC 12~24V wide power input, high performance, multi IO, widely used for Intelligent transportation, VideoSecurityandMachine Vision.
Specification
System | | CPU | Gen.6th Intel® Skylake-S/gen.7th Intel® Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU LGA 1151 socket | | Chipset | Intel® H110, Optional Intel® Q170 Chipset | | System Memory | 2*260-Pin SODIMM, dual channel DDR4 2133/2400MHz, up to 32GB | | Expansion | 1*Full size Mini PCIe with PCIe +USB signal and SIM slot, support 4G LTE/Wifi/BT wireless module | | Intel Graphics | Gen. 9th Intel® HD Graphics, HEVC/H265 HW HD en/decoder, DP1.2 max. res. 4096*2304@60Hz, HDMI1.4b max. res. 3840*2160@30Hz, VGA max. res. 1920*1200@60Hz, Optional 3 independent displays(In Intel® Q170 Chipset) | | Audio | Realtek ALC662VD controller, Audio out and MIC | | LAN | 1*Intel I211AT+1*Intel I219LM PCIe Gig. Ethernet, 10/100/1000Mbps, support iVpro(Intel® Q170) | | Storage | 2*2.5" HDD/SSD bay, support RAID0/1(Intel® Q170 Chipset) 1*mSATA(SATA); 1*M.2 2242 B-key(SATA&USB) | | DIO | 8-bit DIO+16-bit DIO,TTL signal, programmable input and output | | I/O ports | 2*RJ45 Gig-LAN(Front)
4*USB3.0 Type A (Front); 2*USB2.0 Type A(Front); 1*USB2.0 Type A(inside) 8-bit DIO, 2*10-pin terminal, 16-bit DIO(DB25), 1*PS/2(Front) 2*RS232/422/485 DB9(Front), 2*RS232 DB9 (Front),
Audio-out and 1*MIC (Front)
1*HDMI +1*DP+1*VGA(Front) | | LED | 1*Power LED, 1*HDD LED, 3*CPU temp. LED?Red is warning , Yellow is high, Green is normal) | | Control SW | 1*Power button, 1*2pin ter. power-on signal, 1*AT/ATX Select SW, 1*Clear CMOS Select SW | | Power Supply | DC 12~24V Input, 3-pin ter. connector(Front), Consumption:19V/3.6A(I7-6700T CPU 16GB DDR4) | | Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | | OS Support | Windows 7, Windows 10, Linux Fedora, Ubuntu |
|
Mechanical
| | Structure | Aluminum chassis, SGCC frame | | Color | Silver grey | | Mounting | Desktop Mounting | | Dimension | (W*H*D):221*251*88mm | | Net weight | TBD |
|
Environmental
| | Operating temperature | -20°C~65°C – Fanless, 35W CPU with wide operating temp. SSD, airflow
-10°C~55°C – Fanless, 35W CPU with HDD, airflow | | Storage Temperature | -40°C~85°C | | Storage Humidity | 10~90%@40°C, Non-condensing | | Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) | | Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | | Certification/EMC | CE/FCC Class B |
|
