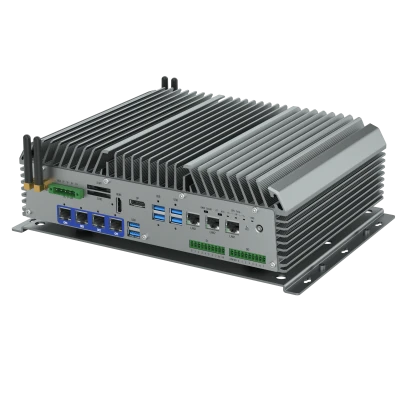

KMDA-3602 | GPU In-vehicle Computer

Key Features

  • Aluminum Chassis, CPU Fanless Cooling
  • Intel  Kabylake-S/Skylake-S Core I3/I5/I7 CPU
  • 2*DDR4 2133/ 2400MHz SODIMM, Up to 32GB
  • 1*MXM 3.1 socket, support NVIDIA/AMD GPU
  • CPU:1*DP+1*HDMI+1*VGA, GPU:3*DP+1*HDMI
  • 3*Gig LAN,4*POE,6*USB3.0,3*USB2.0
  • 2*COM,16bit Isolated DIO, Audio out and Mic
  • 2*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
  • 1*mSATA, 1*2.5" SATA bay, Anti-vibration design
  • DC 6~48V Wide Power, ITPS Function

Datasheet

KMDA-3602 | GPU In-vehicle Computer

Intel® Skylake-S/Kabylake-S Core I3/I5/I7 CPU,2*LAN,4*POE,6*USB3.0, MXM3.1 GPU 6*4K display, 16 bit Isolated DIO, ITPS power supply

KMDA-3602 is a high-performance In-vehicle computer from JHCTECH, with the newest cooling design. It is powered by Skylake-S/Kabylake-S CPU and Dual DDR4 2133MHz SODIMM memory. It features NVIDIA or AMD MXM3.1 GPU module, 1*DP and 1*HDMI(Intel HD 4K), 3*DP and 1*HDMI (GPU 4K), 3*LAN, 4*POE,6*USB3.0, 2*Mini PCIe and 1*M.2 which support 4G, Wifi/BT
and GPS communication, 1*mSATA and 1*2.5''SATA bay. DC6-48V wide power input, ITPS delay power on/off function. With CPU+GPU dual processor, multi LAN, multi-display, multi wireless communication and anti-vibration design,it is suitable for mobile law enforcement vehicles and special engineering vehicles.


Specification

System
CPUGen.6th Intel  Skylake-S/gen.7th Int ®el  Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU,
LGA 1151 socket , suffix T(TE), and consumption TDP 35W

RAM2*260-Pin SODIMM, dual channel DDR4 2133/2400MHz, up to 32GB
Expansion1*Full size Mini PCIe with PCIe+USB and SIM slot,1*Half size Mini PCIe with PCIe+USB,1*M.2 2242 B-key with PCIe+SATA3+USB, 1*Full size mSATA(SATA3+USB), support 4G LTE/Wifi and BDS/GPS
GraphicsGen. 9th Intel  HD Graphics, HEVC/H265 HW HD en/decoder, DP1.2 max. res. 4096*2304@60Hz, HDMI1.4b max. res. 3840*2160@30Hz, VGA max. res. 2650*1600@60Hz, 3 independed display
GPUMXM3.1 NVIDIA GTX/AMD RX series GPU module,support 3*DP1.2/1.3 and 1*HDMI1.4b/2.0 4K/5K display
AudioRealtek ALC662VD controller, Audio out and MIC
LAN2*Intel I210AT PCIe Ethernet; 4*Intel I210AT POE, TDP 15.4W/port; 1*Intel I219LM support iVpro
Storage1*2.5" HDD/SSD bay, SATA 6.0Gbps; 1*mSATA; 1*M.2 2242 B-key
DIO16 bit 2.5KV Optical Isolation DIO, 8 bit input(High:5-24V,Low:0-1.5V) and 8bit output(100mA)

I/O Ports7*RJ45 Gig-LAN and POE(Front)
6*USB3.0 Type A (Front ); 2*USB2.0 Type A(Rear) ,1*USB2.0 Type A(Inside)
8bit DI:1*10-pin ter. connecter and 8bit DO: 1*10-pin ter. connecter(Front)
2*RS232/422/485 DB9(Rear)
1*Audio-out and 1*MIC, 3.5mm phone jack(Rear)
1*HDMI +1*DP+1*VGA(Front); 3*DP+1*HDMI(Rear)

LED1*Power LED, 1*HDD LED, 3*CPU term. LED?Red is warning , Yellow is high, Green is normal)
Control SW1*Power button, 1*Reset button(Front);1*2pin ter. power-on signal(Rear), 1*AT/ATX select dip(Front)
Power Supply

DC 6~48V ITPS w/ACC signal in 5-pin ter.(Front),Consumption:TDP 24V/4.83A(I5-7500T+GTX 1060M)

Watchdog TimerWatchdog timeout programmable via software from 1 to 255 seconds
OS Support Windows 7, Windows 10, Linux Fedora Ubuntu
Mechanical
Structure Aluminum and SGCC chassis
Color Silver
MountingDesktop Mounting, with Anti-Vibration plane
Dimension(W*H*D)?284*222*81.2mm
Weight 5.60KG
Environmental
Operation temperature

-20°C?65°C – Fanless, 35W CPU without GPU,and with wide operating temp. SSD, airflow
-10°C?50°C – Fanless, 35W CPU+80W GPU

Storage temperature -40°C ~ 85°C
Storage humidity10~90%@40°C, non-condensing
Vibration

5 grms/5~500Hz/random/in working status(SSD); 1 grms/5~500Hz/random/in working status(HDD)

Shock

50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?

EMCE-Mark, CE/FCC Class A
Ordering info
KMDA-3602/S001

GPU In-Vehical Computer, Intel  ®Q170+SKL/KAL-S LGA1151 CPU,MXM3.1 GPU,3*LAN,4*POE,6*USB3.0,3*USB2.0, 2* COM,16*Iso. DIO,1*M.2,2*Mini PCIe, 2*HDMI,4*DP,1*VGA,Audio,2*I-port, 1*2.5" SATA bay,1*mSATA, ITPS DC 6~48V

KMDA-3602/S00

GPU In-Vehical Computer, Intel  Q170+SKL/KAL-S LGA1151 CPU,7*LAN,6*USB3.0,3*USB2.0,2*COM,16*DIO, 1* M.2,2*Mini PCIe,1*HDMI,1*DP,1*V GA,Audio,2*I-port, 1*2.5" SATA bay,1*mSATA, ITPS DC 6~48V

NVIDIA GT 1030

MXM3.1 Type A, NVIDIA GT 1030, GDDR5 2GB, 64bit, 384 cuda cores

NVIDIA GTX 1050TI

MXM3.1 Type A, NVIDIA GTX 1050TI, GDDR5 4GB, 128bit, 768 cuda cores

NVIDIA GTX 1060MXM3.1 Type B, NVIDIA GTX 1060, GDDR5 6GB, 192bit, 1280 cuda cores
PA-220DC24AC/DC power adapter, DC 24V/9.17A 220W
PA-120DC19AC/DC power adapter, DC 19V/6.32A 120W
