| Key Features - Large aluminum chassis, fanless design
- Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU 2*DDR4 2133/ 2400MHz SODIMM, Up to 32GB
- 1*DP (4K), 1*HDMI(4K) and 1*VGA
- 3*LAN, 4*POE Opt. 8*LAN, 6*USB3.0, 3*USB2.0
- 4*COM, 16 bit Iso. DIO, Audio out and Mic
- 2*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
- 1*mSATA, 2*2.5" SATA, suppprt Raid0,1
- Support Intel iVpro and TPM2.0
- DC 6~48V Wide Power Input
Datasheet |

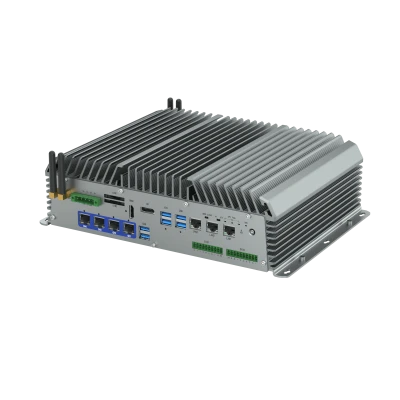

KMDA-3601 | Fanless Box Computer
Intel® Skylake-S/Kabylake-S Core I3/I5/I7 CPU, 2*LAN, 4*USB3.0, Dual 4K display,4*COM, DC-IN 6~48V, 2*I-Ports.
KMDA-3601 is a high-performance Box Computer with an aluminum chassis and fanless design. It is powered by the latest Intel®Skylake-S/Kabylake-S CPU and DDR4 2133MHz dual-channel memory up to 32GB. It features gen.9th Intel HD Graphics, DP1.2 and HDMI1.4b dual 4K display, 3*Intel LAN, 4*POE, 6*USB3.0,1*Mini PCIe and 1*M.2 which support 4G and Wifi/BT. The 2*2.5" SATA HDD/SSD supports Raid0/1. With DC 6-48V wide power input, high performance and multi IO, it is applied for Intelligent Transportation(ITS), Video Security and Machine Vision.
Specification
System | | CPU | Gen.6th Intel? Skylake-S/gen.7th Intel? Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU, LGA 1151 socket | | Shipset | Intel? Q170 | | System Memory | 2*260-Pin SODIMM, dual channel DDR4 2133/2400MHz, up to 32GB | | Expansion | 1*Full size Mini PCIe(PCIe+USB)with SIM slot,1*M.2 2242 B-key(PCIeX1+SATA3+USB)with SIM slot,
1*Half size Mini PCIe(PCIe+USB), support 2*4G LTE and Wifi/BT | | Graphics | Gen. 9th Intel? HD Graphics, HEVC/H265 HW HD en/decoder, DP1.2 max. res. 4096*2304@60Hz, HDMI1.4b max. res. 3840*2160@30Hz, VGA max. res. 2650*1600@60Hz, 3 independed display | | Audio | Realtek ALC662VD controller, Audio out and MIC | | LAN | 2*Intel I210AT PCIe Gig. Ethernet; 1*Intel I219LM PCIe Gig. Ethernet support iVpro
4*Intel I210AT Ethernet with POE function, TDP 15.4W/port, Optional 8/11*Intel I210AT Ethernet | | Storage | 2*2.5" SATA HDD/SSD bay, cooling by aluminum chassis; 1*mSATA; 1*M.2 2242 B-key | | DIO | 16-bit 2.5KV Optical Iso. DIO, 8-bit input(High:5-24V,Low:0-1.5V) and 8-bit output(200mA) | | I-port | Optional 1*LPT, 16-bit DIO, 1*USB2.0 or Mini PCIe and M.2 I/O ports(such as serial ports) | | I/O ports | 3*RJ45 Gig-LAN, 4*RJ45 Gig-POE optional to be 8/11*RJ45 Gig-LAN (Front) 6*USB3.0 Type A (Front); 2*USB2.0 Type A(Rear) ,1*USB2.0 Type A(Inside)
8-bit DI:1*10-pin ter. and 8-bit DO: 1*10-pin ter. (Front), Opt.24-bit DIO 2*14-pin ter.(Front)
2*RS232/422/485 DB9(Rear), 2*RS232 DB9(Rear)
1*Audio-out and 1*MIC, 3.5mm phone jack(Rear)
1*HDMI +1*DP+1*VGA(Front) | | LED | 1*Power LED, 1*HDD LED, 3*CPU term. LED (Red is warning , Yellow is high, Green is normal) | | Control SW | 1*Power button, 1*Reset button;1*2pin ter. power-on signal, 1*AT/ATX sw, 1*CMOS/Clear sw | | Power Supply | DC 6~48V Input, 5-pin ter. (Front), Consumption: TDP 19/2.0A(I5-7500T CPU,4GB Ram,128G SSD) | | Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | | OS Support | Windows 7, Windows 10, Linux Fedora Ubuntu
(Note: Gen.7th Intel® Kabylake-S processors don’t support Windows 7) |
|
Mechanical
| | Structure | Large U form aluminum chassis, SGCC frame | | Color | Silver and Grey | | Mounting | Desktop Mounting | | Dimension | (W*H*D): 284*222*84.7mm | | Net weight | 4.65kg |
|
Environmental
| | Operating temperature | -20°C?65°C –Fanless, 35W CPU with wide operating temp. SSD, airflow
-10°C?55°C –Fanless, 35W CPU with HDD, airflow | | Storage Temperature | -40°C~85°C | | Storage Humidity | 10~90%@40°C, Non-condensing | | Vibration | 5 grms/5~500Hz/ random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) | | Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | | Certification/EMC | CE/FCC Class B |
|
