Intel® Meteor Lake CPU, 2*HDMI, 3*LAN, 6*COM, 16bit Iso. DIO, 6*USB?2*CAN?Audio?1*Mini PCIe, 1*mSATA, 1*M.2 M-Key, DC 9-36V.

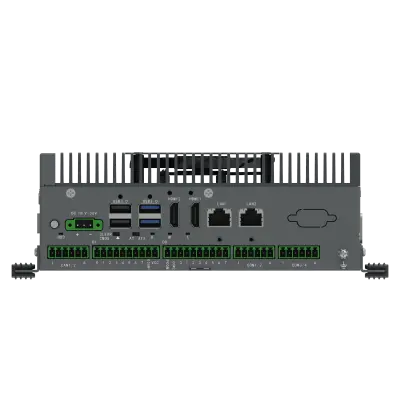

KMDA-3306-S002 is a high-performance, small volume, compact embedded box computer, designed with SGCC box structure and aluminum extruded heat dissipation shell. With Intel Meteor Lake series processors, rich IO functions and shock-absorbing design, are suitable for application scenarios such as AGV/AMR, machine vision, and embodied intelligent robots.
Specification
| CPU | Intel® Meteor Lake Soc CPU?2*P-core +8*E-core +2*LPE-core hybrid architecture?TDP 15W |
| GPU | Intel® Graphics?4*Xe GraphicsCore?DirectX12.2? OpenGL 4.6?OpenCL 3.0?Highest 7680x4320@60Hz |
| NPU | Intel® AI Boost? Support OpenVINO™?WindowsML?DirectML?ONNX RT |
| Memory | 1*DDR5 SO-DIMM slot, support 5600MHz, up to 96GB |
| Storage | 1*Full Size mSATA?up to SATA6.0 Gbps |
| LAN | 3*LAN?Intel I210AT, 10/100/1000Mbps adaptive?supports WOL |
| USB | 2*USB3.2 (TypeA gen2.0)?4*USB2.0 (TypeA) |
| CAN | 2*CAN |
| COM | 6*COM?COM5/6: 2*RS232/485?COM1/2: 2*RS232?COM3/4: 2*RS485? |
| I/O Interface | 1*16bit Iso. DIO (2*10Pin Phoenix terminal) |
| Display | 2*HDMI |
| Audio | Realtek ALC897, Supports 5.1 channels?Audio out + Mic |
| Expansion | 1*Full Size Mini PCIe?with SIM card slot?PCIe X1+USB2.0 signal?supports 4G LTE and BT 1*M.2 2280 M-Key , supports NVME storage |
| Switch button | 1*Power button w/LED?1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW?RS232/485 Mode Switch |
| Pilot lamp | 1*Power LED, 3*CPU temp LED?Red is warning , Yellow is high, Green is normal? |
| Power supply | DC 9-36V, 1*3-pin phoenix term, with short circuit, over voltage/current protection?TDP?27.36W |
| Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | Windows 11*IoT enterprise? Windows 10*IoT enterprise?Android?SUSE?Ubuntu22.04 Version above?Wind River?Red Hat*Enterprise?Wind River VxWorks*7?Yocto |
| Mechanical | Aluminum extruded profile heat dissipation housing, SGCC chassis |
| Color | Silver Gray |
| Mounting | Desk mounting with anti-vibration non-slip foot pads, opt Din-Rail mounting |
| Dimension | (W*D*H)?223.5*118*75.2mm?With mounting bracket??190*118*70mm?Without bracket? |
| Net weight | 1.842kg |
| Operating temperature | -20?70?, wide temp SSD, airflow |
| Storage temperature | -40°C~85°C |
| Storage humidity | 10~95%@40°C,Non-condensing |
| Vibration | 5grms/5~500Hz/ random/in working(SSD) |
| Shock | 50g peak acceleration(11ms duration)(SSD) |
| EMC/Certification | CE/FCC Class A |
