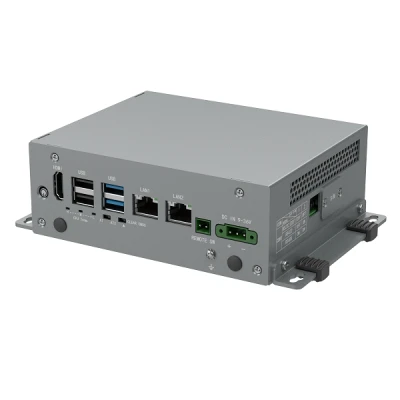

KMDA-3302

Key Features:

  • Intel® Tiger lake U Soc CPU
  • SGCC box design, 4-wire speed control fan for heat dissipation
  • 1*DDR4 3200MHz SODIMM?up to 32GB
  • 1*HDMI 4K display output
  • 2*I210AT Gigabit Ethernet port, 2*USB3.2?2*USB2.0
  • 8bit DIO, 1*RS232/422/485, 1*RS232
  • 1*M.2 2230 E-Key, supports for WiFi/BT and other functional extensions
  • 1*M.2 B-Key, with SIM card slot, supports 5G NR wireless module
  • 1*Mini PCIe, supports functional cards such as CAN, optional switch to mSATA
  • 1 * Full Size mSATA for storage
  • DC 9~36V, with short circuit, over voltage and over current protection

Datasheet

KMDA-3302 | Embedded Box PC

Intel® Tiger lake U Soc CPU, HDMI, 2*LAN, 2*COM, 8bit DIO, 4*USB 1*Mini PCIe, 1*mSATA, 1*M.2 B-Key, 1*M.2 E-Key, DC 9-36V.

KMDA-3302 is a high-performance, small volume, and compact embedded box computer, designed with an SGCC box structure and equipped with a 4-wire speed control fan for heat dissipation. Powered by Intel® Tiger lake U Soc series CPU, with rich IO functions, slim body, anti-vibration design, suitable for mobile portable terminals, advertising machines, logistics visual inspection, AGV, AMR and other application scenarios.


Specification

CPU

Intel® Tiger lake U Soc CPU (core i3-1115G4/i5-1135G7/i7-1165G7, Celeron 6305E)

 Memory

1*DDR4 SO-DIMM slot, support 3200MHz, up to 32GB

Expansion

1*full size Mini PCIe?with PCIe X1+USB2.0 signal?support for CAN2.0 and other functional expansion modules, can automatically detect and switch to mSATA

1*M.2 3042/3052 B-Key, with SIM card slot?PCIe X1+USB2.0 signal?supports wireless function modules such as 4G LTE or 5G NR

1*M.2 2230 E-Key with PCIe X1+USB2.0 signal, supports WiFi/BT module and other functional expansion modules

Graphics

Intel UHD Graphics or iRIS® X? Graphics , DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI max res. 4096x2304@60Hz

LAN

2*Intel I210AT, 10/100/1000Mbps adaptive?supports WOL

Storage

2*Full Size mSATA, up to SATA6.0 Gbps, one is PCIeX1 signal automatic detection option

I/O Interface

2*LAN?1*HDMI?2*USB3.2 (TypeA gen2.0) , up to 10.0Gbps?2*USB2.0 (TypeA)?

2*COM?1*RS232/422/485 select and change modes through a dial switch, 1*RS232??1*MIO  (optional support for built-in functional module interface expansion, such as CAN module??1*8bit DIO (2*5Pin Phoenix terminal)?1*SIM card slot

LED

1*Power LED, 3*CPU temp LED?Red is warning , Yellow is high, Green is  normal?

Control SW

1*Power button w/LED?1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW, RS232/422/485 mode conversion switch for COM1

Power supply

DC 9-36V, 1*3-pin phoenix term, with short circuit, over voltage and over current protection

TDP: TBD

Watchdog timer

Watchdog timeout programmable via software 1 to 255 second

OS Support

Windows 11*IoT enterprise? Windows 10*IoT enterprise?Android?SUSE?Ubuntu?Wind River?Red Hat*Enterprise?Wind River VxWorks*7?Yocto

Mechanical

SGCC chassis

Color

Industrial gray

Mounting

Desk mounting with anti-vibration non-slip foot pads, opt Din-Rail mounting

Dimension

(L*W*H)?172*116*54mm?Including Desk mounting parts??144.8*125.22*50?Including Din-Rail mounting parts??

144.8*116*50?Excluding mounting parts?

Net weight

0.89 KG

Operating temperature

-20?60?,  wide temp SSD, airflow

Storage temperature

-40°C~85°C

Storage humidity

10~95%@40°C, Non-condensing

Vibration

5grms/5~500Hz/  random/in  working(SSD);  1grms/5~500Hz/random/in working(HDD)

Shock

50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?

EMC and Certification

CE/FCC Class A
