KMDA-3230

KMDA-3230 | FANLESS BOX COMPUTER

Intel® Whiskey lake U CPU, 2-CH DDR4, 1*HDMI, 1*DP, 5*G-LAN, 5*COM, 4*USB3.1, 2*USB2.0, DC 9~36V

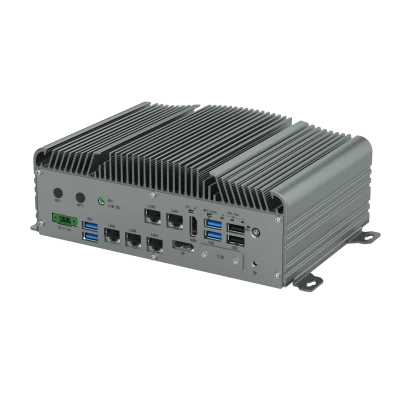

KMDA-3230 is a fanless Box Computer, It's equipped with the Intel® Whiskey lake U architecture. It is powered by the 8th generation Intel® core TM i3/i5/i7/Celeron U series processors, 2-Ch DDR4, 2* SO-DIMM up to 32GB.1*HDMI, 1*DP, dual 4K display interface,1*Line out&Mic high fidelity audio interface. It has not only rich IO interfaces but also multiple extension interfaces, 1*M.2 support NGFF-2230, and 1*Mini PCIe with 1*SIM card slot, support 3G/4G /Wifi/ BT/ GPRS wireless functions, and is easy to remove. 1*mSATA, 1*SATA3.0 for storage.DC 9~36V wide power input, the aluminum profile bottom shell design is good for heat dissipation of hard disk. The machine is small, powerful and delicate, suitable for industrial Internet of things, machine vision and other applications.

Specification

[Key features]

Aluminum chassis, Fanless design

Intel® CoreTM i3/i5/i7/Celeron U seriers CPU

2*DDR4 2400MHz SODIMM, Up to 32GB

1*HDMI?1*DP?Support dual 4K display

1*Line out&Mic?4*USB3.1?2*USB2.0

5* GbE LAN?5*COM ?8-bit Iso DIO

1*mSATA?1*2.5”SATA tray for storage

1*M.2?2230 E-Key, 1*Mini-PCIe?1*SIM Slot

DC 9~36V Wide Power Input

[Applications]

Industrial Internet of things, machine vision and other applications.

[Certification]

CE/FCC Class B

[Specification]

1. Structure: Aluminum chassis, SGCC frame
2. Color: Silver grey
3. Net weight: 2.29KG
4. Mounting:Desktop mounting, Wall-mounting

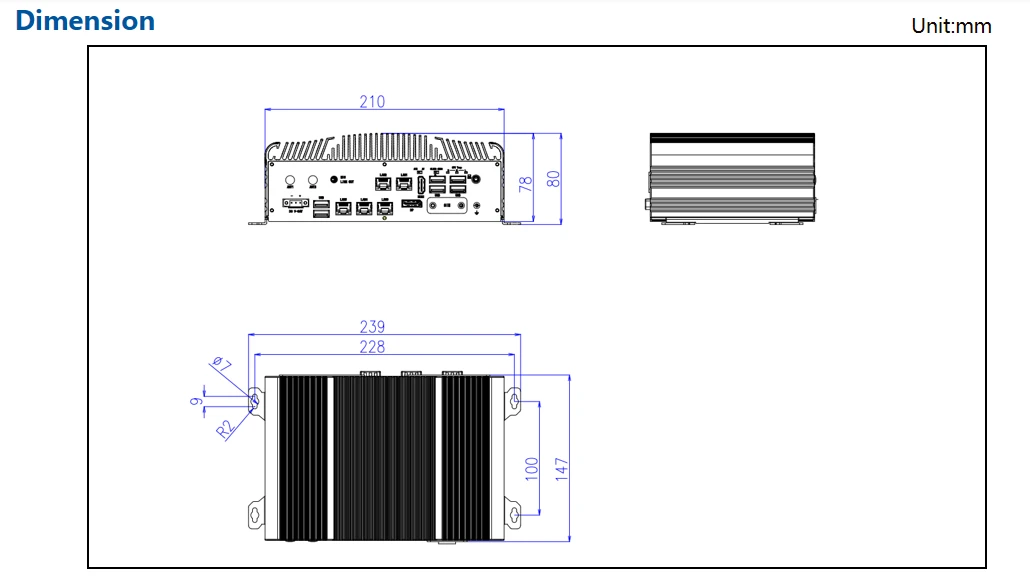

5. Dimension:(W*H*D)210*147*78mm
6. Operating temperature:
   -20?~70??with wide operating temp. SSD, airflow
7. Storage temperature: -40?~+85?
8. Storage Humidity:10~90%@40°C, Non-condensing
9. Vibration:
   5grms/5~500Hz/random/in  working(SSD);
   1grms/5~500Hz/random/in working(HDD)
10. Shock:
    50g peak acceleration(11ms duration)(SSD);
    20g peak acceleration(11ms duration)(HDD?
11. Certification/EMC:CE/FCC Class B
