| Key Features - Aluminum chassis, fanless design
- Intel® Skylake-U Celeron/Core I3/I5/I7 CPU
- 2*DDR4 2133MHz SODIMM, Up to 32GB
- 1*DP, 1*HDMI, Dual 4K display
- 3*Gig LAN, 4*POE, 4*USB3.0, 5*USB2.0(one inside)
- 6*COM, 1*PS/2, 16bit Iso. DIO, 8bit DIO, Audio out/Mic
- 1*F-Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
- 1*F-mSATA, 1*2.5" SATA HDD/SSD driver bay
- Support Intel iVpro and TPM2.0
- DC 9~36V Wide Power Input
- Mechanical design flexible to the desktop mount
Datasheet |

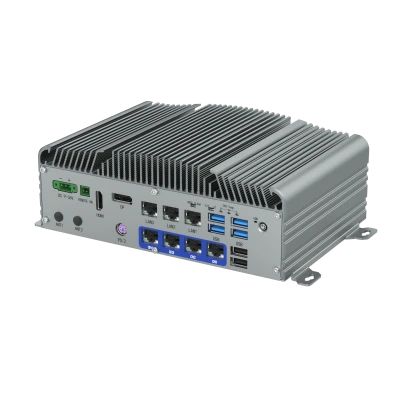

KMDA-3202?Fanless Box Computer
Intel® Skylake-U CPU, 3*LAN, 4*POE, 6*COM, 9*USB, 16bit Iso. DIO, dual 4K display, TPM2.0, iVpro technology, DC-IN 9~30V, CPU Temp. show in LED.
KMDA-3202 is a new industrial design Box Computer of JHCTECH with an aluminum chassis and fanless design. It is powered by Intel® Skylake-U/ Kabylake-U CPU and DDR4 2133MHz dual-channel memory up to 32GB. It features gen.9th Intel HD Graphics, DP and HDMI dual 4K display, 3*Intel LAN, 4*POE, 6*COM,4*USB3.0, 8bit DIO+16bit Iso. DIO, 1*Mini PCIe and 1*M.2 which support 4G and Wifi/BT. 1*2.5" SATA HDD/SSD, 1*mSATA, Dual storage. Support TPM2.0 and iVpro technology. With DC 9-30V wide power input, the Aluminum chassis is designed for HDD cooling. widely used for AI, Intelligent Transportation(ITS), and Machine Vision.
Specification
System | | CPU | Gen.6th Intel® Skylake-U Celeron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU
Gen. 7th Intel® Kabylake-U Celeron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU | | System Memory | 2*260-Pin SODIMM, dual channel DDR4 2133Mhz, up to 32GB | | E^pansion | 1*Full size Mini PCIe(PCIeX1+USB)with SIM slot,1*M.2 2242 B-key(PCIeX1+USB)with SIM slot,support 2*4G LTE and Wifi/BT | | Graphics | Gen. 9th Intel® HD Graphics, HEVC/H.265 HW HD en/decoder, DP max. res. 4096*2160@60Hz, HDMI max. res. 3940*2160@30Hz, Dual independed display | | Audio | Realtek ALC662VD controller, support 5.1 channel | | LAN | 2*Intel I211AT(opt. I210AT) PCIe Gig. Ethernet; 1*Intel I219LM PCIe Gig. Ethernet support iVpro,
4*Intel I211AT(opt. I210AT) Ethernet with POE function, TDP 15.4W/port | | Keyboard/mouse | USB&PS/2 keyboard and mouse | | Storage | 1*2.5" SATA HDD/SSD bay, cooling by aluminum chassis, SATA3 6.0Gbps; 1*mSATA, support AHCI | | DIO | 8-bit TTL singal, programmable input and output; 8-bit Iso. DI(High:5-24V,Low:0-1.5V) and 8-bit Iso. DO(100mA) | | I/O ports | 3*RJ45 w/LED Gig-LAN (Front), 4*RJ45 w/LED POE Gig-LAN (Front)
4*USB3.0 Type A (Front), 2*USB2.0 Type A(Rear), 2*USB2.0 Type A(Front), 1*USB2.0 Type A(Inside) 8bit DIO:2*5-pin ter.(Rear), 8bit DI: 1*10-pin ter. (Rear), 8bit DO: 1*10 pin ter.(Rear)
2*RS232/422/485 DB9 male (Rear), 4*RS232 DB9 male (Rear), 1*6pin PS/2(Front) 1*Audio-out 3.5mm phone jack(Rear), 1*Mic 3.5mm phone jack(Rear) 1*HDMI(Front) +1*DP (Front) | | LED | 1*Power LED, 1*HDD LED, 3*CPU term. LED?Red is warning , Yellow is high, Green is normal) | | Control SW | 1*Power button (Front); 1*2pin ter. power-on signal(Rear), 1*AT/ATX Select dip(Front) | | Power Supply | DC 9~30V Input, 3-pin ter. (Front), short circuit, overvoltage and overcurren, TDP: 12V/2.31A | | Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | | OS Support | Windows 7, Windows 10, Linux Fedora Ubuntu |
|
Mechanical
| | Structure | aluminum chassis, SGCC frame | | Color | Silver | | Mounting | Desktop Mounting | | Dimension | side (W*H*D)?210*144.3*75.5mm | | Net weight | 2.2kg |
|
Environmental
| Operating
temperature | -20°C~70°C – Fanless with wide operating temp.SSD, airflow
-10°C~50°C – Fanless with HDD, airflow | Storage
Temperature | -40°C~85°C | | Storage Humidity | 10~90%@40°C, Non-condensing | | Vibration | 5 grms/5~500Hz/ random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) | | Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | | Certification/EMC | CE/FCC Class A |
|
