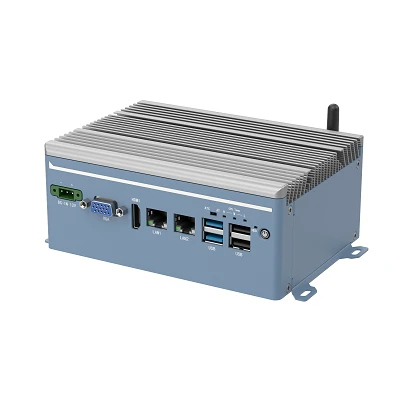

Key Features

• Compact aluminum frame, no fan heat dissipation design

• Intel® Elkhart lake Celeron Soc CPU

• 1*DDR4 3200MHz SODIMM, up to 16GB

• Intel® UHD Graphics, 1*HDMI+1*VGA

• 2*Intel® I225V, up to 2.5Gbps bandwidth

• 2*USB3.1 Gen2, 2*USB2.0, optional Audio out

• 2*RS232,2*RS232/422/485, 8-bit DIO

• 1*mSATA, 1*2.5”SATA bay

• DC 12V power in?optional OFX-075 wide power input DC 9-36V

Datasheet

CPU

Intel® Elkhart lake SoC CPU?Celeron J6412 2.0-2.6GHz 4 cores 4 threads?Celeron N6210 1.2-2.6GHz 2 cores 2 threads

System memory

1*DDR4 SO-DIMM , 3200MHz, up to 16GB

Expansion

1*M.2 B-key 3052, wih PCIe X1+USB2.0+SIM slot?support 5G RN or 4G LTE module?

1*JHCTECH Express-01 80pin composite signal high speed interface?2*PCIeX1, 4*USB2.0, Front-Audio; 1*PS/2, Front-Panel, 1*Sm bus & 1*eSPI

Graphics

Intel Gen11 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8?HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9

HDMI2.0 max res. 4096*2304@60Hz

VGA max res. 1920*1200@60Hz

Audio

Realtek ALC662 controller (Opt.), Supports 5.1 channel

LAN

2*Intel I225V PCIe Gig. Ethernet, 10/100/1000/2500Mbps, support WOL

Storage

1*2.5”SATA3.0(6.0Gbps) bay?1*1*full size mSATA?support AHCI

I/O Interface

Front I/O?1*HDMI+1*VGA;  2*2.5G-LAN(RJ45)?2*USB3.1(Type A),  2*USB2.0(Type A)

Back I/O?2*RS232/422/485 (DB9 male),  2*RS232(DB9 male)?1*8-bit DIO (DB9 male )?

1*Audio line out  (3.5mm phone jack)

Side & internal?1*SIM?side?; 1*USB2.0(Type A internal?

I-port

Support internal 1*USB2.0 or M.2 3052 and ect expansion module

LED

1*Power LED, 1*HDD LED, 3*CPU temp LED?Red is warning , Yellow is high, Green is  normal?

Control SW

1*Power button w/LED?1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW

Power supply

DC 12V , 1*3-pin phoenix term,  TDP: TBD?

Optional OFX-075 power board?DC 9-36V wide power input ?with short circuit, over voltage and over current protection

Watchdog timer

Watchdog timeout programmable via software 1 to 255 second

OS

Windows 10 64 bit, SUSE, Ubuntu, Wind River, Linux

Mechanical

SGCC chassis,  Aluminum frame

Color

Blue+white

Mounting

Desk mounting

Dimension

(W*H*D)?155*111.8*65 mm

Net weight

1.30KG

Operating temperature

-20?60?,  wide temp SSD, airflow

Storage temperature

-40°C~85°C

Storage humidity

10~90%@40°C, Non-condensing

Vibration

5grms/5~500Hz/random/in  working (SSD); 1grms/5~500Hz/random/in working (HDD)

Shock

50g peak acceleration (11ms duration)(SSD); 20g peak acceleration (11ms duration)(HDD?

EMC and Certification

CE/FCC Class B
