KGEC-6500

www.alvasta-tech.com / Enterprises / JHCTECH / DIN-rail Embedded Automation Controller / KGEC-6500 /

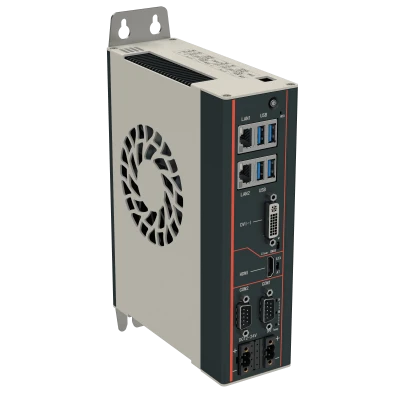

KGEC-6500

Key Features

  • Intel® Comet Lake-S CPU, up to 10 cores 65W
  • Dual-channel DDR4 2933MHz SODIMM, up to 64GB
  • Intel® H420E chipset, long life cycle
  • 1*HDMI and 1*DVI-I dual displays, display signal extension without attenuation
  • Intel® I226V supports multiple real-time industrial Ethernet protocols
  • 1 * PCIeX4 slot (X4 signal) can be flexibly removed from the modular design, supporting the expansion of POE network cards and motion control cards
  • DC 12~24V wide voltage supply, with reverse connection, overcurrent, and overvoltage protection
  • Wall mounting and DIN-rail Rail mounting

Datasheet

KGEC-6500 | Edge Controller

Intel® Comet lake-S CPU+H420E PCH?2*DDR4, dual displays, 2*LAN, 4*USB3.2, 3*USB2.0, 2*COM, 1* PCIeX4 expansion slot?DC 12~24V

KGEC-6500 is a high-performance industrial edge controller equipped with Intel Comet Lake-S CPU series processor, with dual channel memory, dual storage.
I226V network supports EtherCAT and other real-time industrial Ethernet protocols, active and passive cooling design, compact size, flexible modular expansion components, a variety of installation methods, and it is suitable for CNC machinery and industrial robots and other fields.


Specification

System
CPU+PCH
Intel 10th Gen. Cometlake-S Core i9/i7/i5/i3/Celeron CPU?LGA 1200 Socket?2C/4C/6C/8C/10C?the maximum power consumption:65W? Intel H420E chip
System MemoryDual-channel 2 *260pin DDR4 SODIMM, supporting up to 2933MHz and a maximum of 64GB
Expansion
1* Full-size Mini PCIe, with SIM card slot, PCIe X1+USB2.0 signal, support 4G LTE or Wifi+BT wireless functions;
1*PCIeX4 slot, with Gen3 PCIeX4 signal, can be used for the function expansion of 4-port IEEE-802.3AT (PoE+) network cards and other motion control cards
Intel Graphics
Intel® UHD Graphics, supports DirectX 12, OpenGL 4.5 and OpenCL 2.1
HDMI is 4K ultra HD display and the highest resolution is 4096*2160@30Hz.
DVI-I(DVI-D+VGA) : The highest resolution of DVI-D is 1920*1200@60Hz, and the highest resolution of VGA is 1920*1200@60Hz
LAN1*Intel I219LM chip?10/100/1000Mbps adaptive, support WOL network awakening
1*Intel I226V chip PCIe Gig. Ethernet, 10/100/1000/2500Mbps adaptive?support WOL network awakening
Storage1*2.5”SATA3.0 bay; 1*mSATA Full Size?supports AHCI
Rear I/O2*Gig-LAN(RJ45)?4*USB3.2 Gen 1(5Gbps Type A),
2*RS232/422/485 (DB9 male), 1*HDMI+1*DVI-I
Internal I/O3*USB2.0(one Type A, one 2*5 dupont pin )?1*RS232(1*4pin wafer)
LED1*power LED; 1*HDD LED; 3*CPU Temp.LED (Red is warning, Yellow is high, Green is normal);
Control SW1*power SW, 1*AT/ATX SW, 1*Clear CMOS SW, COM1&COM2 dip switch for mode switching
Power SupplyDC 12~24V input, 2*2-pin terminal block connector,
TDP: 24V/2.7A ?CPU: I5-10500E?DDR4?32GB?HDD?128G)?without functional card
Watchdog TimerProgrammable timeout interrupt or system reset, 1 to 255 seconds
OS SupportRTOS: INtime, EC-Win, RTX-2014/2016, Ubuntu Preempt-RT?Xenomai
Windows 10, SUSE, Ubuntu, VXWork, Red Hat Enterprise
StructureAluminum chassis with heat dissipation, aluminum alloy box
ColorSilk grey+Graphite black
MountingWall mounting and DIN-rail Rail mounting(without explansion slot)
Mechanical
Dimension(W*H*D)202*154*57.8mm?add expansion card total: 202*154*89.5mm
Net weightS001: 1.85KG add expansion card total: 2.20KG
Environmental

Operating temperature-20°C~60°C, wide operating temp. SSD
Storage Temperature-40°C~85°C
Storage Humidity10~90%@40°C, Non-condensing
Vibration5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD)
Shock50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?
Certification/EMCCE/FCC Class A
