| Key Features - Aluminum chassis, Fanless design
- Intel® Whiskey lake-U CPU
- DVI-I/DP the display signal can be extended without attenuation
- 3* I210 AT network chips, Optional support for a variety of
Real-time industrial Ethernet protocols - 1*I219LM, support iAMT12.0
- BIOS optimization and support high real-time system
- 1*Mini PCIe with SIM slot?1*M.2?2230 E-Key
- Support software development platform (optional)
- DC 12~24V, Wide power supply
- Support wall mounting and Din-Rail mounting
Datasheet |

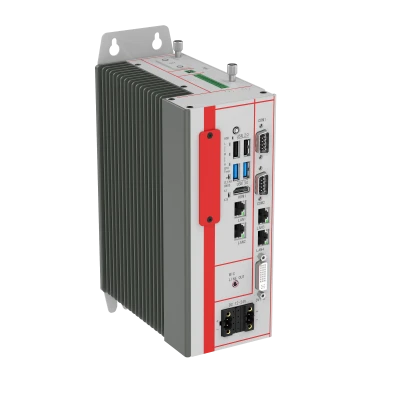

KGEC-6310 | Automation Controller
Edge Controller,Intel® Whiskey Lake-U CPU, 4*LAN, 2*USB3.1, 2*USB2.0, HDMI, DVI-D, 2*COM, 8-bit DIO, RTOS, TSN
KGEC-6310 is a new edge motion controller; it is powered by Intel® Whiskey Lake-U CPU, 2*DDR4 2133/2400MHz, up to 32GB. Rich IO interface, HDMI+DVI-D, 3*Intel I210AT, optional support for EtherCAT protocol and CANopen protocol,1*Intel I219LM,
support iAMT12.0? 2*USB3.1, 3*USB2.0, 2*COM, 1*Mini PCIe, support 4G/Wifi/BT. 1*M.2 2230 E-key, 1*2.5“SATA3.0, 1*mSATA used for storage. DC 12~24V wide power input, support wall mounting, and Din-Rail mounting. BIOS optimized and supported real-time system, Ubuntu Preempt-RT, optional support INTime. The aluminum profile bottom shell design is good for the heat dissipation of hard disks. The machine is small, powerful, and delicate, which is very suitable for Machine Vision, CNC control, Motion control, and so on.
Specification
System | CPU
System Memory Expansion
Intel Graphics Audio LAN
Storage

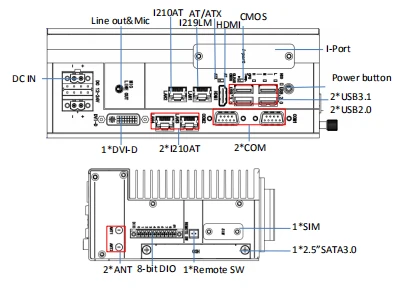

I/O ports
LED Control SW
Power Supply Watchdog Timer
OS Support |
Cores Threads Frequency(GHz) Dual channel DDR4 2400MHz SO-DIMM , up to 32GB 1*full size Mini PCIe (PCIe X1+USB) with SIM slot,support 3G/4G/Wifi/ BT/ GPRS module 1* M.2 E-key 2230, with PCIe X1+USB2.0 signal, expansion of Wifi/BT module Intel Gen. 9 UHD Graphics,HEVC/H265 HWen/decoder HDMI max. res. 4096*2304@60Hz DVI-D max. res. 2560x1600,60Hz Realtek ALC662VD controller, 1*Line out&Mic high fidelity audio interface, support 5.1 channel 3*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps?1*Intel®I219LM , support iAMT12.0 1*2.5" SATA3.0 HDD/SSD 4*Gig-LAN(RJ45) 2*USB3.1(Type A), 2*USB2.0(Type A) 2*RS232/422/485 (DB9) 1*8-bit DIO (1*10Pin phoenix) 1*HDMI+1*DVI-D 1*Line out&Mic 3.5mm phone jack 1*Power LED, 1*HDD LED, 3*CPU temp. LED?Red is warning , Yellow is high, Green is normal) 1*Power button, 1*AT/ATX Select SW, 1*Clear CMOS Select SW DC 12~24V Input, 2*2-pin ter. Connector,TDP:12V/2.64 A (CPU I3-8145U 4GB) Watchdog timeout programmable via software 1 to 255 second RTOS: INtime, EC-Win, RTX-2014/2016?Ubuntu Preempt-RT Windows 10, SUSE, Ubuntu, Wind River, Red Hat Enterprise | Celeron 4305U 2 2 2.2 | Core I3-8145U 2 4 2.1-3.9 | Core I5-8265U 4 8 1.6-3.9 | Core I7-8565U 4 8 1.8-4.6 |
Mechanical | Structure | Aluminum chassis, SGCC frame |
Color | Silk grey |
Mounting | Wall-mounting?Din-Rail mounting |
Dimension | (W*H*D):202*151*81mm |
Net weight | 2.59KG |
Environmental | Operating temperature | -20°C~60°C, wide operating temp. SSD |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~90%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working(SSD) 1grms/5~500Hz/random/in working(HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
Certification/EMC | CE/FCC Class B |
Ordering Information
Model No. | CPU | Introduction |
KGEC-6310/S001 | Intel?Core I3-8145U | Edge controller,Dual-ch DDR4 2*SO-DIMM, 4*LAN, 2*USB3.1, 3*USB2.0, 2*COM,8-bit DIO, 1*Mini PCIe, 1*M.2, 1*DVI-D, 1*HDMI, 1*mSATA, |
1*2.5”SATA3.0, DC 12~24V |
KGEC-6310/S002 | Intel?Core I5-8265U | Edge controller,Dual-ch DDR4 2*SO-DIMM, 4*LAN, 2*USB3.1, 3*USB2.0, 2*COM,8-bit DIO, 1*Mini PCIe, 1*M.2, 1*DVI-D, 1*HDMI, 1*mSATA, |
1*2.5”SATA3.0, DC 12~24V |
KGEC-6310/S003 | Intel?Core I7-8565U | Edge controller,Dual-ch DDR4 2*SO-DIMM, 4*LAN, 2*USB3.1, 3*USB2.0, 2*COM,8-bit DIO, 1*Mini PCIe, 1*M.2, 1*DVI-D, 1*HDMI, 1*mSATA, |
1*2.5”SATA3.0, DC 12~24V |
KGEC-6310/S004 | Intel?Celeron 4305U | Edge controller,Dual-ch DDR4 2*SO-DIMM, 4*LAN, 2*USB3.1, 3*USB2.0, 2*COM,8-bit DIO, 1*Mini PCIe, 1*M.2, 1*DVI-D, 1*HDMI, 1*mSATA, |
1*2.5”SATA3.0, DC 12~24V |
PA-120DC19 | AC/DC power adapter, DC19V/6.32A 120W |
