KGEC-6300

Key Features

Intel® Kabylake-S/Skylake-S CPU?up to65W
CPU active and passive cooling design
Intelligent temperature control fan, silent and dustproof
DVI-I/DP the display signal can be extended without attenuation
Dual I210 AT network chips, Optional support for a variety of
Real-time industrial Ethernet protocols
BIOS optimization and support high real-time system
1*PCIe X4 slot/ 1*32bit-PCI slot?T001/2?
Support software development platform (optional)
DC 12~24V, Wide power supply
Support wall mounting and Din-Rail mounting

Datasheet

KGEC-6300 | Automation Controller

Edge Controller, Intel® Core I3/I5/I7 CPU with Modular I/O Expansion Design, DP, DVI-I, 2*COM, RTOS, TSN

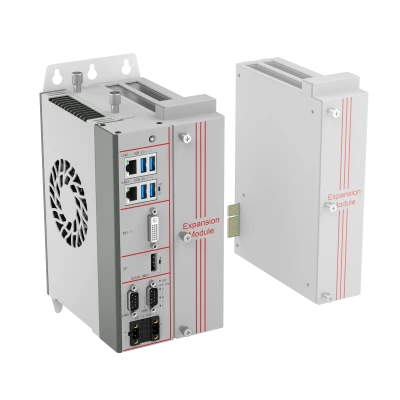

KGEC-6300 is a new edge motion controller powered by Intel® Skylake-S / Kabylake-S CPU, H110 Chipset, 1*DDR4 2133/2400MHz, up to 16GB. Rich IO interface, DP+DVI-I, 2*LAN, all use Intel I210AT, optional support for EtherCAT protocol and Can Open protocol, 4*USB3.0, 2*COM, 1*PCIe X4 slot(T001/2), 1*32bit- PCI slot(T001/2), support single slot, double slot, a variety of expansion options, 1*Mini PCIe, support 4G/Wifi/BT. 1*mSATA used for storage?DC 12~24V wide power input, support wall mounting, and Din-Rail mounting. Adopt active and passive cooling design; fan wind speed can be intelligently controlled. BIOS optimized and supported real-time system, Ubuntu Preempt-RT, optional support INTime. The extension module and the host are designed with easy disassembly, and the extension quantity is flexible. Different extension modules can be selected for different application scenarios, which are very suitable for Machine Vision, CNC control, Motion control and so on.

Specification

System	CPU	Gen.6th Intel® Skylake-S/gen.7th Intel® Kabylake-S Pentium/Core I3/I5/I7 CPU, LGA 1151 socket
	Chipset	Intel® H110
	System Memory	1*260-Pin SODIMM, DDR4 2400/2133MHz, up to16GB
	Expansion	1full size Mini PCIe (PCIe X1+USB) with SIM slot,support 4G/Wifi/BT/CAN module 1PCIe X4 slot with PCIe X1 (T001/2) 1*32bit-PCI support motion control card, acceleration card and other functions of the expansion card (T001/2)
	Intel Graphics	Intel Gen. 9 HD Graphics,HEVC/H265 HW HD en/decoder DP max. res. 40962304@60Hz DVI-I(DVI-D+VGA) DVI-D max. res. 19201200@60Hz, VGA max. res. 2560*1600@60Hz
	LAN	2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps?
	Storage	1*mSATA full size(SATA & USB2.0)
	I/O ports	2Gig-LAN(RJ45) 4USB3.0(Type A) 2RS232/422/485 with TVS Iso. (DB9) 1DP+1*DVI-I
	LED	1Power LED, 1HDD LED, 3*CPU temp. LED?Red is warning , Yellow is high, Green is normal)
	Control SW	1Power button, 1AT/ATX Select SW, 1*Clear CMOS Select SW
	Power Supply	DC 12~24V Input, 2*2-pin ter. Connector,TDP:S001(19V/2.3A I7-7700K 4GB)?S002(19V/2.6A I7-7700K 4GB)
	Watchdog Timer	Watchdog timeout programmable via software 1 to 255 second
	OS Support	RTOS: INtime, EC-Win, RTX-2014/2016?Ubuntu Preempt-RT Windows 7, Windows 10, Linux Fedora Ubuntu (Note: Gen.7th Intel® Kabylake-S processors don’t support Windows 7)
Mechanical	Structure	Aluminum chassis, SGCC frame
	Color	Silk grey
	Mounting	Wall-mounting?Din-Rail mounting
	Dimension	(WHD)?S001(20215157.8mm), T001(202151109.8mm)
	Net weight	S001: 2.52KG T002 :3.52KG
Environmental	Operating temperature	-20°C~60°C, wide operating temp. SSD
	Storage Temperature	-40°C~85°C
	Storage Humidity	10~90%@40°C, Non-condensing
	Vibration	5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD)
	Shock	50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD?
	Certification/EMC	CE/FCC Class B
