| Key Features
|
Intel Elkhart lake CPU, 1*HDMI, 2*LAN, 2*USB3.1, 2*USB2.0, 2*COM, 1*Mini PCIe, 1*mSATA, Mini size, DC 9~36V

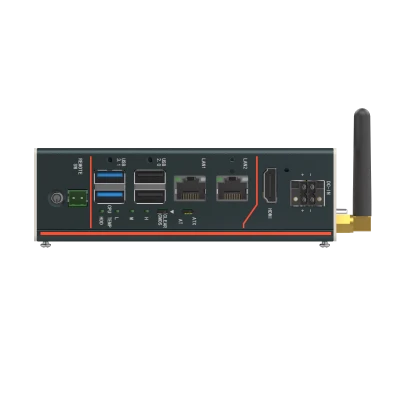

KGEC-6200 is a brand new edge controller, powered by Elkhart lake SoC series Processor, 1*DDR4 3200 SODIMM, maximum 32GB, Multi IO interfaces, two power supply designs. The mini size is suitable for installation in limited space. It is very suitable for AGV and AMR, machine vision, industrial control and other fields.
Specification
System | CPU+PCH | Intel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4Cores and 4Threads or Celeron N6210 1.2-2.6GHz 2Cores and 2Threads |
| System Memory | 1 *260pin DDR4 SODIMM, supporting up to 3200MHz and a maximum of 32GB | |
| Expansion | 1* Full-size Mini PCIe(PCIe X1+USB2.0 signal) , with SIM card slot, support 4G LTE or Wifi+BT WLAN, or CAN bus module | |
| Intel Graphics | Intel Gen10 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8?HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9 HDMI2.0 is 4096*2304@60Hz, 4K UHD | |
| LAN | 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps, support WOL | |
| Storage | 1*mSATA Full Size?6.0Gbps, supports AHCI | |
| Rear I/O | 1*HDMI?2*Gig-LAN(RJ45); 2*USB3.1(Type A), 2*USB2.0(Type A), 2*USB2.0(pin header inside); 1*RS232/422/485(BIOS via) + 1*RS232, and RS232 with 3-wires signal design in 1*DB9 male; 1*MI/O: 8bit DIO?Optional Mini PCIe module with 2*CAN2.0, design in 1*DB9 male | |
| Internal I/O | 2*USB2.0( 2*5pin header inside )?1*8-bit DIO( 2*5pin header inside) | |
| LED | 1*power LED; 1*HDD LED; 3*CPU Temp.LED (Red is warning, Yellow is high, Green is normal) | |
| Control SW | 1*power SW, 1*AT/ATX SW, 1*Clear CMOS SW | |
| Power Supply | DC 12V input, 2*2-pin terminal block connector, OFX-075 75W power module is optional, supporting a wide power input of 9 ~ 36V, support OVP,OCP and SCP TDP: 15.6W?Celeron J6412, 32G DDR4, 128G mSATA) | |
| Watchdog Timer | Programmable timeout interrupt or system reset, 1 to 255 seconds | |
| OS Support | RTOS: INtime, EC-Win, RTX-2014/2016 and Ubuntu Preempt-RT Windows 11, Windows 10, SUSE, Ubuntu, Wind River, Red Hat Enterprise | |
| Structure | Aluminium-magnesium alloy chassis and fanless cooling design, SGCC frame | |
| Color | Silk grey+Graphite black | |
| Mounting | Wall mounting, optional DIN-rail Rail mounting and desktop mounting | |
Mechanical | Dimension | (W*H*D)130*100*40mm |
| Net weight | 750g | |
Environmental | Operating temperature | -20°C~60°C, wide operating temp. SSD |
| Storage Temperature | -40°C~85°C | |
| Storage Humidity | 10~95%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | |
| Certification/EMC | CE/FCC Class A |
