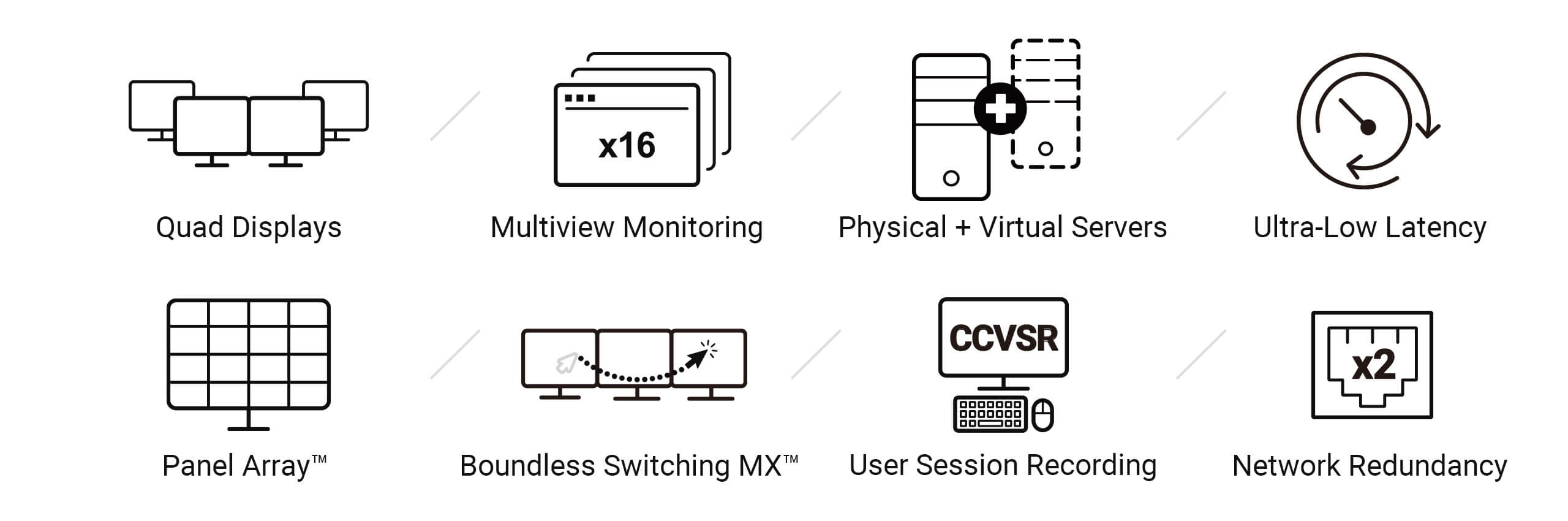

 | 4K Quad-Display KVM over IP Multi-View Receiver This Multi-View Receiver is ideally designed for mission-critical control rooms due to the following features: Features and Benefits
Download Datasheet |

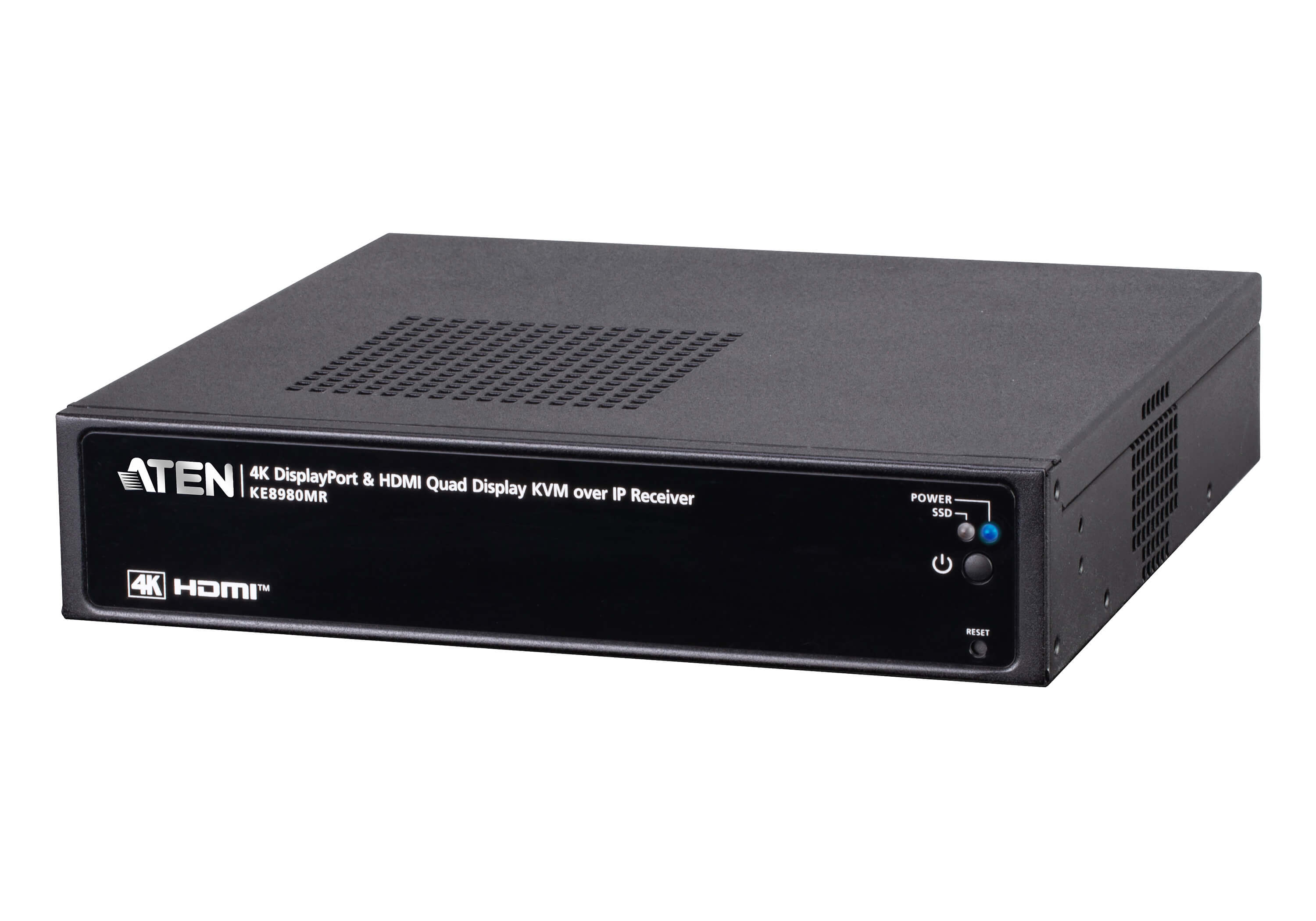

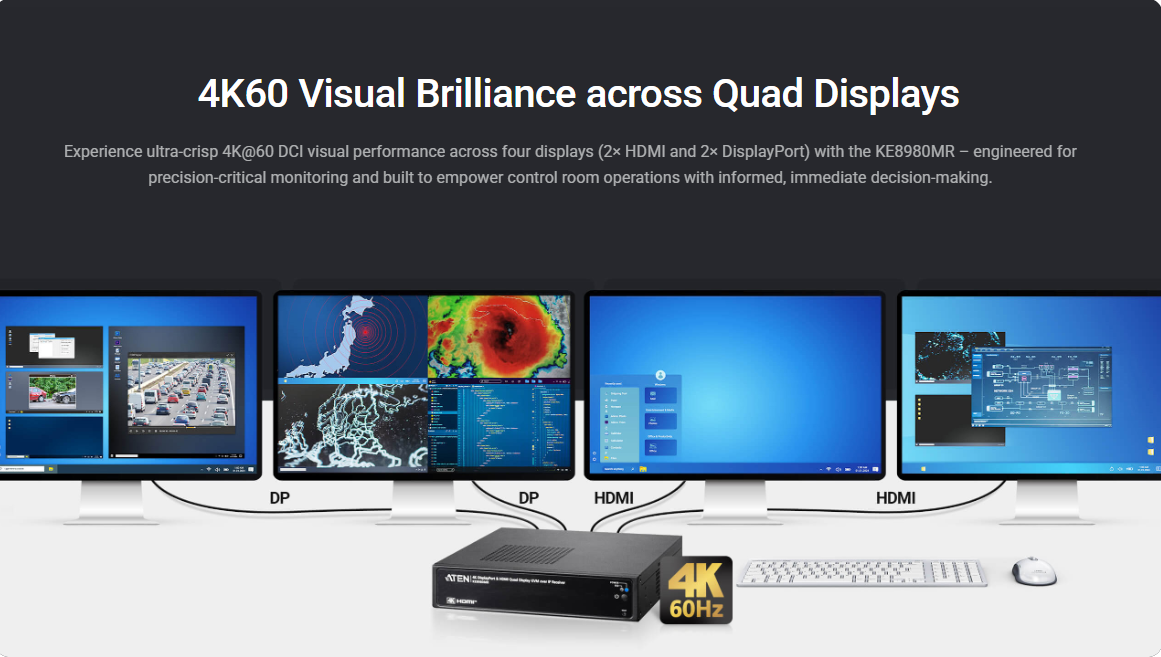

The ATEN KE8980MR is a high-performance KVM over IP Multi-View receiver specifically engineered to empower operators in demanding, mission-critical control room environments. It supports quad-display output (2 HDMI and 2 DisplayPort), each capable of 4096 x 2160 @ 60Hz, providing an expansive and detailed operational view.

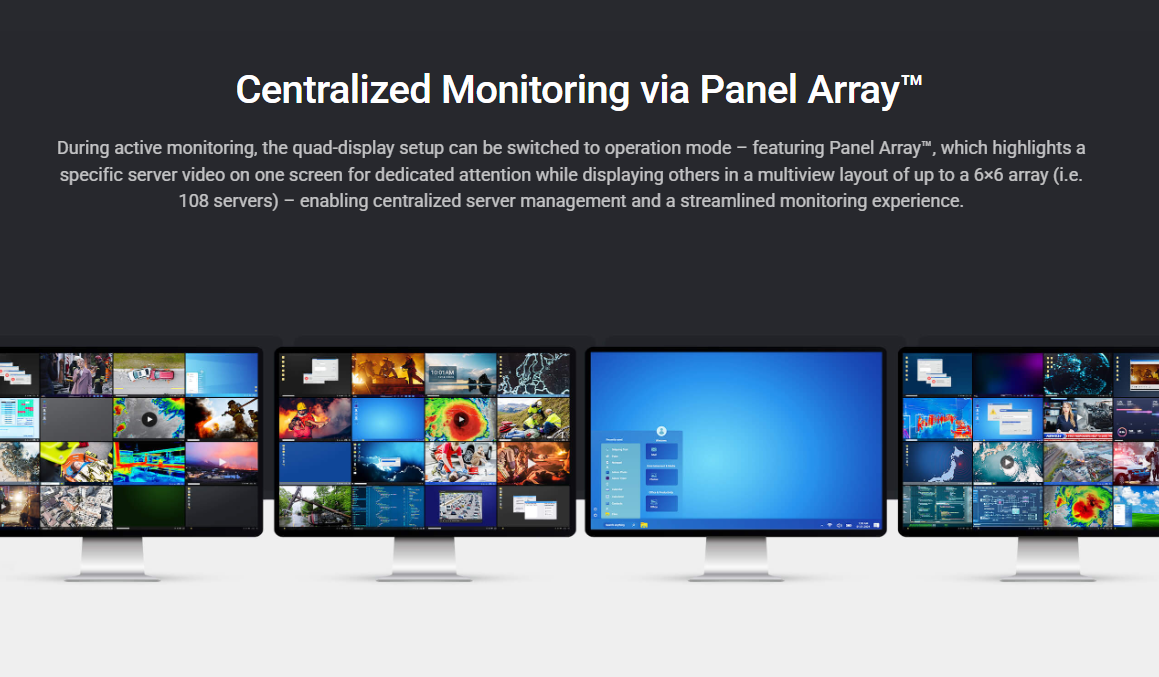

To maximize operational agility, the KE8980MR features two powerful modes tailored for mission-critical workflows. In Multi-view mode, it can display and control up to 16 video sources across up to 4 screens simultaneously, using flexible layouts, optimizing situational awareness and workflow efficiency. In Operation mode, it delivers ultra-low latency control with real-time Panel Array monitoring, instant one-click Push and Pull content sharing, and flexible source access through a Virtual Transmitter that streams video, audio, USB, and serial independently.

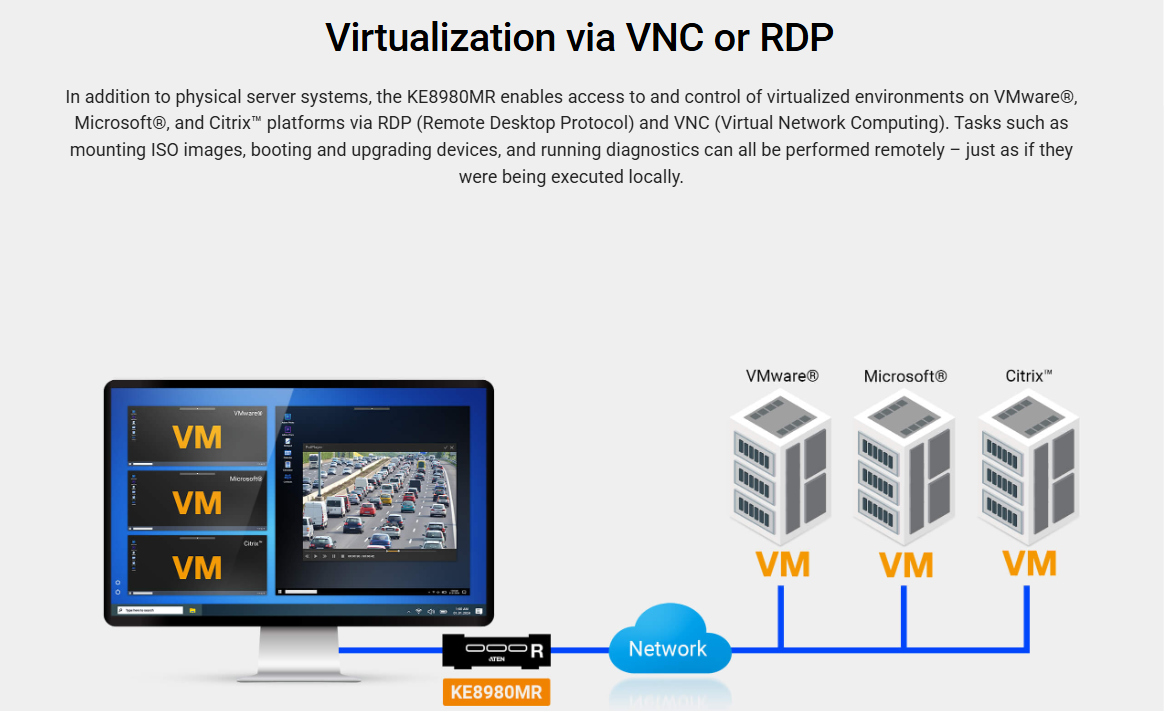

Seamlessly bridging physical and virtual resources, the KE8980MR offers native support for RDP and VNC protocols. This allows for direct, hardware-free access to virtual machines hosted on VMware®, Microsoft®, and Citrix. platforms, alongside flexible switching to traditional KE Transmitters. The system's ultra-low latency operation ensures real-time interaction and immediate visual feedback, which is paramount for critical decisionmaking. Furthermore, its operation mode enables the monitoring of up to 108 screens, offering extensive scalability for large-scale operations.

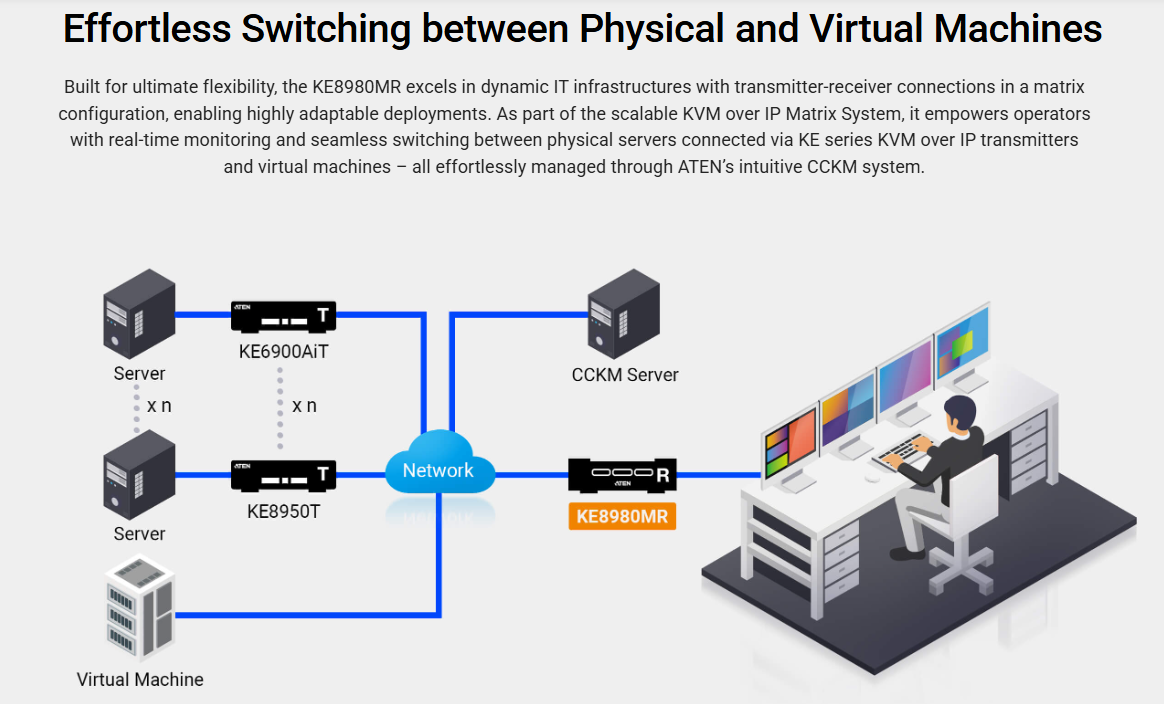

The KE8980MR integrates seamlessly with ATEN’s KE/KX transmitter series and the KVM over IP Matrix Manager (CCKM), offering flexible deployment options including point-to-point, point-to-multipoint, and multipoint-tomultipoint configurations. It also supports operator session recording when paired with ATEN's CCVSR (Control Center Video Session Recording) system, capturing a comprehensive record of user activity.
The KE8980MR is the ideal solution for extending high-resolution KVM control from multiple sources over IP across significant distances. The KE8980MR delivers seamless connectivity and centralized management, making it an indispensable solution for mission-critical control centers, collaborative conference rooms, and large-scale digital signage networks with multi-monitor configurations.
The KE8980MR is a high-performance KVM over IP Multi-View Receiver designed to revolutionize how you monitor and control physical and virtual servers across up to four displays at a single workstation. Seamlessly integrated into the KVM over IP Matrix System, it empowers operators to effortlessly manage up to 16 servers in stunning True 4K clarity using flexible multiview layouts, while simultaneously monitoring up to 108 servers to maximize productivity in high-stakes environments.

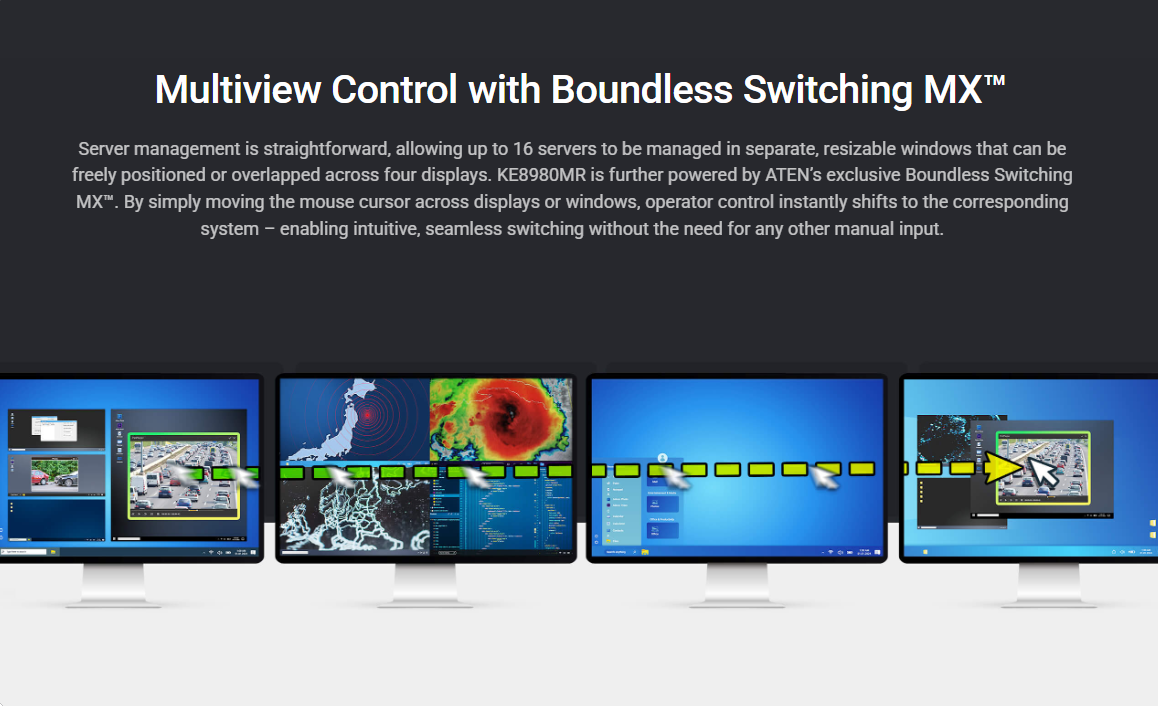

Engineered for operational excellence, the KE8980MR features ATEN’s exclusive Boundless Switching MX™, allowing real-time switching between systems simply by moving the mouse freely across displays and windows, ensuring an immediate response to mission-critical events when every second counts. Additionally, with video wall integration, the KE8980MR fosters timely team collaboration and sharp situational awareness.
Purpose-built for leaner operations, the KE8980MR minimizes hardware complexity and maximizes team efficiency. Whether in broadcast, air traffic control, surveillance, or mission-critical transportation hubs, it’s an indispensable solution that promotes agile teamwork, without expanding headcount.
By integrating CCVSR (Control Center Video Session Recording) into the KVM over IP Matrix System, every operator session – including video output, keyboard input, and mouse activity – can be recorded in real time. This enhances security automation in control room and server room environments, supporting effective auditing, traceability, and proactive risk mitigation.
Designed for control room applications in mind, the KE8980MR is particularly well-suited for fast-paced control rooms in broadcast, surveillance, air traffic control, transportation hubs, and beyond.
Spesifications
| Connectors | |
| USB Port | 2 x USB Type A Female (Blue) |
| Console Ports | 2 x USB Type A Female (Blue) 2 x DisplayPort Female (Black) 2 x HDMI Female (Black) 1 x Audio line out/in Jack (Black) 1 x DB-9 Male (Black) |
| Power | 1 x Lockable DC Jack (Black) |
| LAN Ports | 2 x RJ-45 (Blue) |
| Pushbuttons | |
| Pushbuttons | 1 x Power (Black) 1 x Reset (Black) |
| LEDs | |
| Power | 1 (Blue) |
| Storage | 1 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Power Consumption | DC19V:33W:420BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Video Resolution | Up to 4 * 4096 x 2160 @ 60Hz |
| Latency | Operation mode: 16ms ~ 48ms Multiview mode: < 48ms |
| Environmental | |
| Operating Temperature | -10–50°C |
| Storage Temperature | -40–85°C |
| Humidity | 10–90% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.34 kg ( 2.95 lb ) |
| Dimensions (L x W x H) | 20.00 x 19.00 x 4.18 cm (7.87 x 7.48 x 1.65 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
