 | Key Features - IS-RH709, 8x 10/100Mb Copper ports plus 1x 10/100/1000Mb Base Copper ports
- IS-RH709-2F, 7x 10/100Mb Copper ports plus 1x 100Mb Base SFP ports plus 1x 1000Mb Base SFP ports
- IS-RH709-3F, 6x 10/100Mb Copper ports plus 2x 100Mb Base SFP ports plus 1x 1000Mb Base SFP ports
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP
- Port-based VLAN, IEEE 802.1Q Tag-based VLAN
- SNMP v1/v2c, Trap
- Dual AC Power Input 100/240 VAC, 50Hz ~ 60Hz
- -40~75ºC operating temperature
- Loop Protection
- IP 30 Protection
- 2KV surge immunity on RJ45 Copper port
- 1.5KV Hi-pot
- Rugged Fan-less Design
- Relay Output (1A, 24V, Normal Close)
- 19” Rack-Mount, 19”/2 Rack Couple-Mount(Optional), 1/2U 19" Rack Couple-Mount(Optional), 19” Rack Quadruple-Mount(Optional), Wall Mount(Optional) Installation.
Download Datasheet |

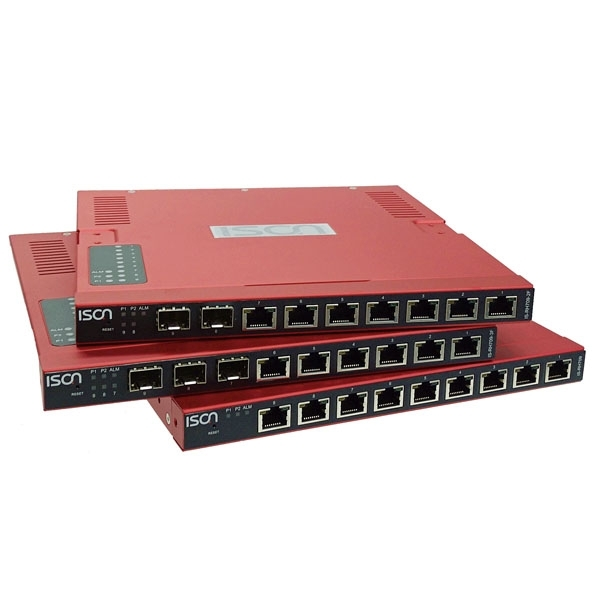

IS-RH709 Series
9-port Rack Mount Fast Ethernet Managed Layer 2 Industrial Ethernet Switch with 1x 1G Uplink
The IS-RH709 Series are 9-port Rack Mount Fast Ethernet Managed Layer 2 Industrial Ethernet Switch with 1G Uplink that provide both copper and fiber connectivity according to field needs. These models reduce the response time for timing sensitive applications which may combine all video, voice, and data streams in the traffic flow. The Switches are especially good for those common application that doesn’t required complicated software features. The IS-RH709 Series are suitable for all kinds of Industrial applications.
