 | Key Features - 24 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP (SX/LX/LHX) ports or 28 100 / 1000 Based SFP (SX/LX/LHX) ports
- Support 9K Jumbo frames
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Ring Coupling, Multiple Ring, Dual Homing
- Port-based VLANs, IEEE 802.1Q tag-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE 802.1ad Double Tagging (Q in Q), Private VLAN, MVR
- Multicasting support IGMP v1/v2/v3, proxy & snooping
- IEEE 802.1X Port-based access control / RADIUS Server
- Per VLAN mirroring
- Redundant Power Input 100/240 VAC, 50Hz ~ 60Hz
- Reverse power protection
- SNMP v1/v2c/v3, Trap / Inform
- Port Power Saving
- -40~75ºC operating temperature
- IP 30 Protection
- 1.5KV Hipot, 2KV surge immunity on RJ45 Copper port
- Rugged Fan-less design
- Din-Rail Mount, Wall Mount(Optional), Installation
Download Datasheet |

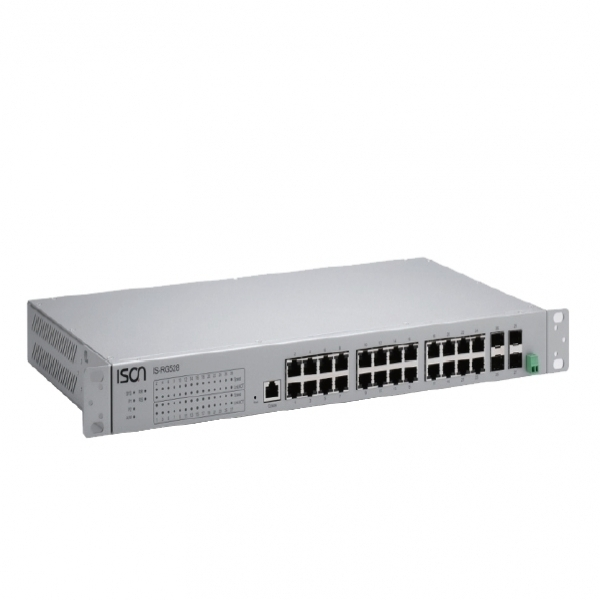

IS-RG528 Series (4GFX+24GTX) (EOL)
28-port Gigabit 19” Managed Layer 2 Industrial Ethernet Switch
The IS-RG528 Series are full Gigabit Ethernet Switches with 28 Gigabit Ethernet ports, perfect for upgrading an existing network to a full Gigabit speed Infrastructure; a full Gigabit network provides higher throughput than legacy (10/100Mbs) fast Ethernet networks. The IS-RG528 Series reduces response times for time sensitive applications which may be a mix video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, the IS-RG528 Series prioritizes, partitions and optimizes the user’s network while providing reliable quality services. The IS-RG528 Series switches are suitable for access level network connections.
