 | Key Features - 10 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP(SX/LX/LHX) ports
- Support IPV4/V6
- Support 9K Jumbo frames
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- Support I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Support Ring Coupling, Multiple Ring, Dual Homing
- Private/Port-based VLAN, IEEE 802.1Q Tag-based VLAN, Protocol-based VLAN, Private VLAN, IP-Subnet based VLAN, Voice VLAN, IEEE 802.1ad Double Tagging (QinQ), MVR, VCL
- Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping
- IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server
- VeriPHY Cable Diagnostics, Per VLAN mirroring
- SNMP v1/v2c/v3, Trap / Inform, RMON
- Power Input 100/240 VAC, 50Hz ~ 60Hz
- 10KV Lightning Protection (Power Module)
- 19” Rack-Mount, Din-Rail Mount, Wall Mount, Desk Mount Installation
- Port Power Saving
- Loop Protection
- -40~75ºC operating temperature
- IP 30 Protection
- 2KV surge immunity on RJ45 Copper port
- 1.5KV Hipot
- Rugged Fanless Design
Download Datasheet |

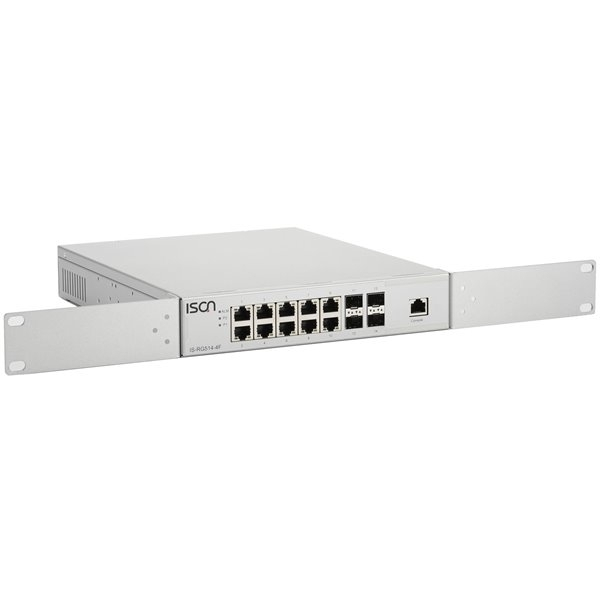

IS-RG514 Series (4GFX+10GTX)
14-port Gigabit Rack Mount Managed Layer 2/4 Industrial Ethernet Switch
The IS-RG514 Series are full Gigabit Ethernet Switches with 14 Gigabit Ethernet ports, perfect for upgrading an existing network to a full Gigabit Speed Infrastructure; a full Gigabit network provides higher throughput than legacy Fast Ethernet network. The IS-RG514 Series reduce the response time for timing sensitive applications which may combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, the IS-RG514 Series prioritize, partition and optimize user’s network while provide reliable and quality services. The IS-RG514 Series switches are suitable for all kinds of Industrial applications.
