IS-RG326HS10 Series

Key Features Hot-swappable redundant power Input 100/240 VAC, 50Hz ~ 60Hz Provide 24 Giga Copper ports with 2 100 / 1000 Based SFP (SX/LX/LHX) ports Support 9K Jumbo frames Layer 2 Line-Speed Switching Fabric, non-blocking Layer 2 wire-speed switching engine Support IEEE 802.1p TOS/DiffServ, QoS by default Multicast / Broadcast / Flooding Storm Control Fan-Less design with wide-temperature range (-40~75ºC) 20KV / 10KV Lightning Protection (Power Module) 10A fuse (Power Module) Power On/Off switch (Power Module) Support Relay Output Alarm IP 30 Protection 2 KV surge immunity on RJ45 Copper ports 1.5 KV Hipot Support Rack Mount, Wall Mount, Installation Download Datasheet

IS-RG326HS10 Series

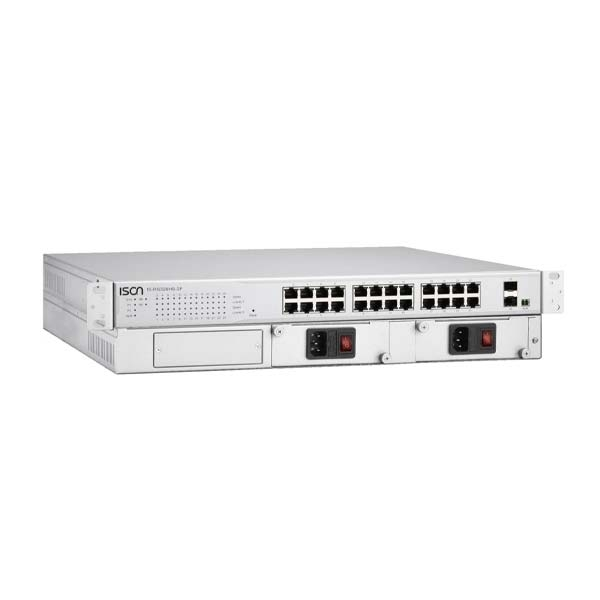

26-port Gigabit 19” Rackmount Unmanaged Layer 2 Lightning Protected Hot-Swap Power Industrial Ethernet Switch

The IS-RG326HS is 26-port full Gigabit unmanaged Ethernet Switch with hot-swappable redundant power supplies, proividing 26 port easy access, plug-n-play Gigabit Ethernet for applications; a full Gigabit network provides higher throughput than legacy (10/100Mbs) Fast Ethernet network.  The cost effective IS-RG326HS unmanaged switches can easily be used in factory production lines or even embedded into machine systems.  The IS-RG326HS Series also supports some useful function by default for network traffic optimization, such as QoS and storm protection.
