IS-DH310 Series (0/2GTX/FX 8TX)

Key Features

Provide 8 10/100Mbps Copper ports plus 2 Gigabit Copper ports or 2 Gigabit SFP Slots
Layer 2 Line-Speed Switching Fabric, non-blocking
Fan-Less design
Wide-temperature range (-40~75ºC)
Redundant power input (12~58 VDC)
Reverse power protection
Din-Rail or wall mount installation
Relay Output Alarm
IP 30 Protection
2KV Surge immunity on RJ45 ports
1.5KV Hipot for port isolation

Download Datasheet

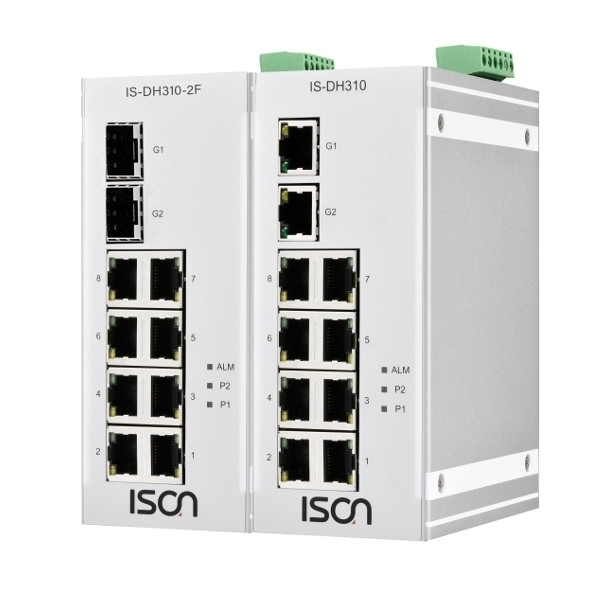

IS-DH310 Series (0/2GTX/FX+8TX)

10-port DIN-Rail Unmanaged Layer 2 Industrial Ethernet Switch

The IS-DH310 series are cost-effective unmanaged Ethernet Switches with 2G TX/FX ports provide easy to use plug-n-play applications. The IS-DH310 Series can easily be used in factory production line, embedded into machine system or applied for any simple network expansion. The IS-DH310 Series is the perfect solution for general application and edge site installation.
