 | Key Features - Hot-swappable redundant power Input 100/240 VAC, 50Hz ~ 60Hz
- 8 Gigabit RJ45 Copper ports plus 2 100 / 1000 Based SFP(SX/LX/LHX/ZX) ports
- Support 9K Jumbo frames
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- Support I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Support Ring Coupling, Multiple Ring, Dual Homing
- Private/Port-based VLAN, IEEE 802.1Q Tag-based VLAN, Protocol-based VLAN, Private VLAN, IP-Subnet based VLAN, Voice VLAN, IEEE 802.1ad Double Tagging (QinQ), MVR, VCL
- Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping
- IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server
- VeriPHY Cable Diagnostics, Per VLAN mirroring
- AC Power Input 100/240 VAC, 50Hz ~ 60Hz
- 10KV Lightning Protection (Power Module)
- SNMP v1/v2c/v3, Trap / Inform, RMON
- Din-Rail Mount, Wall Mount
- Port Power Saving
- Loop Protection
- -40~75ºC operating temperature
- IP 30 Protection
- 2KV surge immunity on RJ45 Copper port
- 1.5KV Hipot
- Rugged Fanless Design
- Fault Alarm Notification (Power, Ports)
- Support IPV4/V6
|

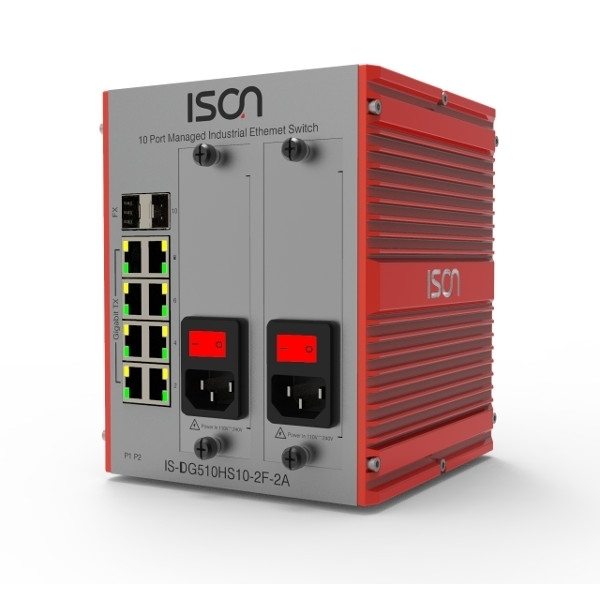

IS-DG510HS10 Series
10-port Gigabit DIN-Rail Managed Layer 2/4 Lightning Protected Hot-Swap Power Industrial Ethernet Switch
The IS-DG510HS10-2F-2A Series are full Gigabit Ethernet Switches with 10 Gigabit Ethernet ports, perfect for upgrading an existing network to a full Gigabit speed Infrastructure; a full Gigabit network provides higher throughput than legacy Fast Ethernet network. These models reduce the response time for timing sensitive applications which may combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features. The switches prioritize, partition and optimize user’s network while provide reliable and quality services. The IS-DG510HS10-2F-2A Series switches are suitable for all kinds of Industrial applications.
