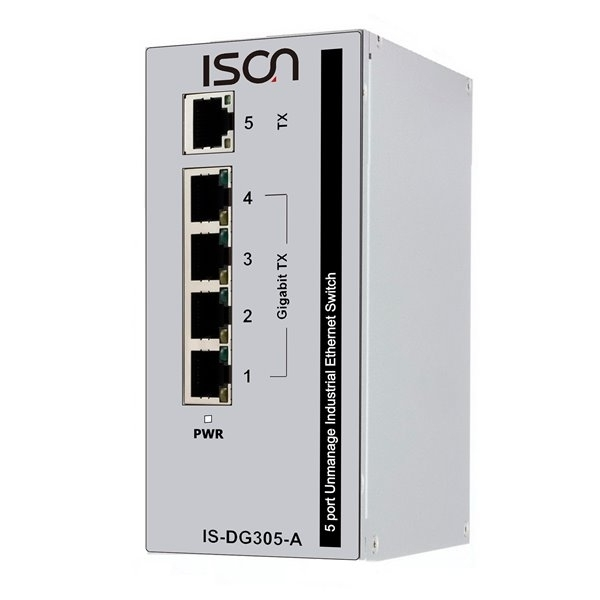

IS-DG305-A Series (1GFX+4GTX)

Key Features 5 / 4 Giga Copper ports with 0 / 1 100/1000 Based SFP (SX/LX/LHX) ports Support 9K Jumbo frames IEEE 802.3x flow control & back-pressure Layer 2 Line-Speed Switching Fabric, non-blocking Support IEEE 802.1p TOS/Diffserv, QoS by default Multicast / Broadcast / Flooding Storm Control Wide-temperature range (-40~75ºC) AC Power Input 100/240 VAC, 50Hz ~ 60Hz Support DIN-Rail or wall mount installation IP 30 Protection 2KV surge immunity on RJ45 Copper ports 1.5KV Hipot Rugged Fanless design Download Datasheet

IS-DG305-A Series (1GFX+4GTX)

5-port Gigabit Unmanaged Layer 2 Industrial Ethernet Switch

The IS-DG305-A Series are full Gigabit unmanaged Ethernet Switches that provide easy to access, plug-n-play Gigabit ports for applications; a full Gigabit network provides higher throughput than legacy Fast Ethernet network. The cost effective IS-DG305-A Series unmanaged switches can be easily used in factory production line or embedded into machine system. The IS-DG305-A Series also support some useful function by default for network traffic optimization, such as QoS and storm protection.
