IS-DF308 Series (0/2FX+8/6TX)

Key Features 8 10/100Mb Copper ports Industrial Switch IEEE 802.3x flow control & back-pressure Layer 2 Line-Speed Switching Fabric, non-blocking Multicast / Broadcast / Flooding Storm Control Fan-Less design Wide-temperature range (-40~75ºC) Redundant power input (12~58 VDC) Reverse power protection DIN-Rail or wall mount installation Relay Output Alarm IP 30 Protection 2KV Surge immunity on RJ45 ports 1.5KV Hipot for port isolation Download Datasheet

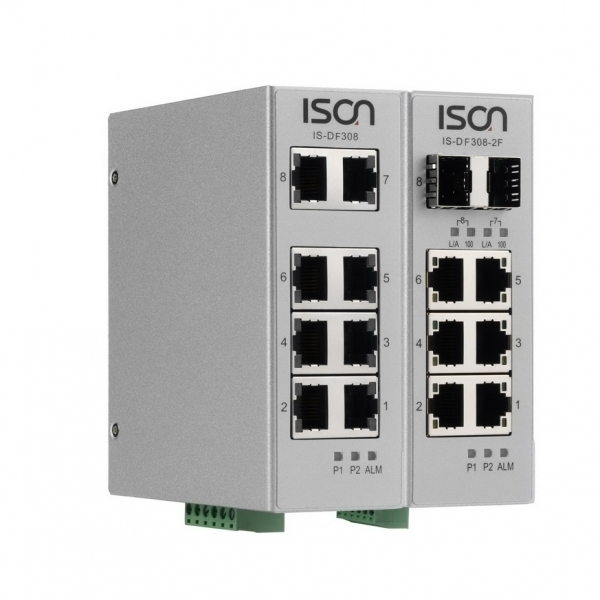

IS-DF308 Series (0/2FX+8/6TX)

8-port Fast Ethernet Layer 2 DIN-Rail Mount Unmanaged Industrial Ethernet Switch

The ISON IS-DF308 series are cost-effective unmanaged Fast Ethernet Switches that provide both copper and fiber connectivity according to field needs. With plug-n-play, easy to use, compact size, the IS-DF308 Series can easily be used in factory production lines, embedded into machine systems or applied for any simple network expansion. The IS-DF308 Series provide default network protection functions such as broadcast storm protection functions which can prevent unexpected traffic flood to the network. The IS-DF308 Series is the perfect solution for general applications and edge site installations.
